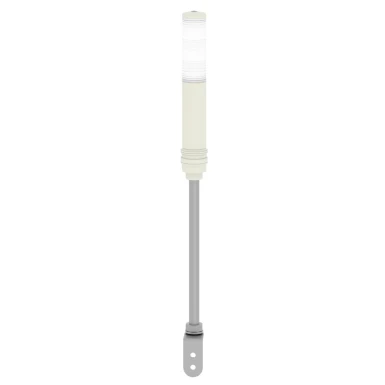

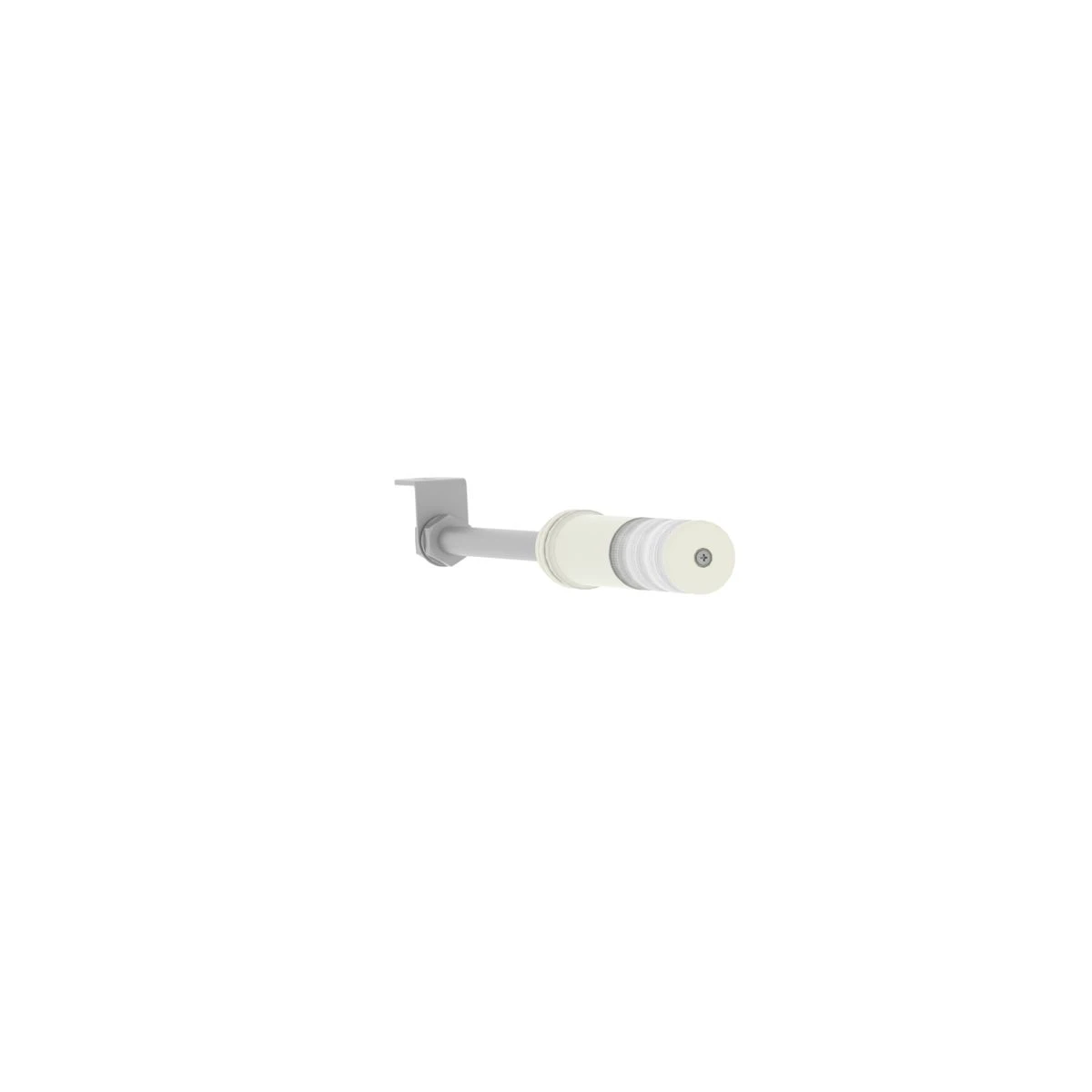

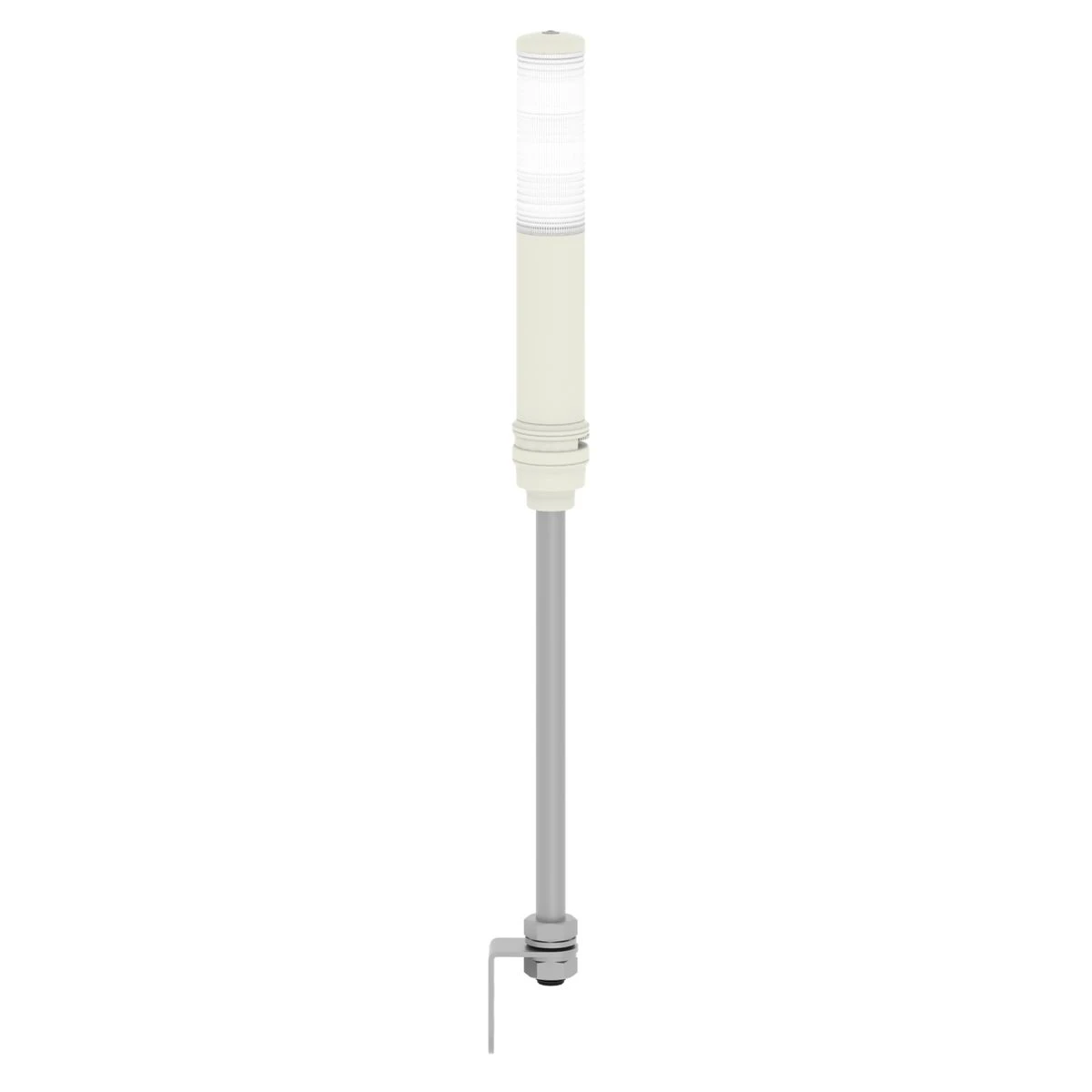

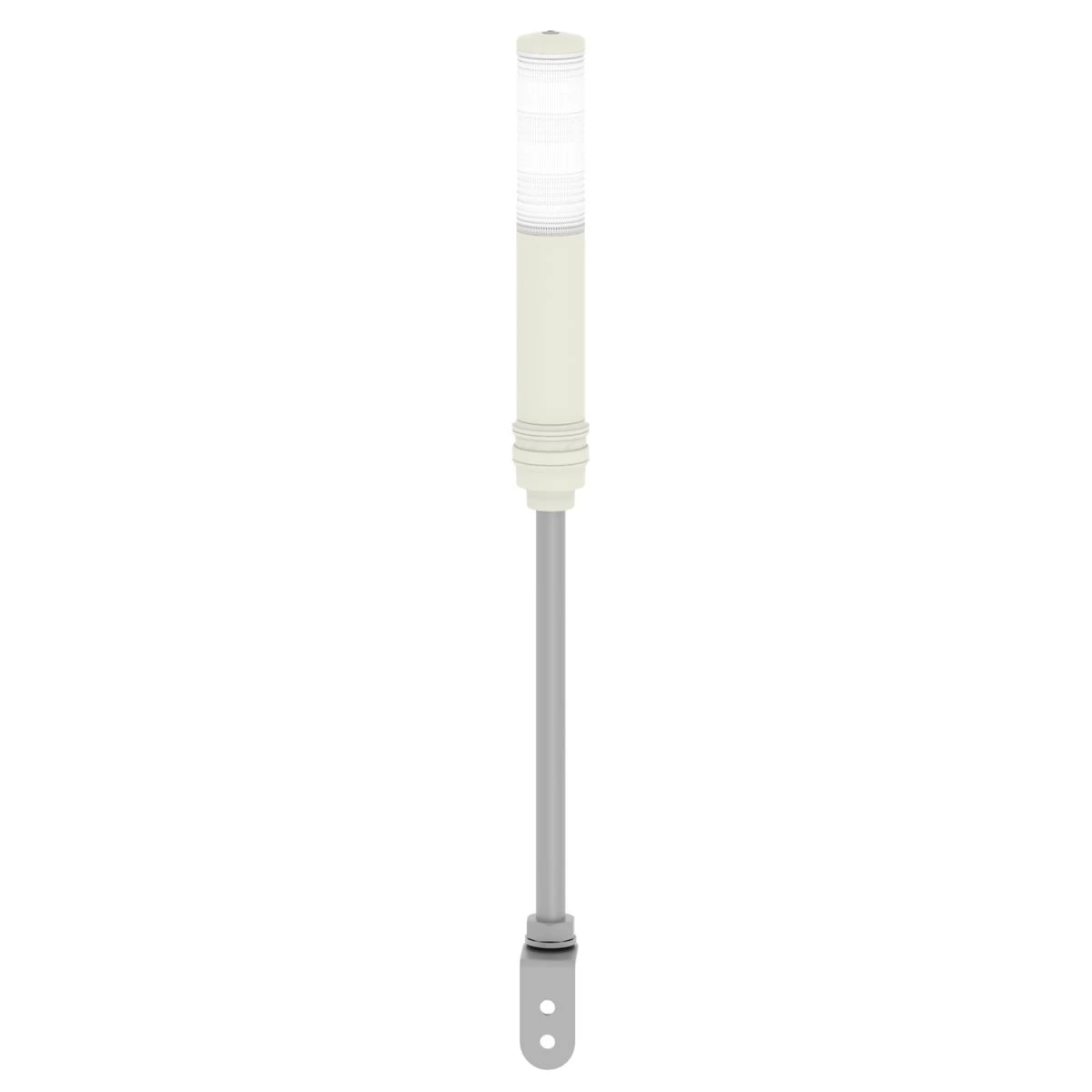

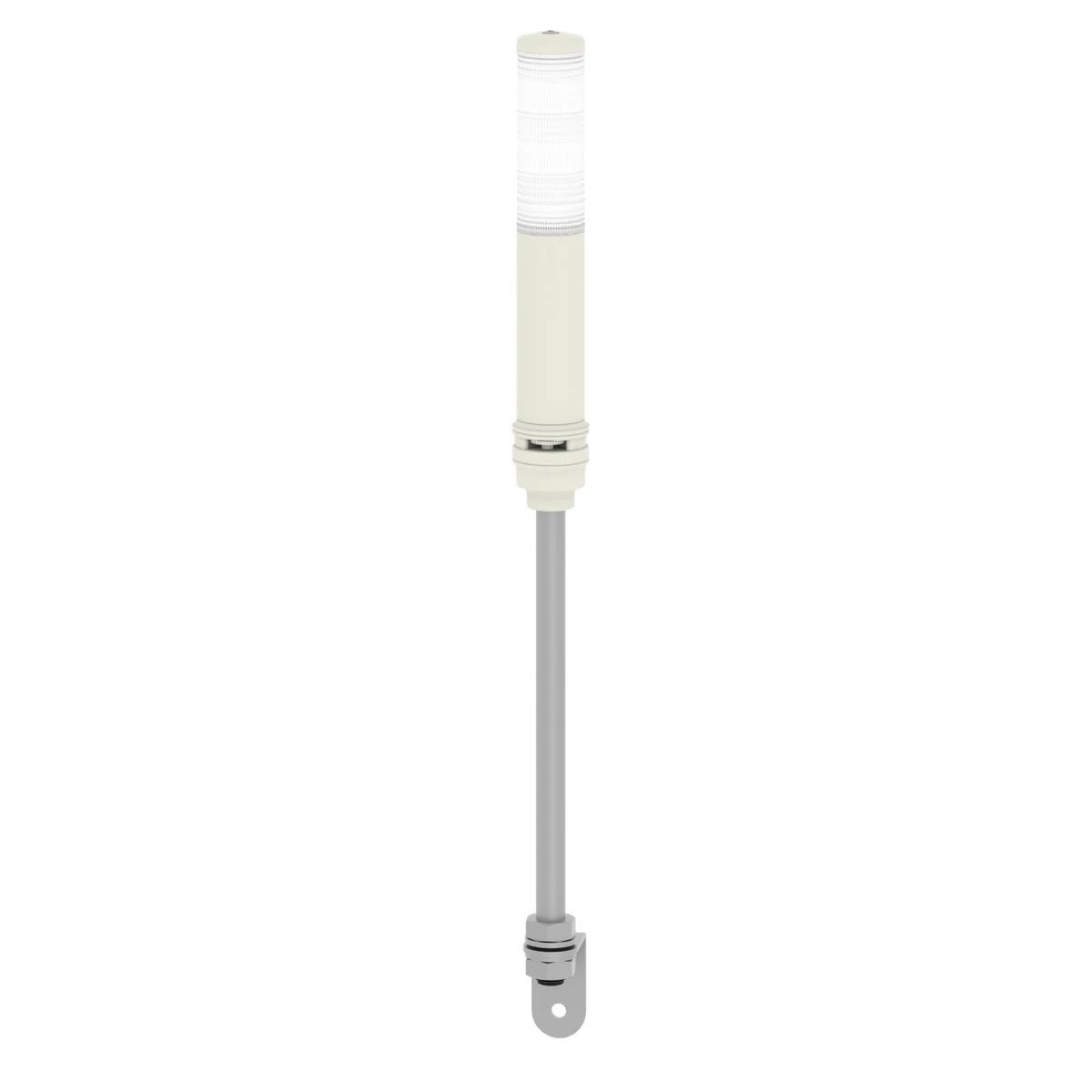

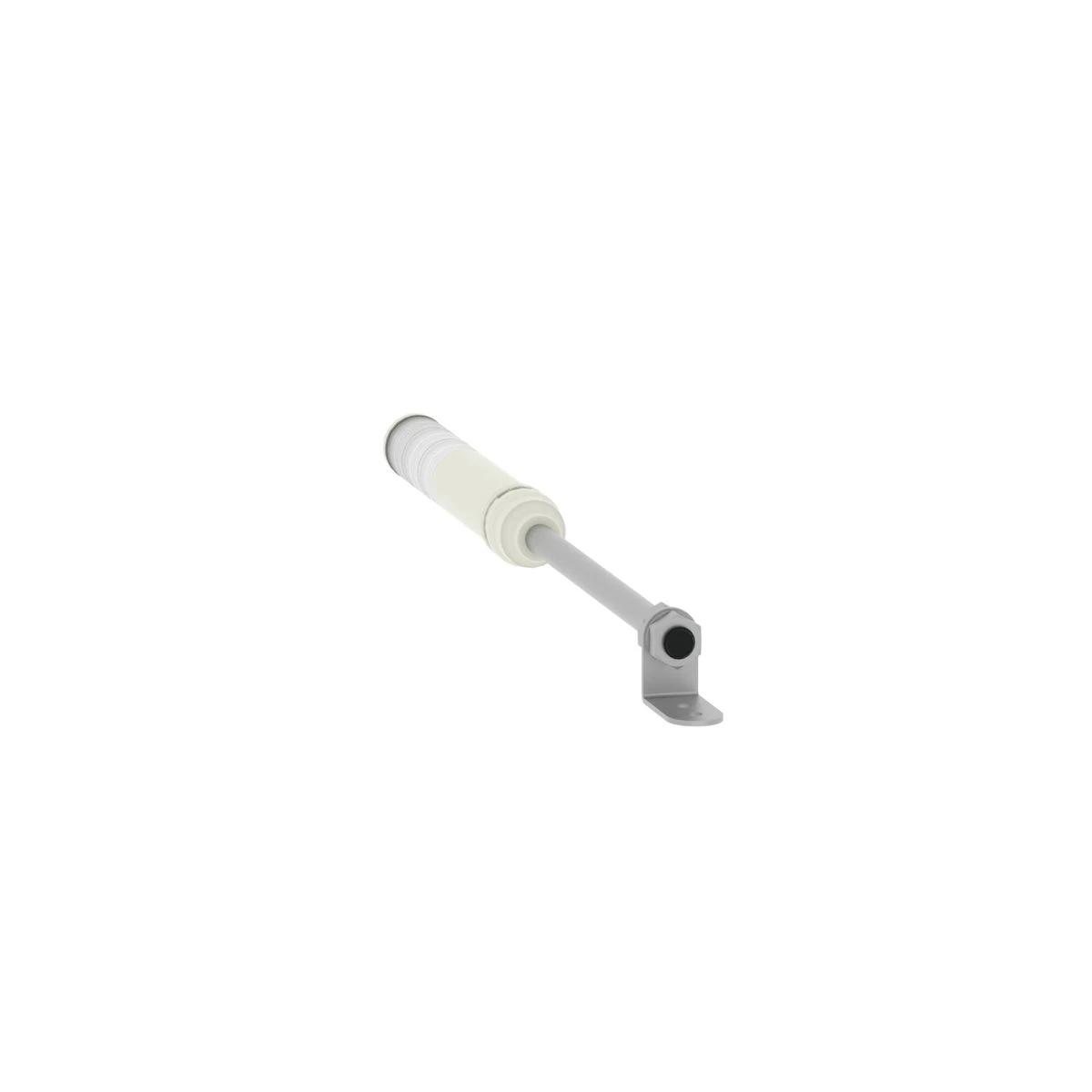

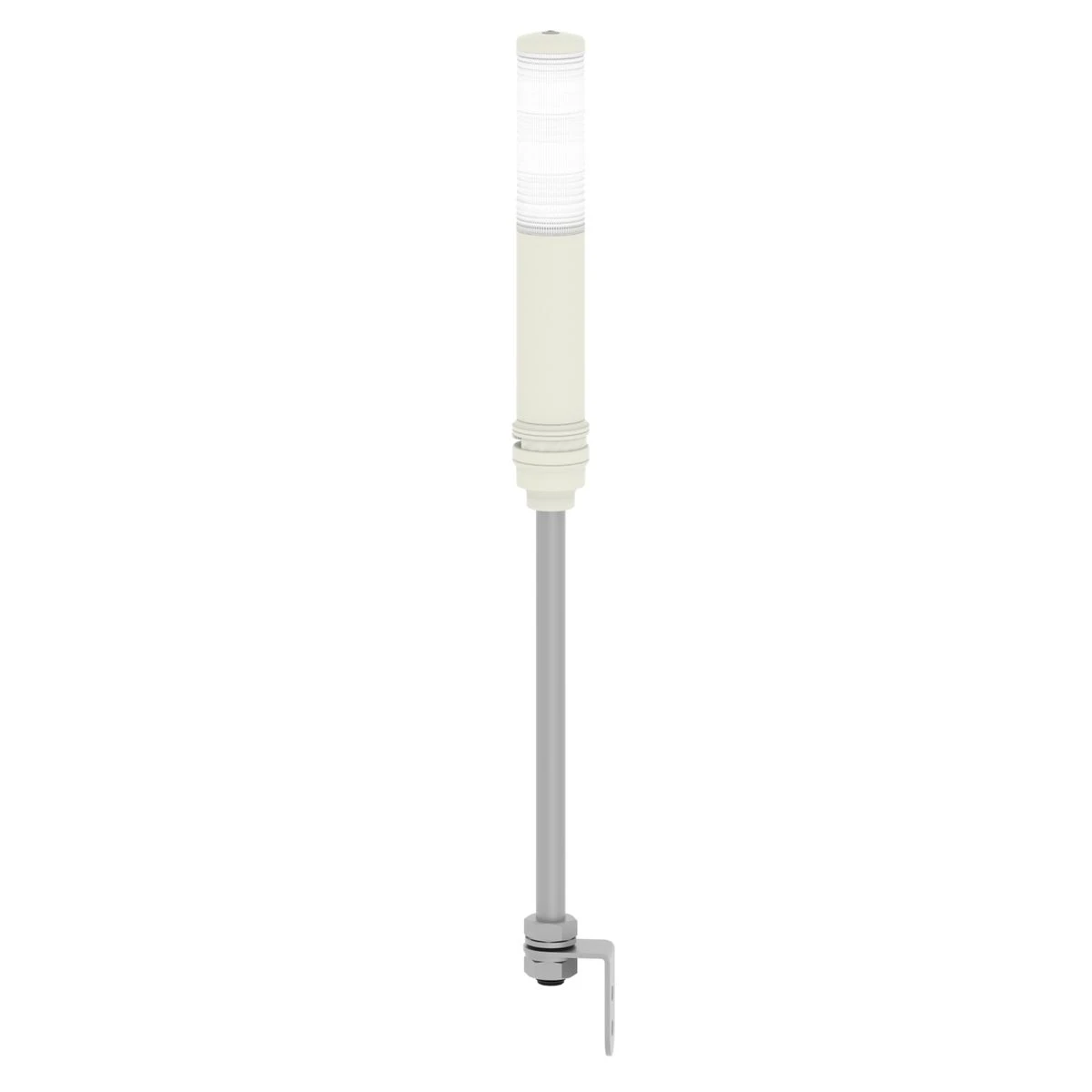

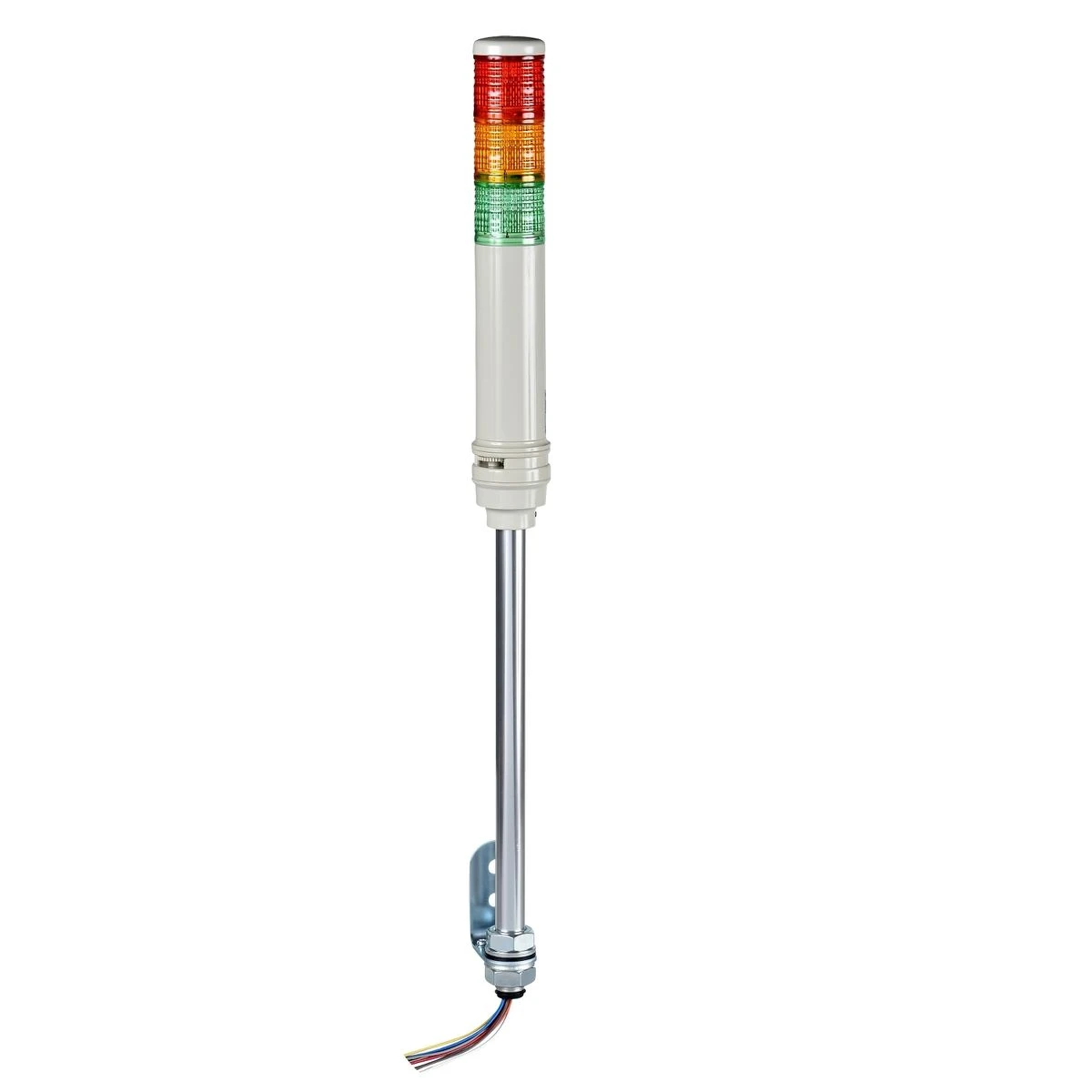

XVC4B35S - Harmony XVC, Monolithic precabled tower light, plastic, red orange green, Ш40, tube mounting, steady or flashing, buzzer, IP23, 24 V AC/DC - Schneider Electric

Expected in 2-4 weeks

XVC4B35S - Harmony XVC, Monolithic precabled tower light, plastic, red orange green, Ш40, tube mounting, steady or flashing, buzzer, IP23, 24 V AC/DC - Schneider Electric

225,83 €

Text About:

Harmony XVC, Monolithic precabled tower light, plastic, red orange green, Ш40, tube mounting, steady or flashing, buzzer, IP23, 24 V AC/DC - Schneider Electric

In cart

225,83 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type 3 illuminated units

Device short name XVC

Sound signalling Buzzer

cable length 900 mm

component name XVC

Complementary

Cable cross section 0.33 mm²

Product certifications UL

fundamental frequency 2.23 kHz

Handle front plate colour 594.5 mm

mounting diameter 40 mm

Product or component type Complete pre-wired monolithic tower light

[uimp] rated impulse withstand voltage 0.8 kV

[us] rated supply voltage 24 V

awg gauge AWG 22

Current consumption 115 mA

mounting location On support tube, 17 mm

Flashing frequency 1 Hz

noise level 70…85 dB (continuous or intermittent tone) at 1 m

Product mounting On support tube, 17 mm

marking CE

Electrical shock protection class Class I conforming to EN/IEC 61140

Material Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94HB): top cover
SGP (chromium-plated): support tube

Net weight 0.64 kg

light source LED steady or flashing red
LED steady or flashing orange
LED steady or flashing green

Supply circuit type AC/DC

Environment

Ambient air temp for storage/transportation -35…70 °C

ip degree of protection IP23 vertical surface installation conforming to EN/IEC 60529

Range of product Harmony XVC4

ambient air temperature for operation -10…50 °C

overvoltage category Class I conforming to EN/IEC 61140

standards EN/IEC 61000-6-2
EN/IEC 61000-6-3

protective treatment TC
