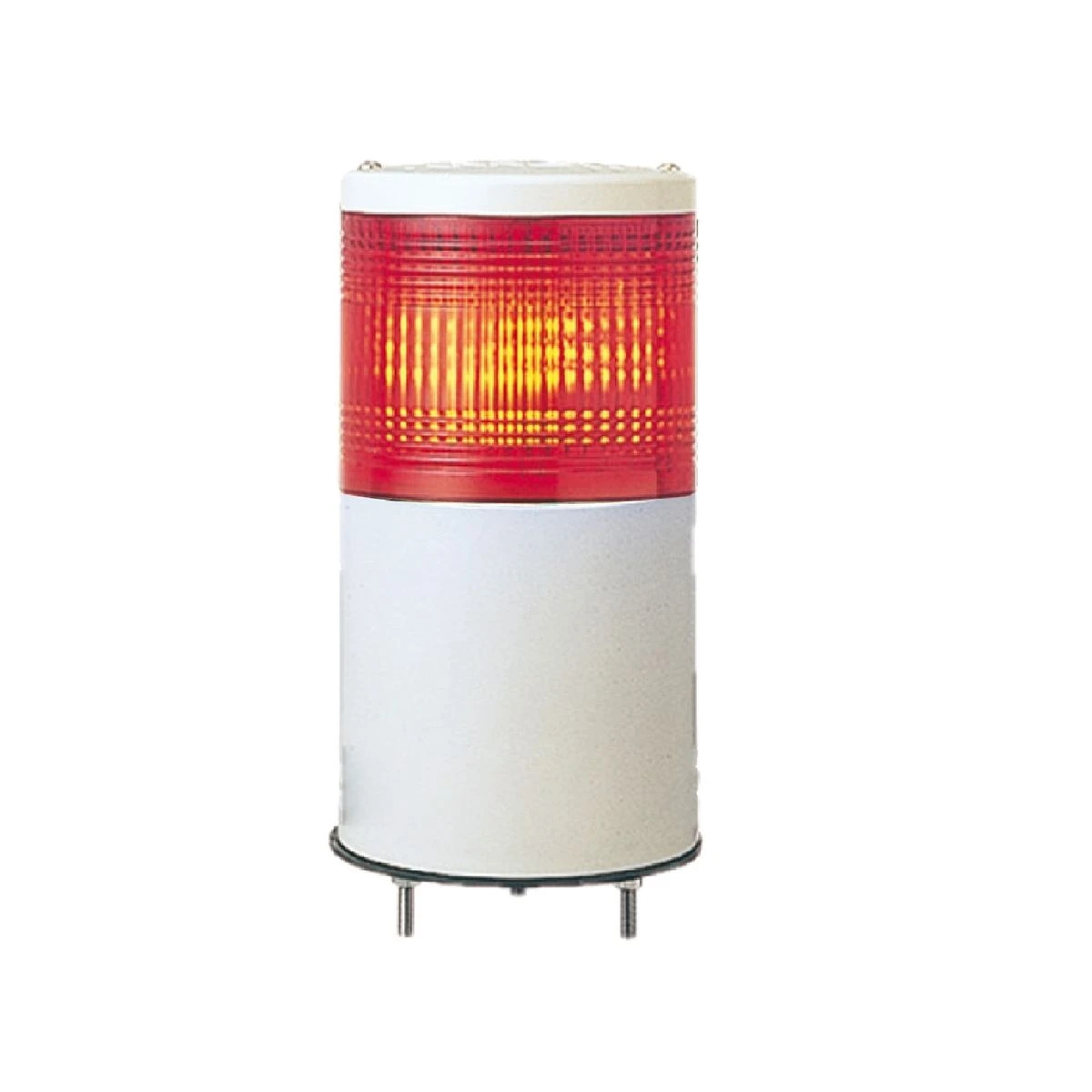

XVC4B1K - Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC - Schneider Electric

Expected in 2-4 weeks

84,91 € excl. VAT

103,59 € incl. VAT

Text About:

Monolithic precabled tower light, Harmony XVC, plastic, red, 40mm, base mounting, steady, IP54, 24V AC DC - Schneider Electric

In cart

103,59 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type 1 illuminated unit

Device short name XVC

Sound signalling Without

cable length 500 mm

component name XVC

Complementary

Cable cross section 0.33 mm²

Product certifications UL

Handle front plate colour 100.5 mm

mounting diameter 40 mm

Product or component type Complete pre-wired monolithic tower light

[uimp] rated impulse withstand voltage 0.8 kV

[us] rated supply voltage 24 V

awg gauge AWG 22

Current consumption 25 mA

mounting location On base

Flashing frequency 1 Hz

Product mounting On base

marking CE

Electrical shock protection class Class II conforming to EN/IEC 61140

Material Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94HB): top cover

Net weight 0.1 kg

light source LED steady red

Supply circuit type AC/DC

Environment

Ambient air temp for storage/transportation -35…70 °C

ip degree of protection IP54 flat surface installation conforming to EN/IEC 60529

Range of product Harmony XVC4

ambient air temperature for operation -10…50 °C

overvoltage category Class II conforming to EN/IEC 61140

standards EN/IEC 61000-6-2
EN/IEC 61000-6-3

protective treatment TC
