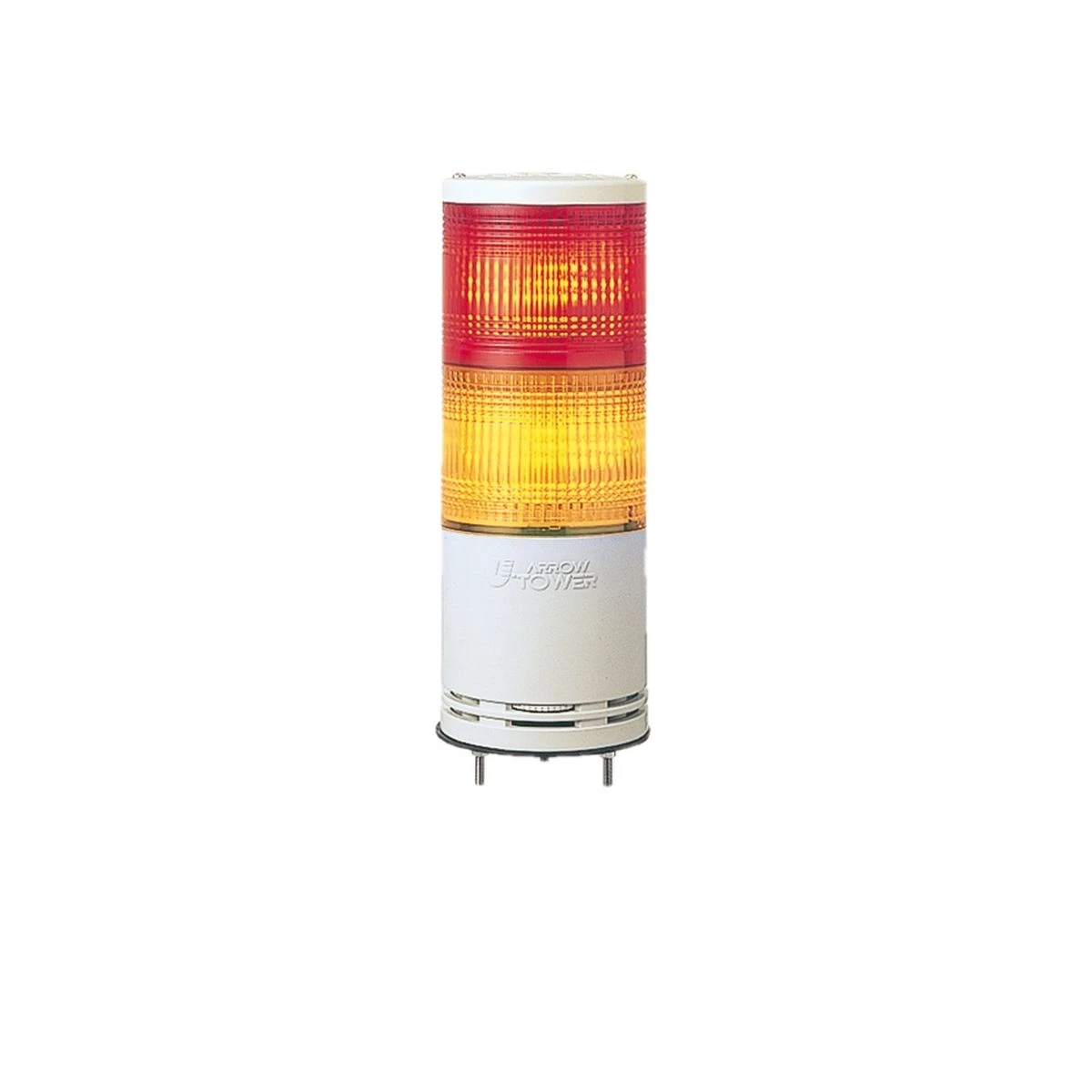

XVC1B2K - Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ш100, base mounting, steady or flashing, IP54, 24 V DC - Schneider Electric

Expected in 2-4 weeks

318,19 € excl. VAT

388,19 € incl. VAT

Text About:

Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ш100, base mounting, steady or flashing, IP54, 24 V DC - Schneider Electric

In cart

388,19 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type 2 illuminated units

Sound signalling Without

cable length 500 mm

component name XVC

Complementary

Cable cross section 0.33 mm²
0.83 mm²

Product certifications UL

Handle front plate colour 294 mm

mounting diameter 100 mm

Product or component type Complete pre-wired monolithic tower light

[uimp] rated impulse withstand voltage 0.8 kV

[us] rated supply voltage 24 V

awg gauge AWG 18
AWG 22

Current consumption 200 mA

Flashing frequency 0.7…3 Hz

Product mounting On base

marking CE

Electrical shock protection class Class II conforming to EN/IEC 61140

Material Polycarbonate: illuminated unit
ABS (acrylonitrile butadiene-styrene): base unit
PBT + ABS (UL94-V0): top cover

Net weight 0.9 kg

light source LED steady or flashing red
LED steady or flashing orange

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -35…70 °C

ip degree of protection IP54 conforming to EN/IEC 60529

Range of product Harmony XVC1

ambient air temperature for operation -30…50 °C

standards EN/IEC 61000-6-2
EN/IEC 61000-6-3
EN/IEC 61000-6-4

protective treatment TC
