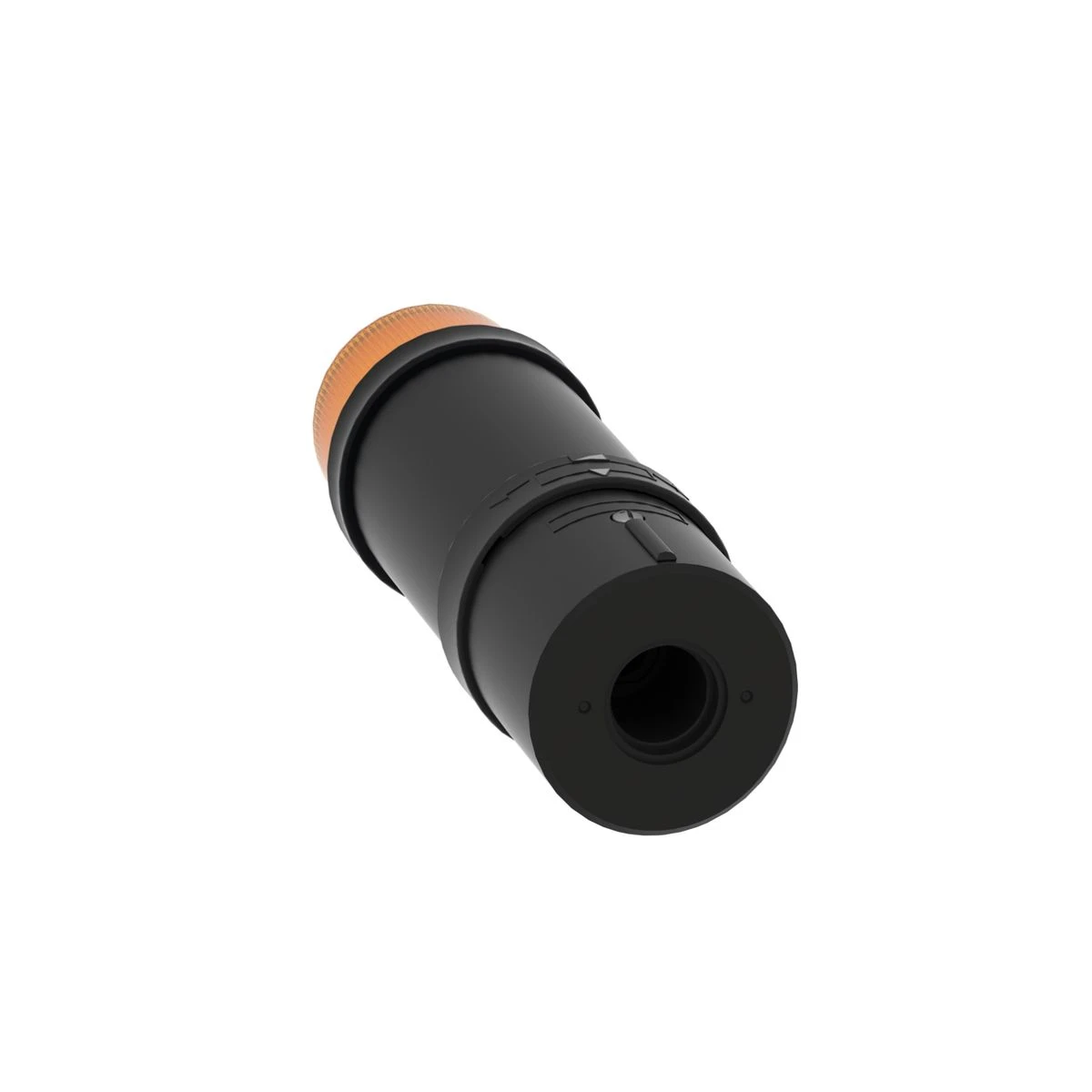

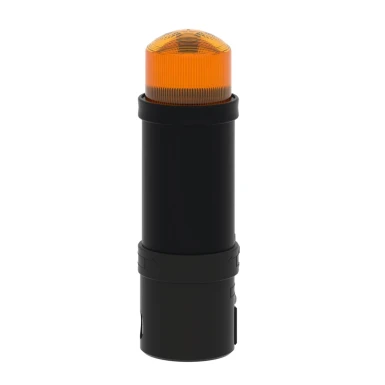

XVBL6B5 - Illuminated beacon, Harmony XVB, plastic, orange, 70mm, flashing, integral flash discharge tube, 5 joule, 24V AC DC - Schneider Electric

Expected in 2-4 weeks

170,53 € excl. VAT

208,05 € incl. VAT

Text About:

Illuminated beacon, Harmony XVB, plastic, orange, 70mm, flashing, integral flash discharge tube, 5 joule, 24V AC DC - Schneider Electric

In cart

208,05 €

SPECIFICATIONS

Main

Beacon or indicator bank unit type Base unit direct or tube fixing
Illuminated unit

flash energy 5 J

[ui] rated insulation voltage 250 V conforming to IEC 60947-1

component name XVBL

Complementary

Bulb type Flash discharge tube

Product certifications CCC
EAC
CSA C22-2 No 14
UL 508

mounting diameter 70 mm

Product or component type Complete beacon

[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1

[us] rated supply voltage 24 V AC/DC

Current consumption < 350 mA DC
< 550 mA AC

nema degree of protection Type 4X conforming to UL (indoor)

Connections - terminals Screw clamp terminals, <= 1 x 1.5 mm² with cable end

Flashing frequency 1 Hz

Cad overall depth 70 mm

Cad overall height 232 mm

Electrical shock protection class Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140

Cad overall width 70 mm

Material Glass reinforced polyamide: base unit
Polycarbonate: illuminated unit

Signalling type Flashing

Net weight 0.44 kg

Nominal voltage limit 0.85...1.1 Un conforming to IEC 60947-5-1

light source Integral flash discharge tube, orange

Terminals description iso n°1 (GND)GROUND
(COM-1)PW

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529

Range of product Harmony XVB Universal

standards EN/IEC 60947-5-1

protective treatment TC
