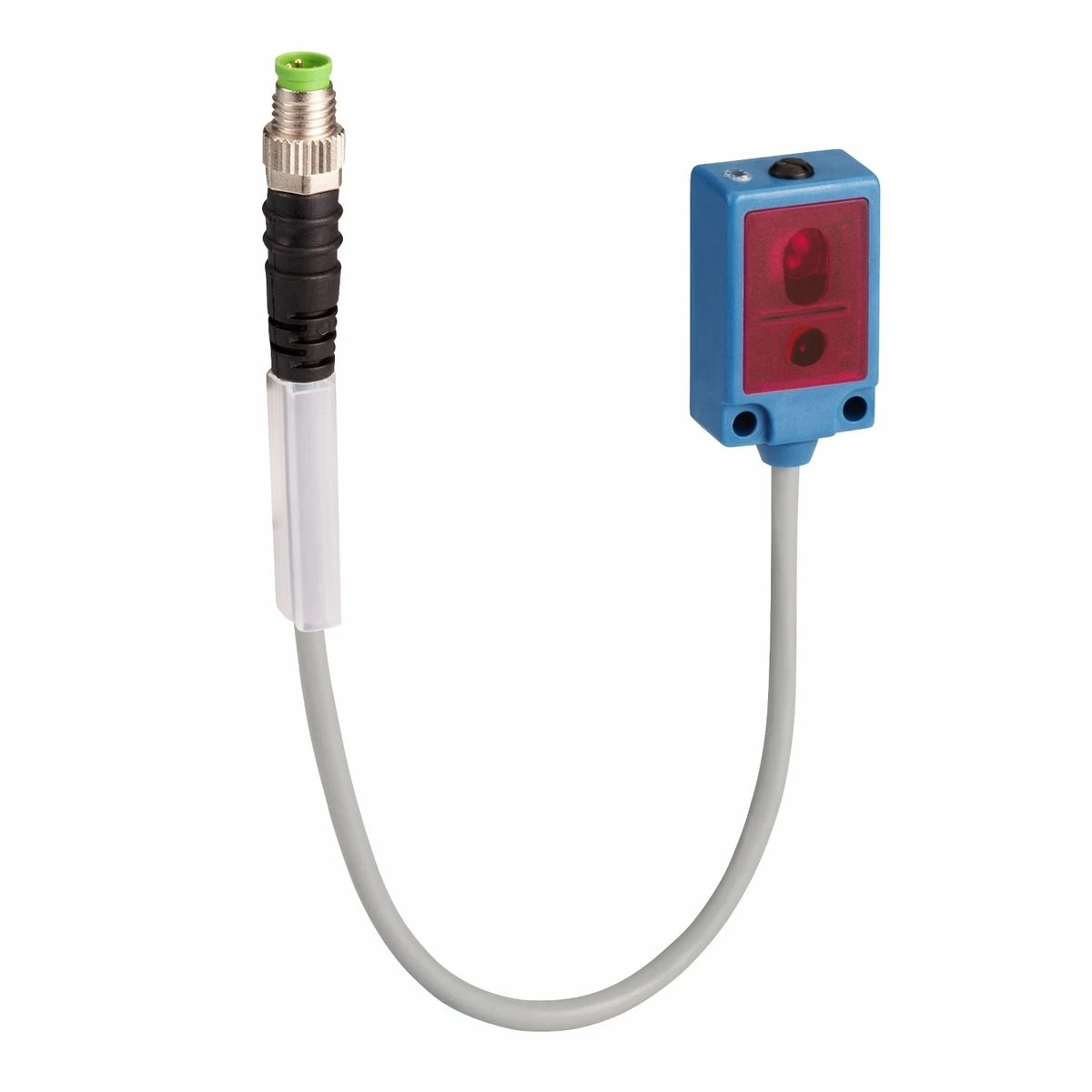

XUYPSCO989SN - Photoelectric sensors XU, XUY 989, BGS, Sn 0.08 m, 12...24 VDC, M8 - Schneider Electric

Expected in 2-4 weeks

233,50 € excl. VAT

284,87 € incl. VAT

Text About:

Photoelectric sensors XU, XUY 989, BGS, Sn 0.08 m, 12...24 VDC, M8 - Schneider Electric

In cart

284,87 €

SPECIFICATIONS

Main

product specific application Conveyor system and access control series

Series name Application

sensor name XUY

detection system Diffuse with background suppression

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 1 m polarised reflex
4 m thru beam
0.08 m diffuse with background suppression
0.25 m diffuse with adjustable sensitivity

Product certifications cULus
CE

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption < 25 mA no-load

maximum voltage drop <2 V at 100 mA (closed state)
<1 V at 10 mA (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material ABS

lens material PMMA

Material Plastic

supply voltage limits 10…30 V DC

switching frequency 500 Hz

Net weight 0.044 kg

Discrete output type NPN

switching capacity in ma 100 mA (overload and short-circuit protection)

cover material PUR

Maximum delay response 1 ms

electrical connection 1 male connector M8, 4 pins

Pulse frequency 6 kHz

Sensor design Miniature

Wiring technique 4-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -20…80 °C

Emission Red LED, pulsed

ip degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation 0…50 °C
