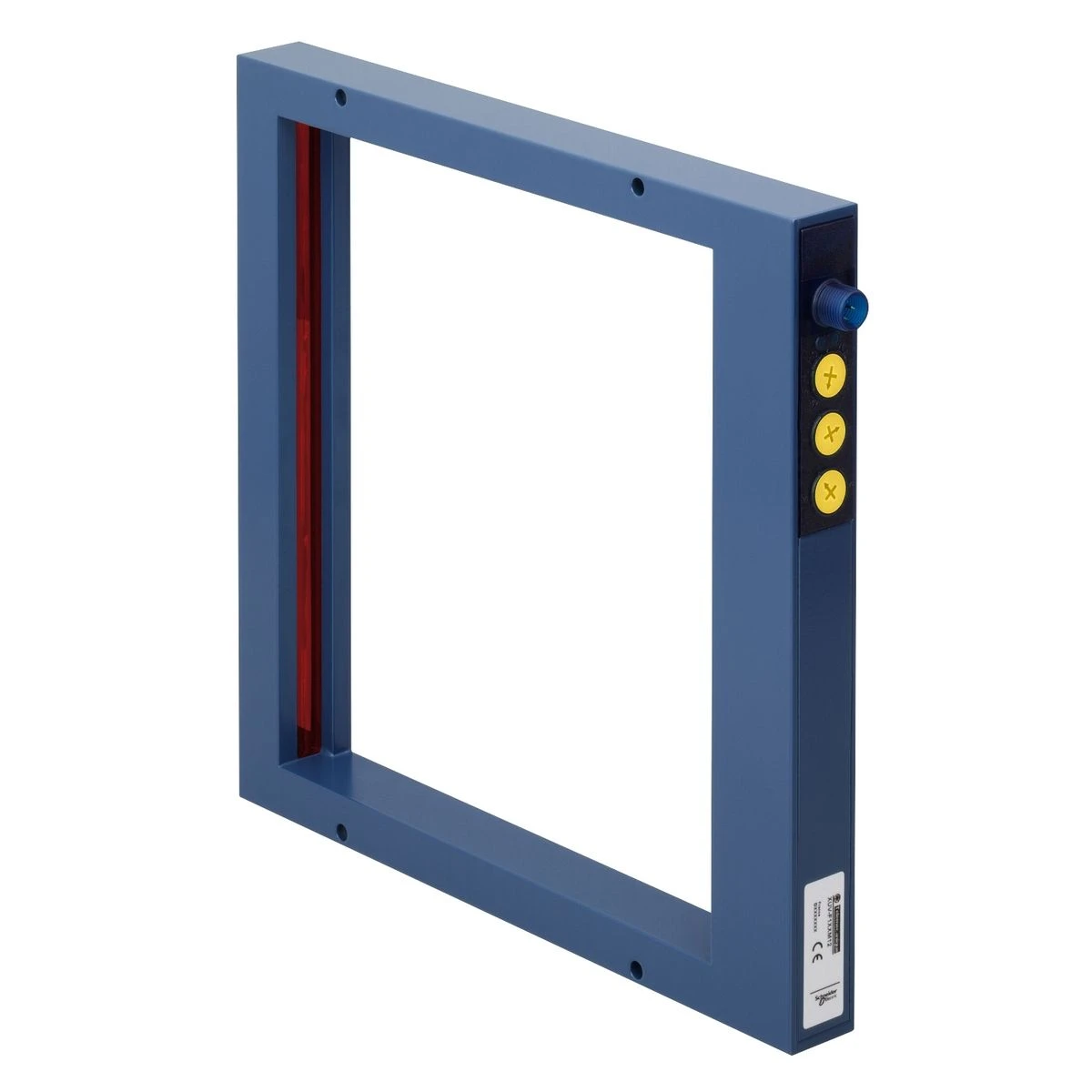

XUYFRS180S - Photoelectric sensors XU, XUV, frame, 200X180mm, 12...24 VDC, M12 - Schneider Electric

Expected in 2-4 weeks

848,11 € excl. VAT

1 034,69 € incl. VAT

Text About:

Photoelectric sensors XU, XUV, frame, 200X180mm, 12...24 VDC, M12 - Schneider Electric

In cart

1 034,69 €

SPECIFICATIONS

Main

product specific application Dynamic detection of passage of objects
Static detection of passage of objects

Way dimensions of optical frame 200 x 180 mm

Series name Application material handling

sensor name XUY

detection system Thru beam

electronic sensor type Photo-electric sensor

Complementary

Product certifications CE
cULus

Handle front plate colour 230 mm

[us] rated supply voltage 24 V DC with reverse polarity protection

Current consumption <= 150 mA no-load

maximum voltage drop <2 V (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material Painted aluminium

lens material Altuglass

Material Metal

width (w) 265 mm

supply voltage limits 18…30 V DC

switching frequency > 5000 Hz

Net weight 1.2 kg

Discrete output type PNP or NPN

Maximum delay first up 100 ms

Maximum delay recovery 0.1 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

depth 25 mm

Time delay range 0...5 s off-delay delay

electrical connection 1 male connector M12, 4 pins

Minimum object diameter for detection Dynamic mode: 10 mm (0.1…70 m/s)
Static mode: 15 mm

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Sensitivity adjustment with potentiometer

Sensor design Frame

Status led Alarm: 1 LED (red)
Output state: 1 LED (amber)

Wiring technique 4-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -20…80 °C

Emission Infrared

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation 0…60 °C

Immunity to ambient light 3000 lux incandescent bulb
10000 lux natural light

vibration resistance 25 gn, amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
