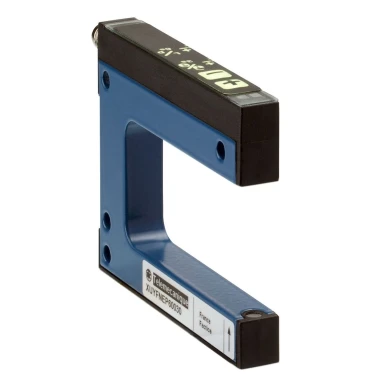

XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - Schneider Electric

Expected in 2-4 weeks
XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - Schneider Electric - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - Schneider Electric - 0
XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - Schneider Electric
223,82 € excl. VAT
277,53 € incl. VAT
Text About:
Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - Schneider Electric
277,53 €
SPECIFICATIONS
Main
Passage depth 42 mm
Passage width 30 mm
product specific application Detection of labels
Detection of reference marks
Detection on vibrating rail
Detection of double sheet
Detection on small conveyor
Series name Application
sensor name XUY
detection system Thru beam
electronic sensor type Photo-electric sensor
Complementary
[sn] nominal sensing distance 30 mm
Product certifications CE
cULus
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption 40 mA no-load
maximum voltage drop <2 V (closed state)
Output type Solid state
Discrete output function 1 NO or 1 NC programmable
Enclosure material Painted aluminium and polyamide/glass
Material Metal/plastic
supply voltage limits 10…30 V DC
switching frequency 10 kHz
Keypad type Green
Net weight 0.19 kg
Discrete output type PNP and NPN
switching capacity in ma 100 mA (overload and short-circuit protection)
electrical connection 1 male connector M8, 4 pins
Load capacitance 330 nF
Minimum object diameter for detection 0.2 mm
Time response -20…20 µs
Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up Sensitivity by numeric potentiometer
Sensor design Fork
Status led Adjustment mode and keypad locking: 1 LED (red)
Output state: 1 LED (yellow)
Wiring technique 4-wire
Type of output signal Discrete
Supply circuit type DC
Environment
Ambient air temp for storage/transportation -30…80 °C
Emission Infrared LED, modulated
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Photoelectric sensors XU
ambient air temperature for operation -20…60 °C
Immunity to ambient light 10000 lux natural light
5000 lux incandescent bulb
vibration resistance 7 gn, amplitude = +/- 0.75 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 is devised to respond to the requirements of industry experts, such as panel manufacturers, circuit experts, service providers, and manufacturing originators. XUYFNEP40030 presents extraordinary capability and beneficence for consultants in the power management industry. This Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 and other Photoelectric Sensors XU from Schneider Electric can be acquired at the finest pricing and distribution time through baltelec.eu, a reliable provider supporting industry experts in their sourcing needs.

Patrons who have used Schneider Electric Photoelectric Sensors XU have invariably lauded the maker's reliability. It has been highlighted that the superior effectiveness of XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 extends to a wide range of implementations. Its first-rate components make it suitable for multiple purposes, assuring the success of your industrial, tertiary, and automation ventures.

BALTELEC commits in providing for industrial and tertiary professionals’ needs. We comprehend the specific criteria and desires of our customers in the niche. By collaborating with our experts, your team access access to the optimal pricing and inventory of excellent products like XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 from Schneider Electric at the most competitive price. Registered users receive exclusive discounts and priority service.

Take action and procure XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 at our reliable and straightforward online store. Don't delay in making this wise action that affirms the greatest quality and caters to the specific specifications of buyers like your group.

Should there be any concerns or concerns about XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 or any other Schneider Electric products, call us or refer to our Help section section below. We have brought together answers to popular uncertainties to guide you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, XUYFNEP40030 - Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 from Schneider Electric is credible, affordable, and elite to its rivals in the Photoelectric Sensors XU category. Make it a part of your installation instantly. Obtain at Baltelec webstore, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will identify Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 - XUYFNEP40030 worth 273.06 €, which will be a faithful and contemporary solution for your preferences. This article is engineered by the Schneider Electric brand using the current technologies and conforms to the peak standards of well-being and effectiveness. We propose merchandise from the Photoelectric Sensors XU category that combine strength and functionality, which is an superb election for various operations. Without consideration of whether you desire apparatus for small assembly or for experienced industrial application, Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 will be a constant helper in your project.

Baltelec aims to make the buying process as simple and fast as possible for our patrons. We offer detailed accounts and high-quality photographs of Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 so that you can make an well-informed choice. A team of authorities is always ready to help you with any doubts in the Photoelectric Sensors XU section involved to the picking and use of merchandise. We are convinced that Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8 will meet your demands and become an crucial element of your machinery for just 273.06 €.

Frequently Raised Questions about Schneider Electric Photoelectric sensors XU, XUY, fork, pot +/, 30X42mm, 12...24 VDC, M8:
