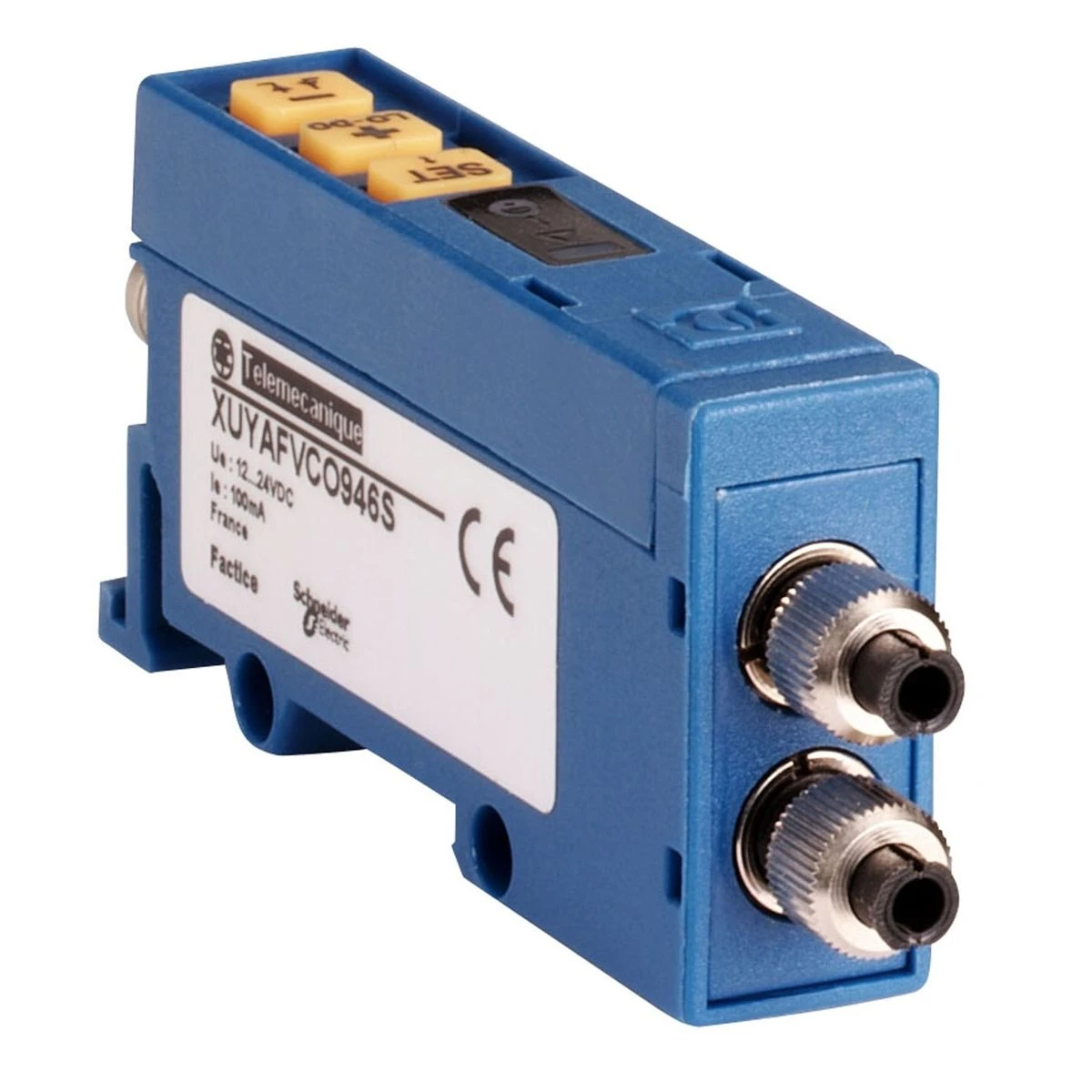

XUYAFVDO2946S - Photoelectric sensors XU, XUY, ampli for fibre, 24 VDC - Schneider Electric

Upon request only

Text About:

Photoelectric sensors XU, XUY, ampli for fibre, 24 VDC - Schneider Electric

SPECIFICATIONS

Main

Specific application of photoelectric detector Detection of little marks and coloured tags
Sorting out of coloured parts
Detection of translucent coloured parts
Quality control of lids colour or presence of labels
Detection of coloured wires
Detection of one to four colours

Series name Application

sensor name XUY

electronic sensor type Photo-electric sensor

Complementary

Product certifications CE
cULus

[us] rated supply voltage 24 V DC with reverse polarity protection

Current consumption 120 mA no-load

maximum voltage drop <2.2 V at 100 mA
<0.5 V at 10 mA

Enclosure material Polycarbonate strong housing

Material Plastic

supply voltage limits 21.6…26.4 V DC

switching frequency 25 Hz
500 Hz

voltage state 1 guaranteed > 3 V

Maximum delay recovery 1 ms XUYFPCF.
20 ms XUYFPCP.

switching capacity in ma 100 mA (overload and short-circuit protection)

Maximum delay response 1 ms for XUYFPCF.
20 ms for XUYFPCP.

voltage state 0 guaranteed < 1.4 V

Setting-up Sensitivity adjustment with teach mode

Sensor design Fiber design

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -20…60 °C

ip degree of protection IP65

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation 0…40 °C

Immunity to ambient light 3000 lux incandescent bulb
5000 lux natural light
