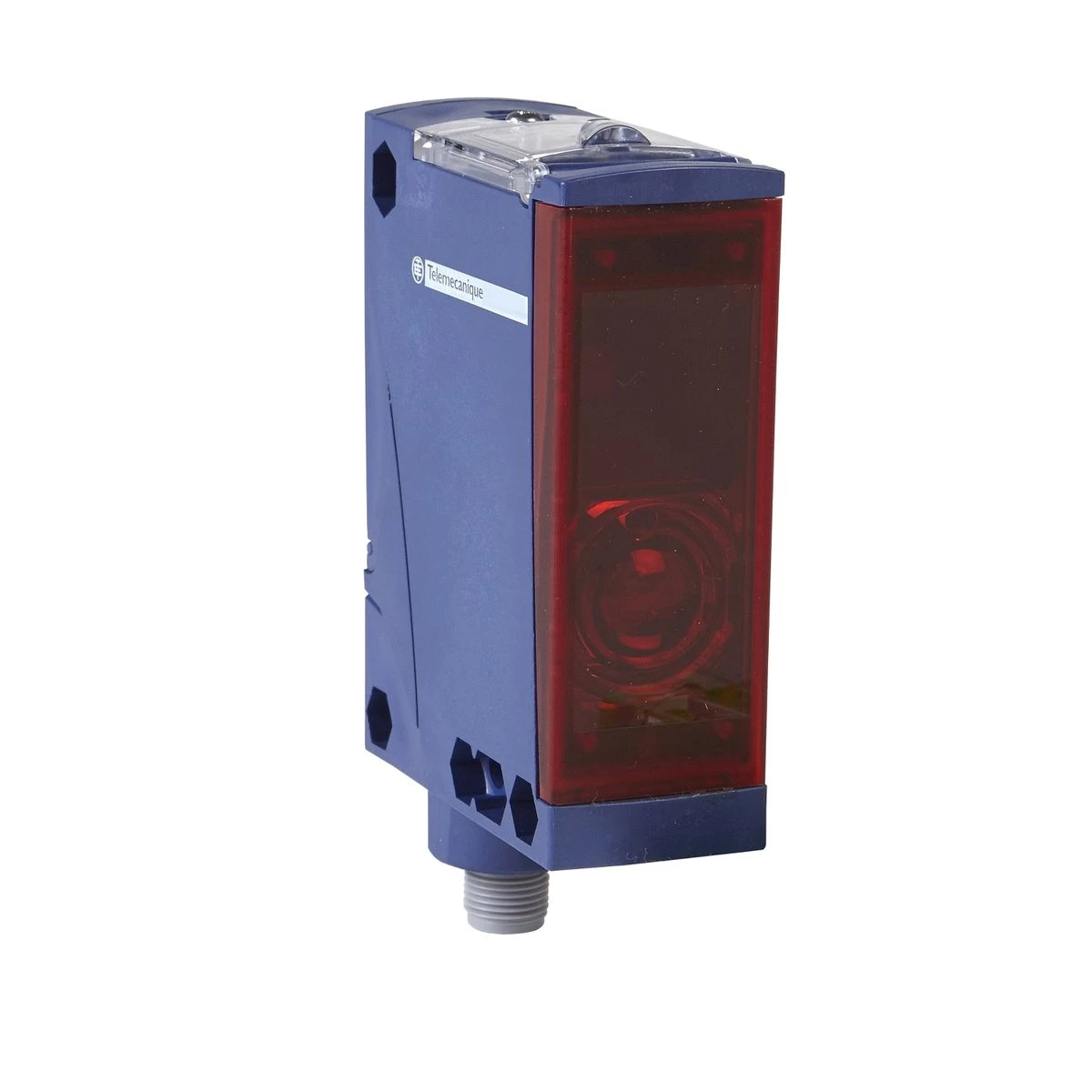

XUX8AKSAM12 - Photoelectric sensors XU, XUX, BGS, Sn 2 m, 12...24 VDC, M12 - Schneider Electric

Expected in 2-4 weeks

166,81 € excl. VAT

203,51 € incl. VAT

Text About:

Photoelectric sensors XU, XUX, BGS, Sn 2 m, 12...24 VDC, M12 - Schneider Electric

In cart

203,51 €

SPECIFICATIONS

Main

product specific application Long sensing distance with high accuracy

Series name General purpose single mode

sensor name XUX

detection system Diffuse with background suppression

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 2 m

Product certifications CE
CSA
UL

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption 35 mA no-load

maximum voltage drop <1.5 V (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material PC

lens material PMMA

Material Plastic

supply voltage limits 10…36 V DC

switching frequency 150 Hz

Net weight 0.2 kg

Discrete output type PNP or NPN

Maximum delay first up 200 ms

Maximum delay recovery 2.5 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

Maximum delay response 3.5 ms

electrical connection 1 male connector M12, 4 pins

Shock resistance 10 gn (duration = 11 ms) conforming to IEC 60068-2-27

Sensor design Compact 92 x 71

Status led Supply on: 1 LED (green)
Instability: 1 LED (red)
Output state: 1 LED (yellow)

Wiring technique 3-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Infrared

ip degree of protection IP30 conforming to IEC 60529 (with cover open)
IP65 conforming to IEC 60529 (double insulation)
IP67 conforming to IEC 60529 (double insulation)

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn (f = 10…55 Hz) conforming to IEC 60068-2-6
