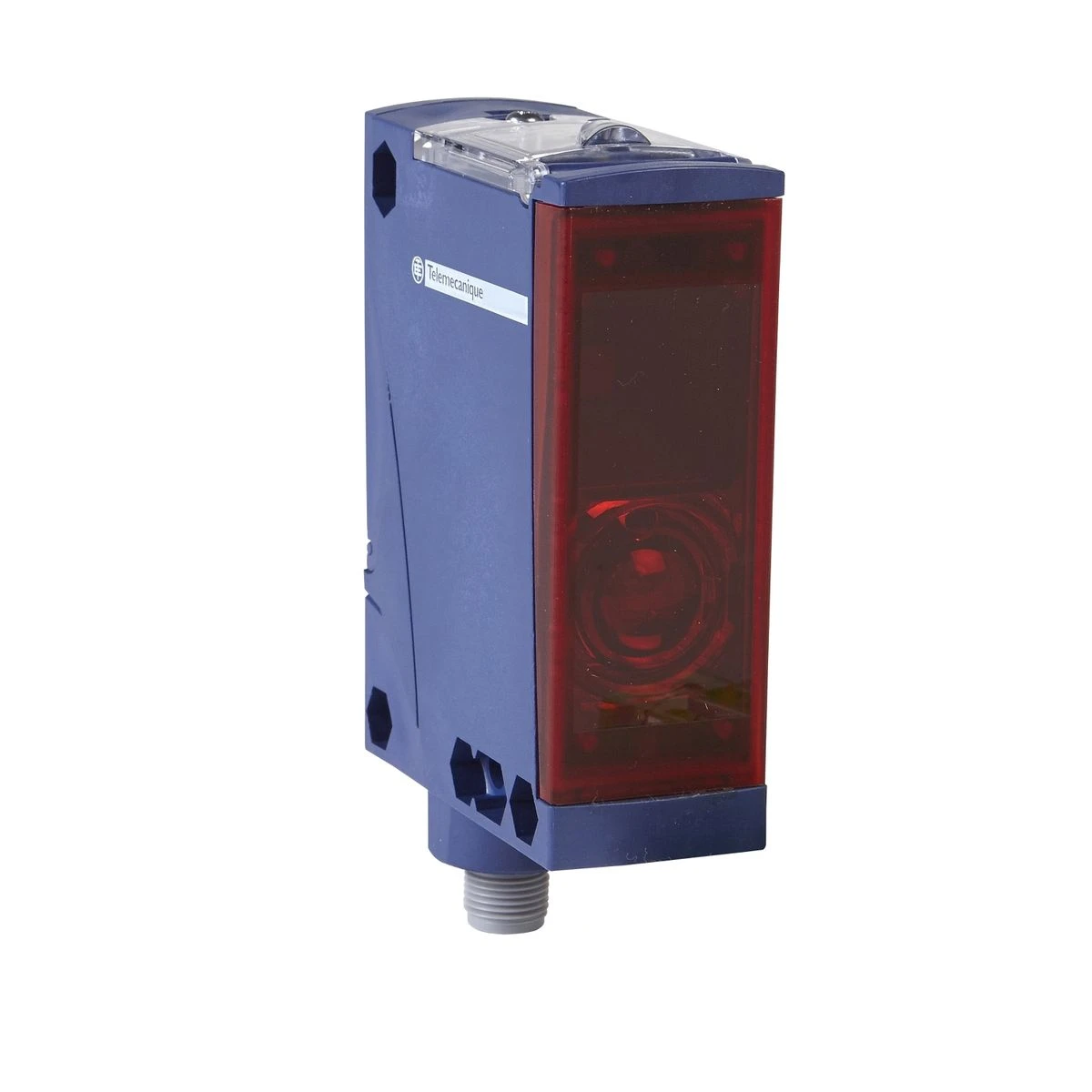

XUX5ANANM12 - Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 12...24 VDC, M12 - Schneider Electric

Upon request only

Text About:

Photoelectric sensors XU, XUX, diffuse, Sn 2.1 m, 12...24 VDC, M12 - Schneider Electric

SPECIFICATIONS

Main

product specific application -

Series name General purpose single mode

sensor name XUX

detection system Diffuse

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 2.1 m diffuse

Product certifications CSA
CE
UL

Handle front plate colour 92 mm

[us] rated supply voltage 12...24 V DC

Current consumption <= 35 mA no-load

maximum voltage drop <1.5 V (closed state)

Output type Solid state

Discrete output function 1 NO

Enclosure material PBT

lens material PMMA

Material Plastic

width (w) 31 mm

switching frequency <= 250 Hz

Net weight 0.2 kg

Discrete output type NPN

Maximum delay first up 15 ms

Maximum delay recovery 2 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

depth 77 mm

Maximum delay response 2 ms

Maximum sensing distance 3 m diffuse

electrical connection 1 male connector M12, 4 pins

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Sensitivity adjustment

Sensor design Compact 92 x 71

Status led 1 LED (yellow) for output state
1 LED (green) for supply

Wiring technique 3-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Infrared diffuse

ip degree of protection IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
