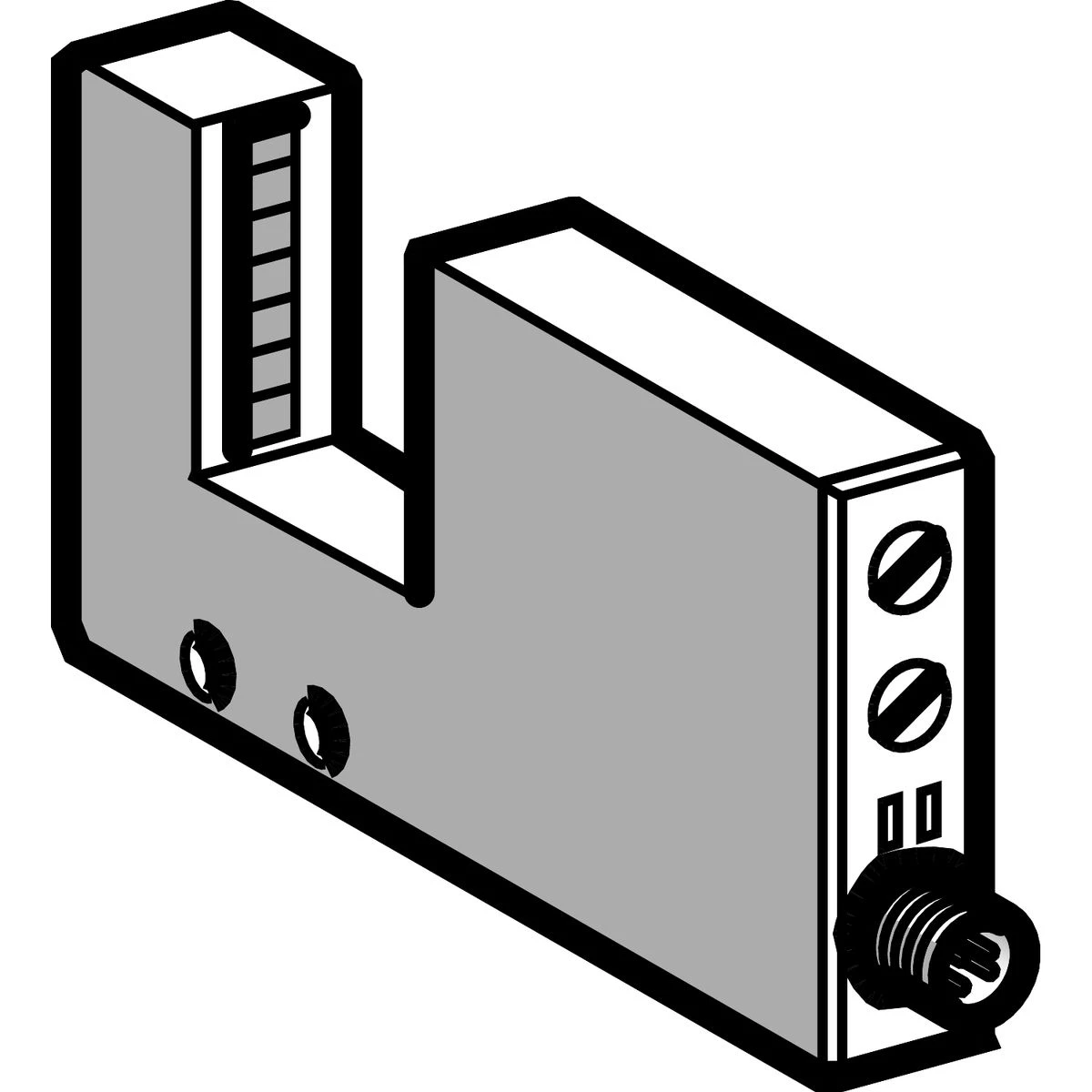

XUVF30M8 - Photoelectric sensors XU, XUV, frame, 30X30mm, 12...24 VDC, M8 - Schneider Electric

Expected in 2-4 weeks

643,22 €

Text About:

Photoelectric sensors XU, XUV, frame, 30X30mm, 12...24 VDC, M8 - Schneider Electric

In cart

643,22 €

SPECIFICATIONS

Main

product specific application Dynamic detection of passage of objects

Way dimensions of optical frame 30 x 30 mm

Series name Application material handling

sensor name XUV

detection system Thru beam

electronic sensor type Photo-electric sensor

Complementary

Product certifications CE
cULus

Add on output With alarm output

Handle front plate colour 50 mm

[us] rated supply voltage 24 V DC with reverse polarity protection

Current consumption <= 120 mA no-load

maximum voltage drop <2 V (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material Painted aluminium

lens material Polycarbonate

Material Metal

width (w) 108 mm

supply voltage limits 18…30 V DC

switching frequency <= 500 Hz

Net weight 0.08 kg

Discrete output type PNP or NPN

Maximum delay first up 100 ms

Maximum delay recovery 1 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

depth 15 mm

Time delay range 0...5 s off-delay delay

electrical connection 1 male connector M8, 4 pins

Minimum object diameter for detection Dynamic mode: 2 mm (0.1…15 m/s)

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Sensitivity adjustment with potentiometer

Sensor design Frame

Status led Alarm: 1 LED (red)
Output state: 1 LED (amber)

Wiring technique 4-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -20…80 °C

Emission Infrared

ip degree of protection IP65 conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation 0…60 °C

Immunity to ambient light 400 lux incandescent light
4000 lux sunlight

vibration resistance 25 gn, amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
