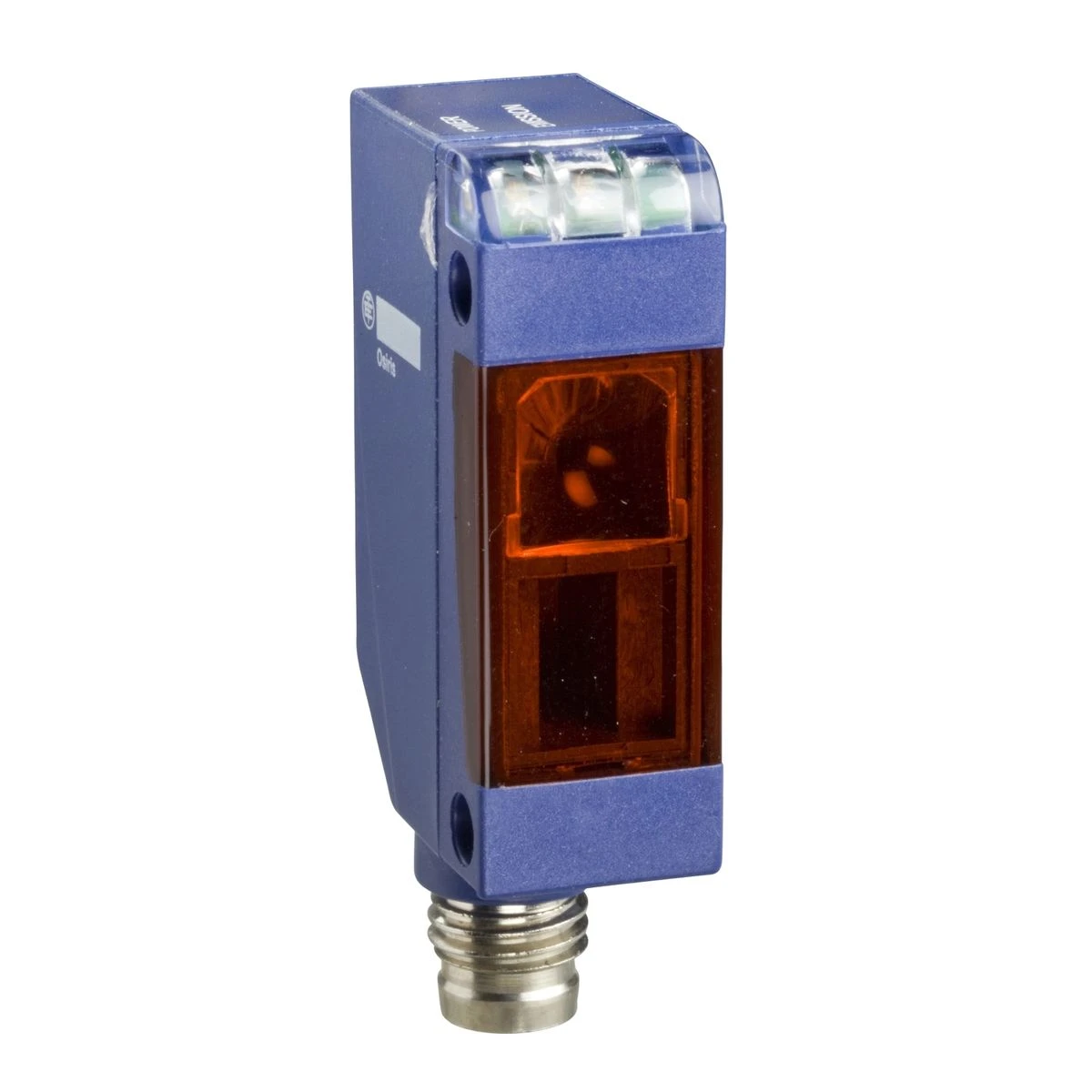

XUM0ANSAM8 - Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8 - Schneider Electric

Expected in 2-4 weeks

157,08 € excl. VAT

191,64 € incl. VAT

Text About:

Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8 - Schneider Electric

In cart

191,64 €

SPECIFICATIONS

Main

product specific application -

Series name General purpose multimode

sensor name XUM

detection system Multimode

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 3 m polarised reflex need reflector XUZC50
10 m thru beam need a transmitter XUM0AKSAM8T
0.1 m diffuse with background suppression
0.4 m diffuse

Product certifications UL
CE
CSA

Add on output With alarm output, 50 mA

Handle front plate colour 45 mm

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption 35 mA no-load

maximum voltage drop <1.5 V (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material PBT

lens material PMMA

Material Plastic

width (w) 12 mm

switching frequency <= 250 Hz
240 Hz

Net weight 0.035 kg

Discrete output type NPN

Maximum delay first up 100 ms

Maximum delay recovery 2 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

depth 20 mm

Maximum delay response 2 ms

Maximum sensing distance 14 m thru beam
4 m polarised reflex
0.1 m diffuse with background suppression
0.55 m diffuse

electrical connection 1 male connector M8, 4 pins

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Self-teaching

Sensor design Miniature

Status led 1 LED (green) for supply
1 LED (red) for instability
1 LED (yellow) for output state

Wiring technique 3-wire

Type of output signal Discrete

Supply circuit type DC

Wire insulation material PVC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex

ip degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
