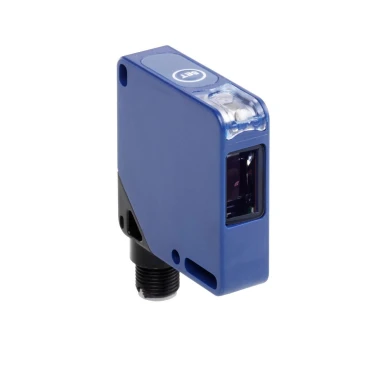

XUKR1NSMM12 - Photoelectric sensors XU, color mark, Sn 20 mm, NC, M12 connector - Schneider Electric
Expected in 2-4 weeks
359,76 €
Text About:
Photoelectric sensors XU, color mark, Sn 20 mm, NC, M12 connector - Schneider Electric
SPECIFICATIONS
Main
product specific application
Colour mark
Series name
Application packaging
sensor name
XUK
detection system
Diffuse
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
19 mm spot Ø 3.5 mm
Add on input
Remote teaching
Product certifications
CE
cULus
cULus
Add on output
Without
Handle front plate colour
50 mm
[us] rated supply voltage
12...24 V DC
Current consumption
<= 30 mA no-load
maximum voltage drop
<2 V (closed state)
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
ABS
Depth of field
+/- 2 mm
lens material
Glass
Material
Plastic
Sale per indivisible quantity
1
width (w)
15 mm
supply voltage limits
DC
switching frequency
<= 5 kHz
Net weight
0.045 kg
Discrete output type
NPN
Maximum delay recovery
0.1 ms
switching capacity in ma
<= 100 mA (reverse polarity, overload and short-circuit protection)
depth
50 mm
Maximum delay response
0.1 ms
electrical connection
1 male connector M12 adjustable through 90°, 4 pins
Maximum passing speed of object
2.5 m/s, minimum detected mark width: 1 mm
Output function governance
Light or dark teaching
Resolution
0.5 mm
Shock resistance
30 gn (duration = 11 ms) for 6 shocks on each axis conforming to IEC 60068-2-27
Setting-up
Sensitivity adjustment with teach mode
Sensor design
Compact 50 x 50
Status led
Stability: 1 LED (green)
Error: 1 LED (green/red (flashing))
Output state: 1 LED (yellow)
Error: 1 LED (green/red (flashing))
Output state: 1 LED (yellow)
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Environment
Ambient air temp for storage/transportation
-20…70 °C
Emission
White LED
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
ambient air temperature for operation
-10…55 °C
vibration resistance
+/-0.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
