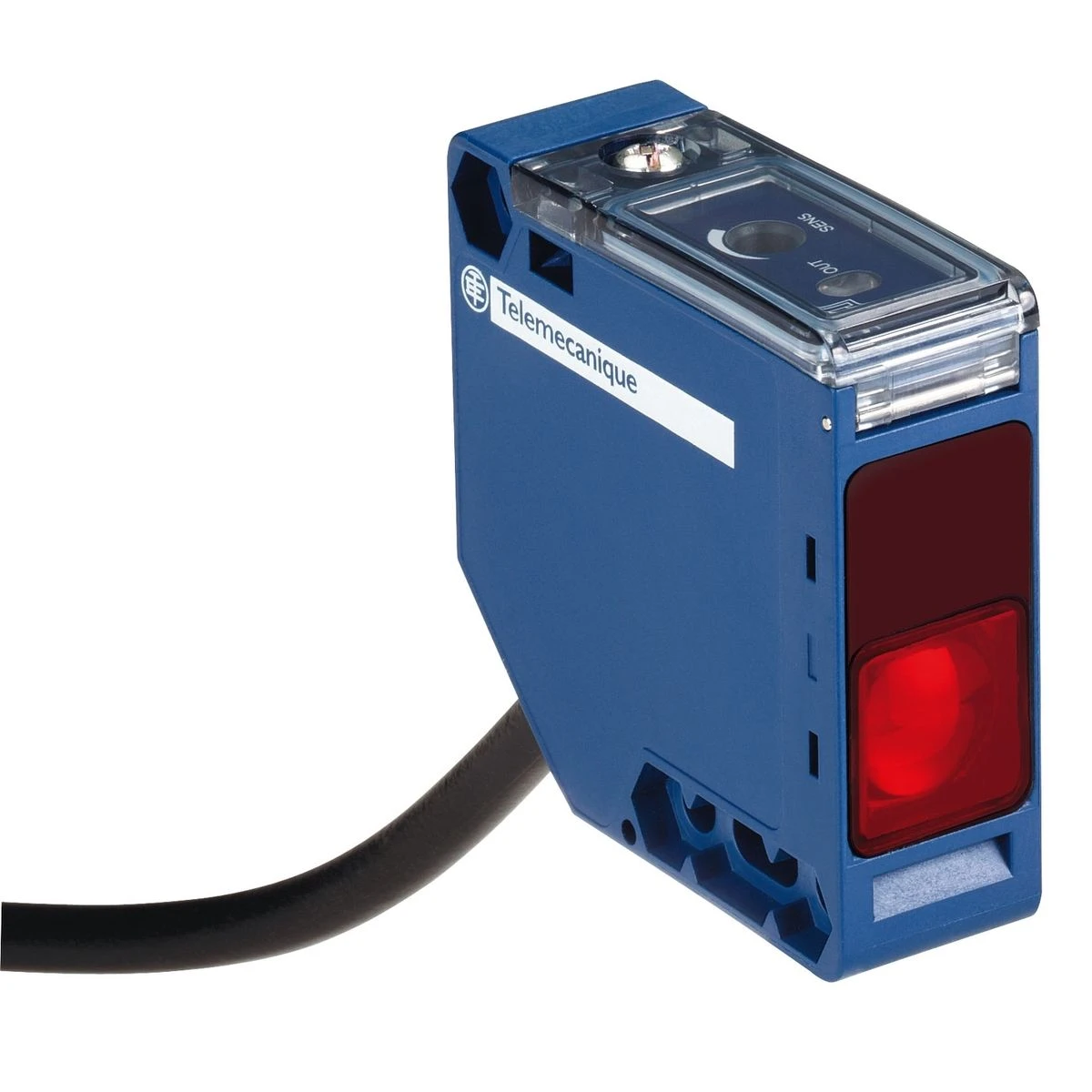

XUK2ARCNL2T - Photoelectric sensors XU, XUK, emitter, 24...240VAC/DC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

46,16 € excl. VAT

56,32 € incl. VAT

Text About:

Photoelectric sensors XU, XUK, emitter, 24...240VAC/DC, cable 2 m - Schneider Electric

In cart

56,32 €

SPECIFICATIONS

Main

product specific application -

cable length 2 m

Series name General purpose single mode

sensor name XUK

detection system Thru beam

electronic sensor type Photo-electric sensor transmitter

Complementary

[sn] nominal sensing distance 30 m thru beam need a receiver

Add on input Test by emission breaking

Product certifications CSA
CE
UL

Handle front plate colour 50 mm

[us] rated supply voltage 24...240 V AC/DC

Current consumption <= 35 mA no-load

maximum voltage drop <1.5 V (closed state)

Enclosure material PBT

lens material PMMA

Material Plastic

width (w) 18 mm

supply voltage limits 20…264 V AC/DC

switching frequency <= 250 Hz

Maximum delay first up 60 ms

Maximum delay recovery 25 ms

switching capacity in ma 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)

depth 50 mm

Maximum delay response 25 ms

Maximum sensing distance 45 m thru beam

electrical connection Cable

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Without sensitivity adjustment

Sensor design Compact 50 x 50

Status led 1 LED (green) for supply on

Wiring technique 2-wire

Supply circuit type AC/DC

Wire insulation material PVC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Infrared thru beam

ip degree of protection IP65 double insulation conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
