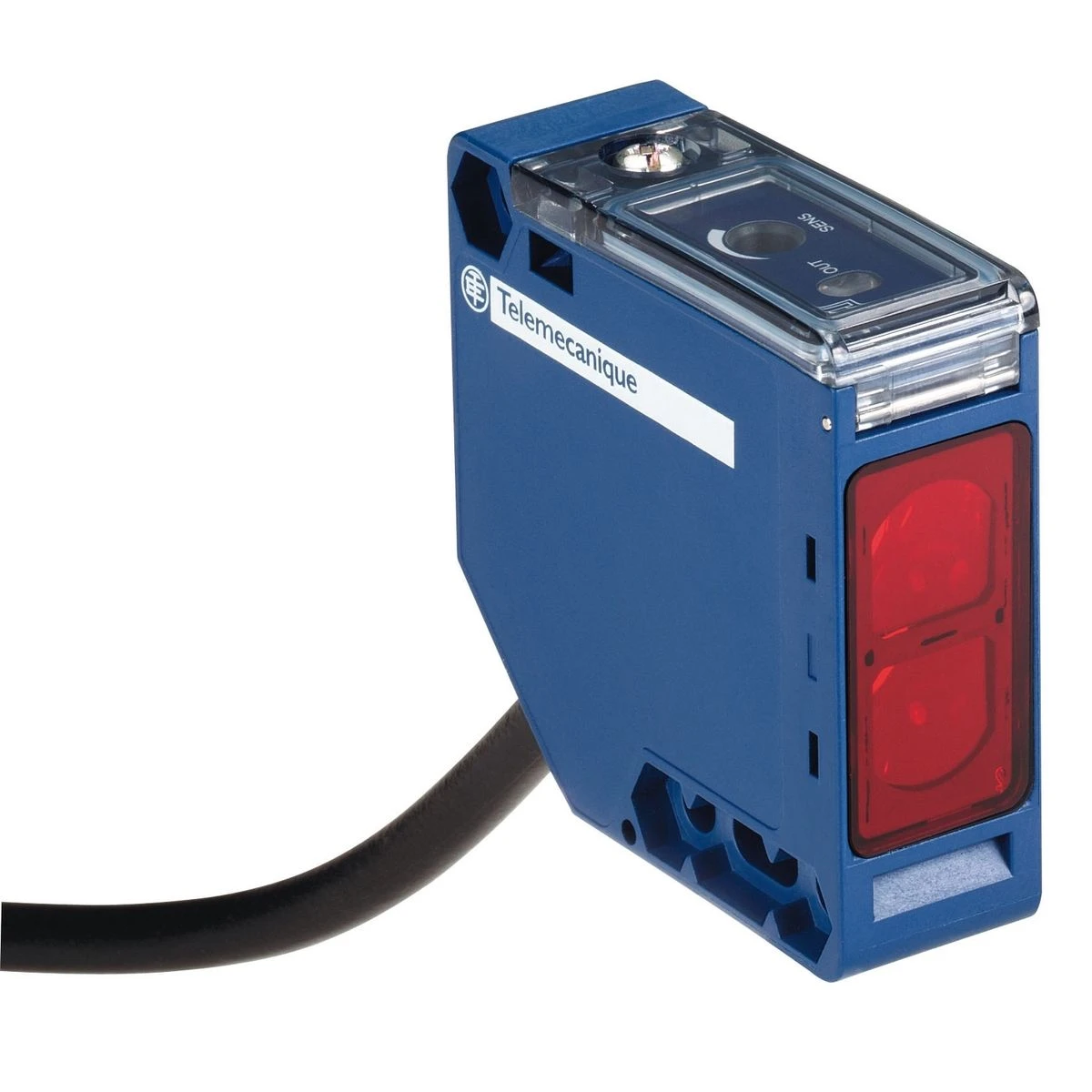

XUK1ARCNL2 - Photoelectric sensors XU, XUK, reflex, Sn 7 m, 24...240VAC/DC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

57,50 € excl. VAT

70,15 € incl. VAT

Text About:

Photoelectric sensors XU, XUK, reflex, Sn 7 m, 24...240VAC/DC, cable 2 m - Schneider Electric

In cart

70,15 €

SPECIFICATIONS

Main

product specific application -

cable length 2 m

Series name General purpose single mode

sensor name XUK

detection system Reflex

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 7 m reflex need reflector XUZC50

cable composition 5 x 0.34 mm²

Add on input Breaking test

Product certifications Ecolab
CE

Handle front plate colour 50 mm

[us] rated supply voltage 24...240 V AC/DC

Current consumption <= 35 mA no-load

cable outer diameter 6 mm

Output type Relay

Discrete output function 1 C/O

Enclosure material PBT

lens material PMMA

Material Plastic

width (w) 18 mm

supply voltage limits 20…264 V AC

switching frequency <= 20 Hz

Net weight 0.035 kg

Maximum delay first up 60 ms

Maximum delay recovery 25 ms

switching capacity in ma 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)

depth 50 mm

Maximum delay response 25 ms

electrical durability 500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V

Maximum sensing distance 10 m reflex

electrical connection Cable

maximum power consumption in w 2 W AC

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Without sensitivity adjustment

Sensor design Compact 50 x 50

Status led 1 LED (yellow) for output state
1 LED (green) for supply

Wiring technique 5-wire

Type of output signal Discrete

Supply circuit type AC/DC

Wire insulation material PVC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Infrared reflex

ip degree of protection IP65 double insulation conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
