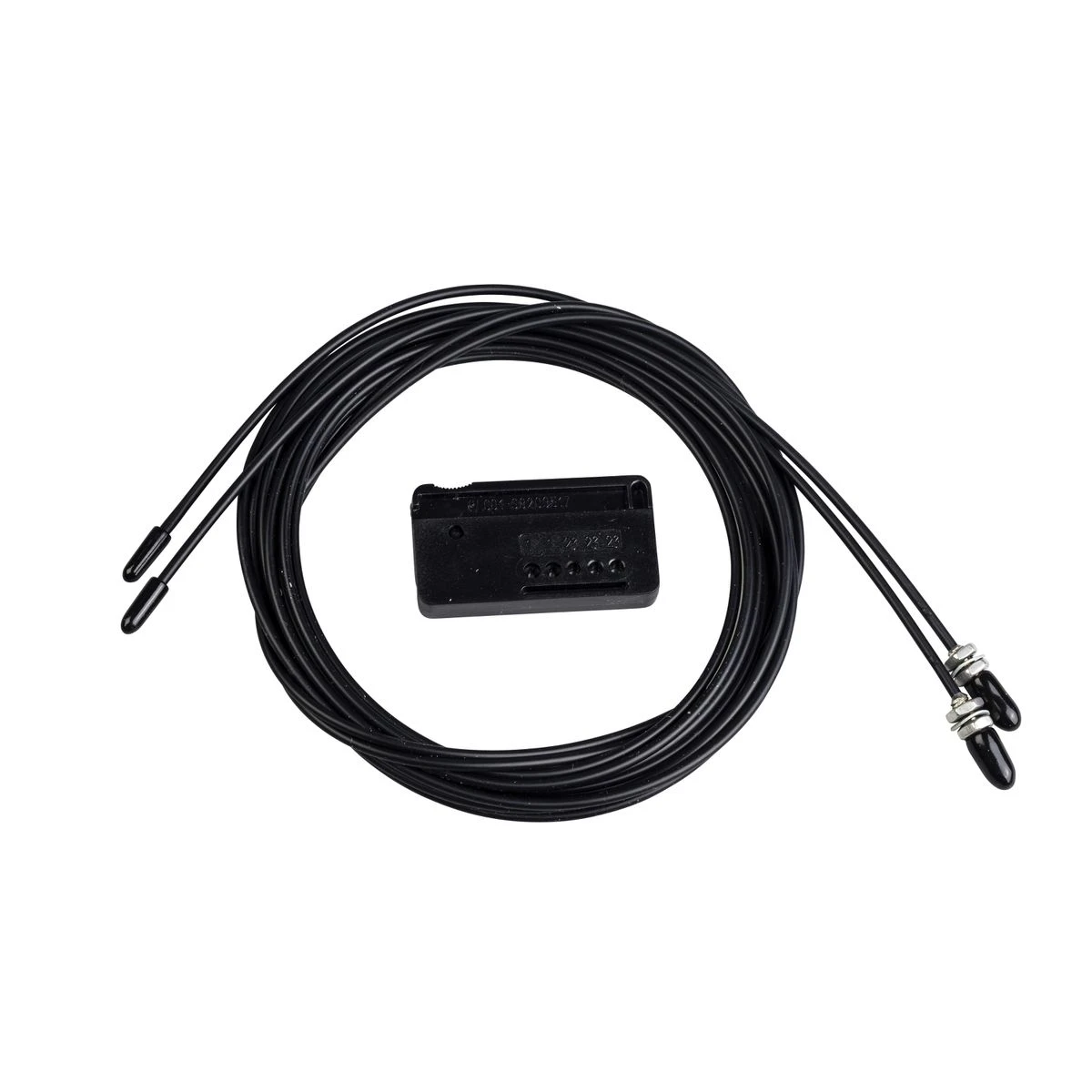

XUFN2S01L2 - Photoelectric sensors XU, plastic fibre optic for sensor, thru beam, flexible, standard, 2 m, Sn100mm - Schneider Electric
Expected in 2-4 weeks
223,74 €
Text About:
Photoelectric sensors XU, plastic fibre optic for sensor, thru beam, flexible, standard, 2 m, Sn100mm - Schneider Electric
SPECIFICATIONS
Main
End fitting type
M2.6 x 0.45, standard thread end fitting
sensor name
XUF
detection system
Thru beam
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
0.1 m XUFZ02
0.75 m XUFZ01
0.1 m
0.75 m XUFZ01
0.1 m
External diameter
2.2 mm
Minimum bending radius
4 mm
Optic fiber core
1 x Ø 1 mm
Optic fiber length
2 m
Optic fiber material
PMMA
Net weight
0.062 kg
Optic fiber use
Flexible fibres
Sheath material
PE
thread type
M4 x 0.7
Product destination
XUDA
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Sensor design
Fiber design
Environment
Ambient air temp for storage/transportation
-40…80 °C
ip degree of protection
IP64 conforming to IEC 60529
IP641 conforming to NF C 20-010
IP641 conforming to NF C 20-010
Range of product
Telemecanique Photoelectric sensors XU
ambient air temperature for operation
-25…60 °C
vibration resistance
+/- 1.5 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
7 gn (f= 10…55 Hz) conforming to IEC 60068-2-6
7 gn (f= 10…55 Hz) conforming to IEC 60068-2-6
