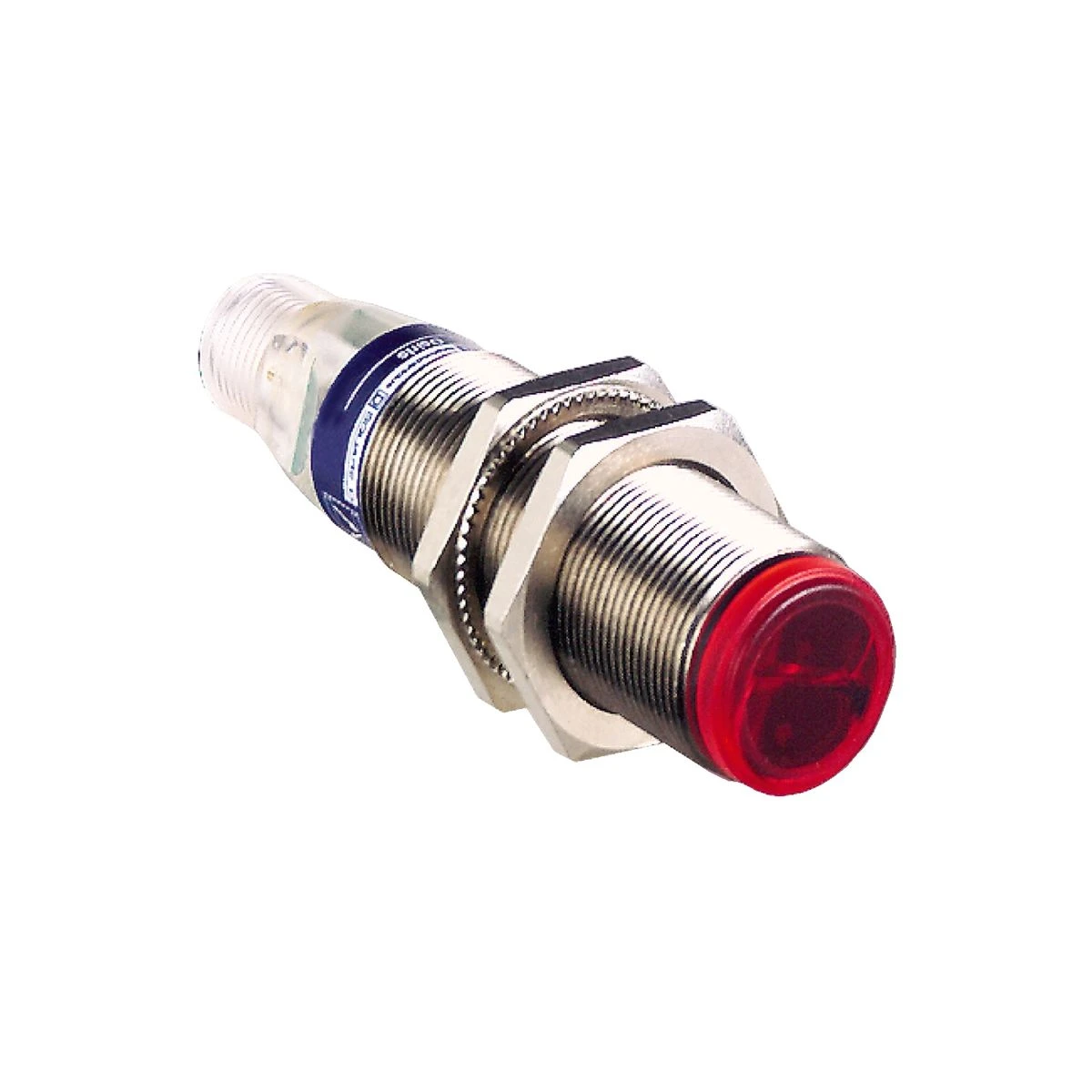

XUBTSNSNM12 - Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12 - Schneider Electric

Expected in 2-4 weeks

232,23 € excl. VAT

283,32 € incl. VAT

Text About:

Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12 - Schneider Electric

In cart

283,32 €

SPECIFICATIONS

Main

product specific application Detection of transparent object

Series name Application packaging

sensor name XUBT

detection system Reflex

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 0…1.4 m with reflector XUZ C50/C50HP

Kit composition Sensor
Reflector XUZC50HP

Product certifications UL
CSA
CE

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Beam angle 1.5 °

Blind zone 0 mm

Current consumption 45 mA no-load

maximum voltage drop <1.5 V (closed state)

Output type Solid state

Discrete output function 1 NO or 1 NC programmable

Enclosure material Stainless steel : 304 CU

lens material PMMA

Material Metal

supply voltage limits 10…32 V DC

switching frequency 1000 Hz

Net weight 0.07 kg

Discrete output type NPN

Maximum delay first up 200 ms

Maximum delay recovery 500 ms

switching capacity in ma 100 mA (overload and short-circuit protection)

Maximum delay response 500 ms

electrical connection 1 male connector M12, 4 pins

Line of sight type Axial

Spot diameter 37 mm

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Sensor design Cylindrical M18

Status led Supply on: 1 LED (green)
Stability: 1 LED (red)
Output state: 1 LED (yellow)

Wiring technique 3-wire

Type of output signal Discrete

Supply circuit type DC

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Coaxial polarised red reflex

ip degree of protection IP65 conforming to IEC 60529 (double insulation)
IP67 conforming to IEC 60529 (double insulation)
IP69K conforming to DIN 40050 (double insulation)

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation 0…55 °C

vibration resistance 7 gn, amplitude = +/- 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
