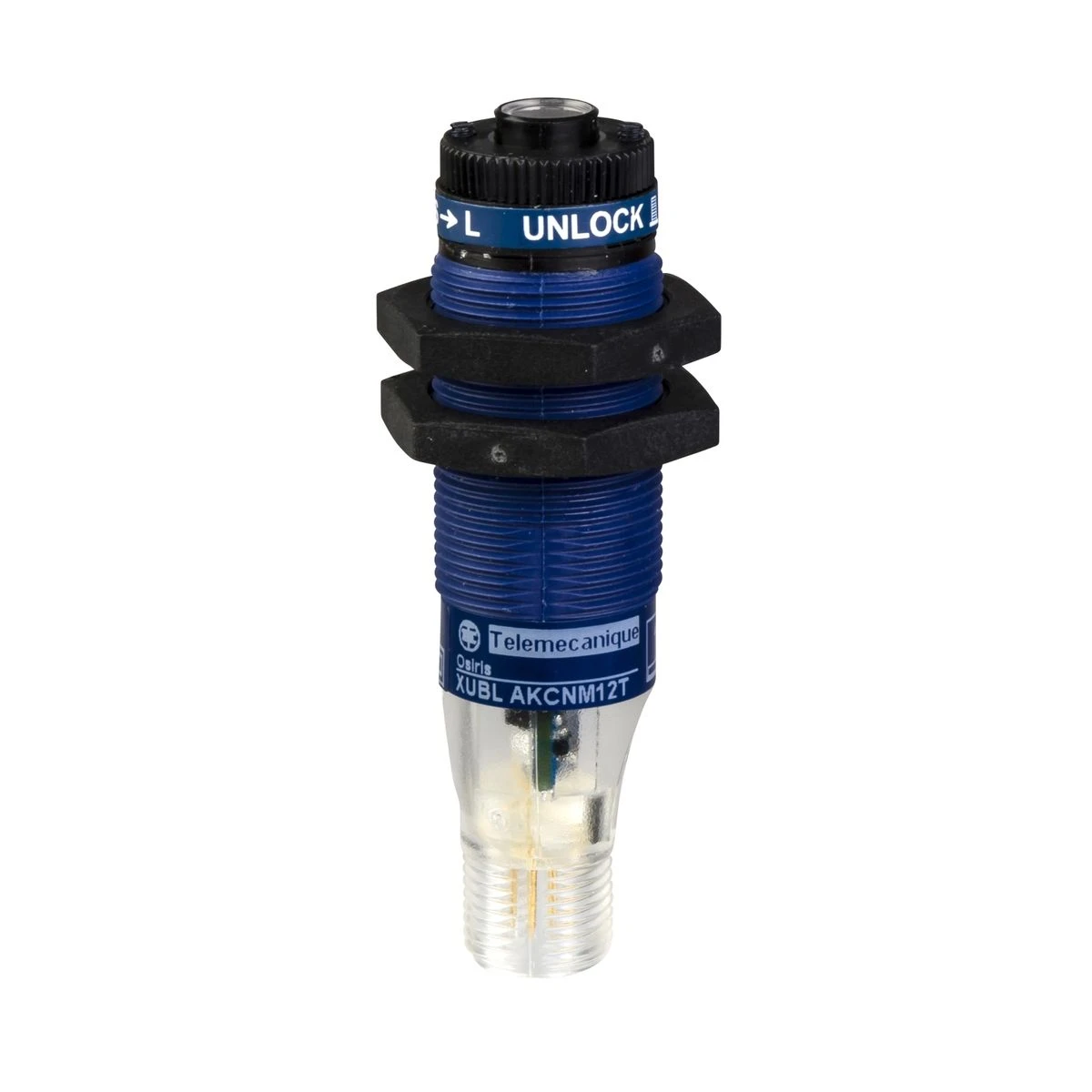

XUBLAKCNM12T - Photoelectric sensors XU, XUB, emitter, laser, 12...24 VDC, M12 - Schneider Electric
Expected in 2-4 weeks
179,27 €
Text About:
Photoelectric sensors XU, XUB, emitter, laser, 12...24 VDC, M12 - Schneider Electric
SPECIFICATIONS
Main
product specific application
-
Series name
Application material handling
sensor name
XUB
detection system
Thru beam
electronic sensor type
Photo-electric sensor transmitter
Complementary
[sn] nominal sensing distance
0…100 m thru beam need a receiver
Add on input
Test by emission breaking
length [l]
66 mm
Product certifications
UL
CE
CSA
CE
CSA
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
25 mA no-load
maximum voltage drop
<1.5 V (closed state)
diameter
18 mm
Enclosure material
PBT
lens material
PMMA
Material
Plastic
supply voltage limits
10…30 V DC
switching frequency
<= 1500 Hz
Net weight
0.04 kg
Maximum delay first up
80 ms
Maximum delay recovery
0.4 ms
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
Maximum delay response
0.4 ms
electrical connection
1 male connector M12, 4 pins
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Sensor design
Cylindrical M18
Status led
1 LED (green) for supply on
Wiring technique
3-wire
Supply circuit type
DC
Environment
Ambient air temp for storage/transportation
-40…70 °C
Emission
Red laser thru beam class 1 670 nm conforming to IEC 60825-1
ip degree of protection
IP67 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
ambient air temperature for operation
-10…45 °C
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
