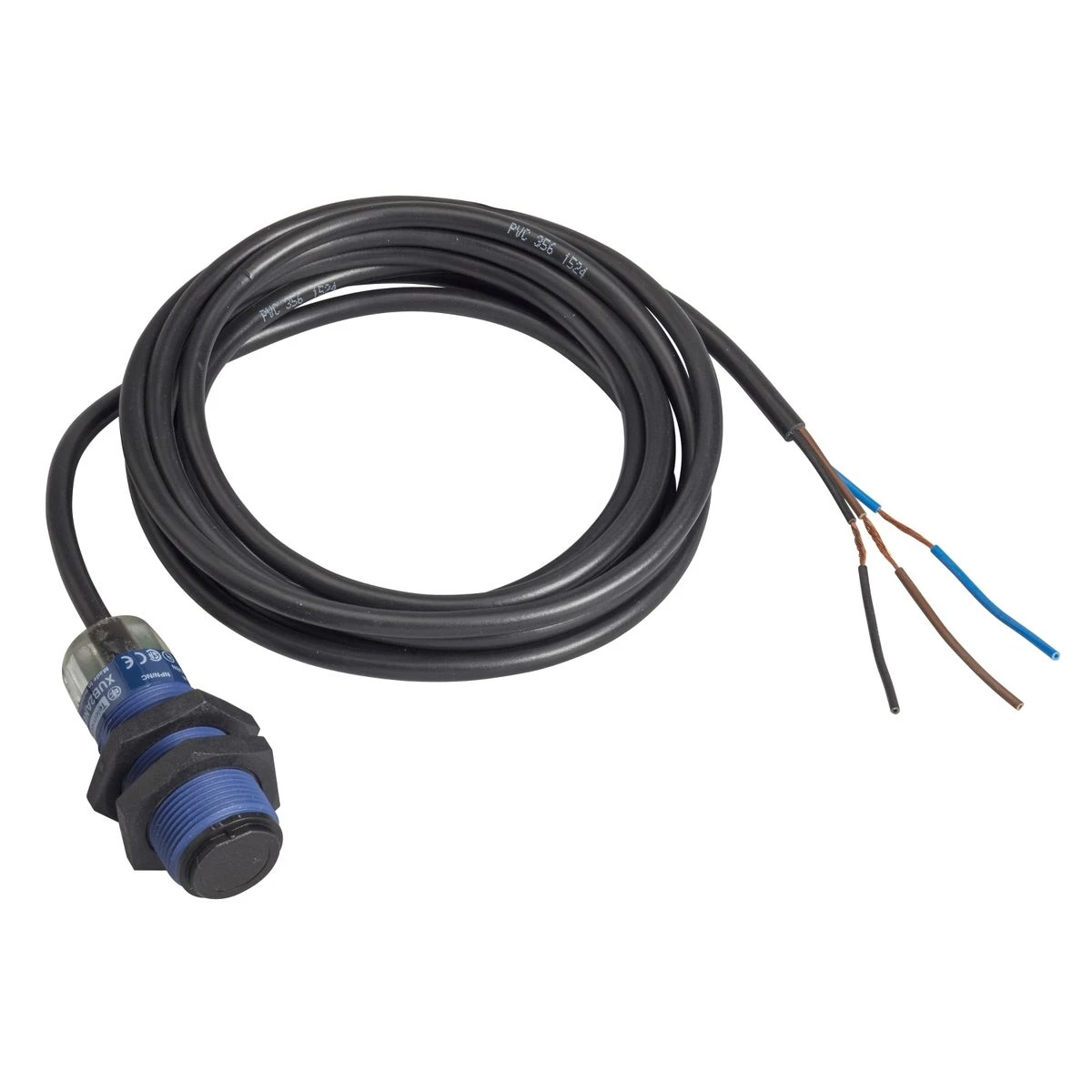

XUB9ANBNL2 - Photoelectric sensors XU, XUB, polarised, Sn 2 m, 12...24 VDC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

73,66 € excl. VAT

89,86 € incl. VAT

Text About:

Photoelectric sensors XU, XUB, polarised, Sn 2 m, 12...24 VDC, cable 2 m - Schneider Electric

In cart

89,86 €

SPECIFICATIONS

Main

product specific application -

cable length 2 m

Series name General purpose single mode

sensor name XUB

detection system Polarised reflex

electronic sensor type Photo-electric sensor

Complementary

[sn] nominal sensing distance 2 m polarised reflex need reflector XUZC50

length [l] 62 mm

Product certifications CE
UL
CSA

Add on output Without

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption 35 mA no-load

maximum voltage drop <1.5 V (closed state)

diameter 18 mm

Output type Solid state

Discrete output function 1 NC

Enclosure material PBT

lens material PMMA

Material Plastic

supply voltage limits 10…36 V DC

switching frequency <= 500 Hz

Net weight 0.04 kg

Discrete output type NPN

Maximum delay first up 15 ms

Maximum delay recovery 1 ms

switching capacity in ma <= 100 mA (overload and short-circuit protection)

Maximum delay response 1 ms

Maximum sensing distance 3 m polarised reflex

electrical connection Cable

Line of sight type Axial

Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Setting-up Without sensitivity adjustment

Sensor design Cylindrical M18

Status led 1 LED (yellow) for output state

Wiring technique 3-wire

Type of output signal Discrete

Supply circuit type DC

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…70 °C

Emission Red polarised reflex

ip degree of protection IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529

Range of product Telemecanique Photoelectric sensors XU

ambient air temperature for operation -25…55 °C

vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
