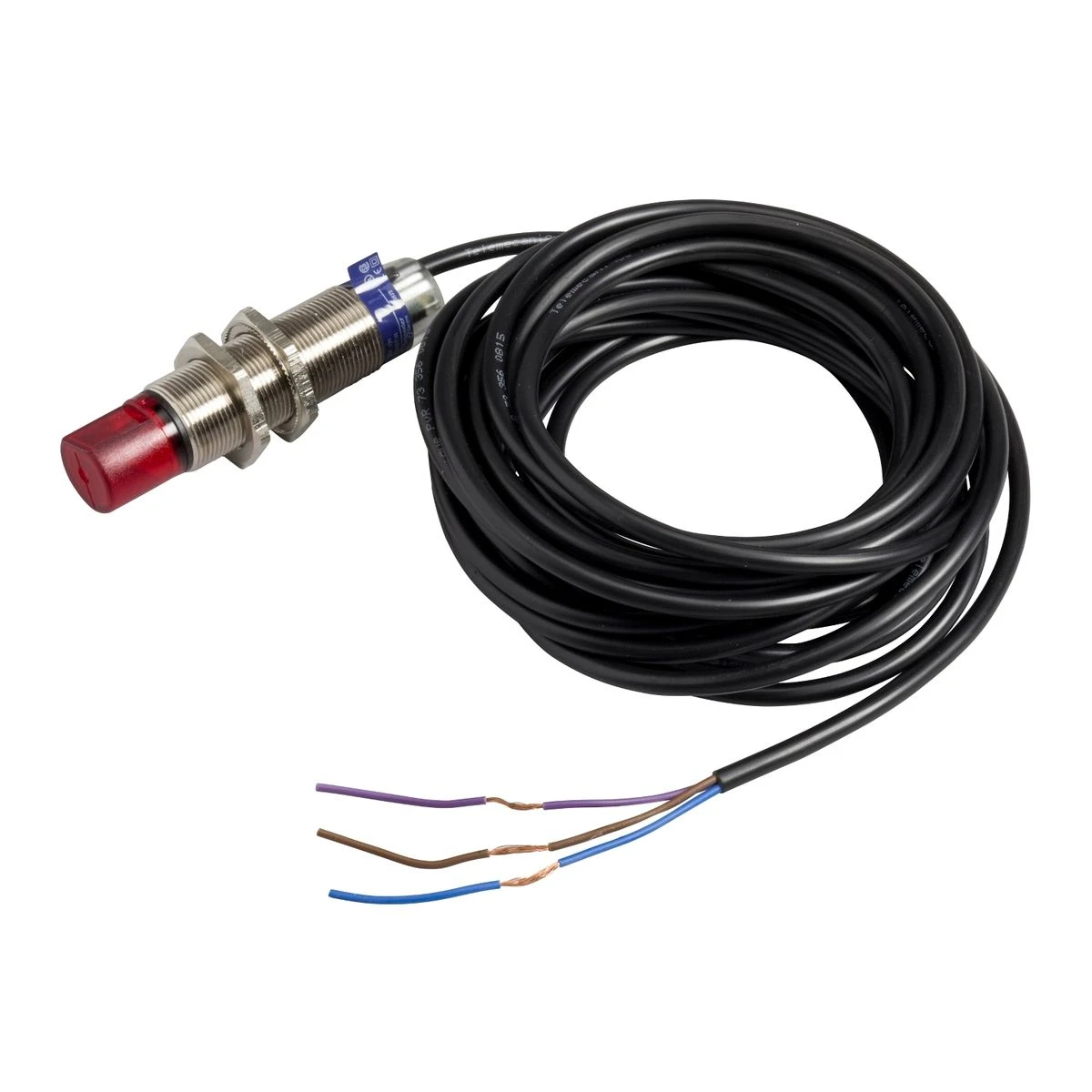

XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - Schneider Electric

Expected in 2-4 weeks
XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - Schneider Electric - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - Schneider Electric - 0
XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - Schneider Electric
105,48 € excl. VAT
130,80 € incl. VAT
Text About:
Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - Schneider Electric
130,80 €
SPECIFICATIONS
Main
product specific application -
cable length 2 m
Series name General purpose single mode
sensor name XUB
detection system Diffuse
electronic sensor type Photo-electric sensor
Complementary
[sn] nominal sensing distance 0.6 m diffuse
length [l] 92 mm
Product certifications CE
UL
CSA
Add on output Without
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption 35 mA no-load
maximum voltage drop <1.5 V (closed state)
diameter 18 mm
Output type Solid state
Discrete output function 1 NC
Enclosure material PBT
lens material PMMA
Material Plastic
supply voltage limits 10…36 V DC
switching frequency <= 500 Hz
Net weight 0.05 kg
Discrete output type PNP
Maximum delay first up 15 ms
Maximum delay recovery 1 ms
switching capacity in ma <= 100 mA (overload and short-circuit protection)
Maximum delay response 1 ms
Maximum sensing distance 0.8 m diffuse
electrical connection Cable
Line of sight type 90° lateral
Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up Sensitivity adjustment
Sensor design Cylindrical M18
Status led 1 LED (yellow) for output state
Wiring technique 3-wire
Type of output signal Discrete
Supply circuit type DC
Wire insulation material PvR
Environment
Ambient air temp for storage/transportation -40…70 °C
Emission Infrared diffuse
ip degree of protection IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529
Range of product Telemecanique Photoelectric sensors XU
ambient air temperature for operation -25…55 °C
vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m is designed to cater to the necessities of industry experts, such as switchgear manufacturers, electricians, facility upkeep providers, and Industry suppliers. XUB5APBWL2 grants impressive reliability and advantages for developers in the power management industry. This Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m and other Photoelectric Sensors XU from Schneider Electric are on offer at the most affordable rate and supply period through BALTELEC online store, a well-known purveyor aiding contractors in their buying needs.

Customers who have selected Schneider Electric Photoelectric Sensors XU have regularly extolled the producer's trustworthiness. It has been remarked that the exceptional efficiency of XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m extends to a array of use. Its first-rate aspects make it suitable for different applications. Your developed solution will excel in quality, energy-efficiency and price.

BALTELEC concentrates in addressing industrial and tertiary professionals’ needs. We appreciate the distinct demands and demands of our stakeholders in the market. By partnering with Baltelec team, your enterprise get access to the top charges and availability of high-quality products like XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m from Schneider Electric at an economical price. Professional buyers with Baltelec account get exclusive discounts and priority service.

Don't wait and obtain XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m at our trusted and accessible online portal. Don't delay in making this astute selection that ensures the supreme quality and addresses the customized requirements of contractors like your outfit.

If there are any concerns or concerns about XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m or any other Schneider Electric products, connect with us or refer to our Frequently Asked Questions section below. We have provided answers to common inquiries to back you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, XUB5APBWL2 - Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m from Schneider Electric is safe, budget-friendly, and premier to other brands in the Photoelectric Sensors XU category. Make it a part of your infrastructure immediately. Snap up at BaltElec, your reliable retailer for all your Photoelectric Sensors XU.

In our Baltelec.eu virtual store you will find Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m - XUB5APBWL2 worth 128.69 €, which will be a safe and up-to-date solution for your preferences. This goods is produced by the Schneider Electric brand using the up-to-the-minute technologies and obeys the peak standards of well-being and efficiency. We deliver goods from the Photoelectric Sensors XU category that blend strength and functionality, which is an fine preference for various roles. Regardless of whether you want equipment for small generation or for skilled industrial purpose, Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m will be a secure assistant in your task.

Baltelec tries to make the getting process as uncomplicated and fast as achievable for our clients. We offer detailed narratives and high-quality photographs of Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m so that you can make an conscious choice. A team of professionals is always ready to help you with any inquiries in the Photoelectric Sensors XU section tied to the nomination and use of articles. We are convinced that Photoelectric sensors XU, XUB, diffuse, 90°, Sn 0.6 m, 12...24 VDC, cable 2 m will meet your needs and become an imperative element of your tools for just 128.69 €.
