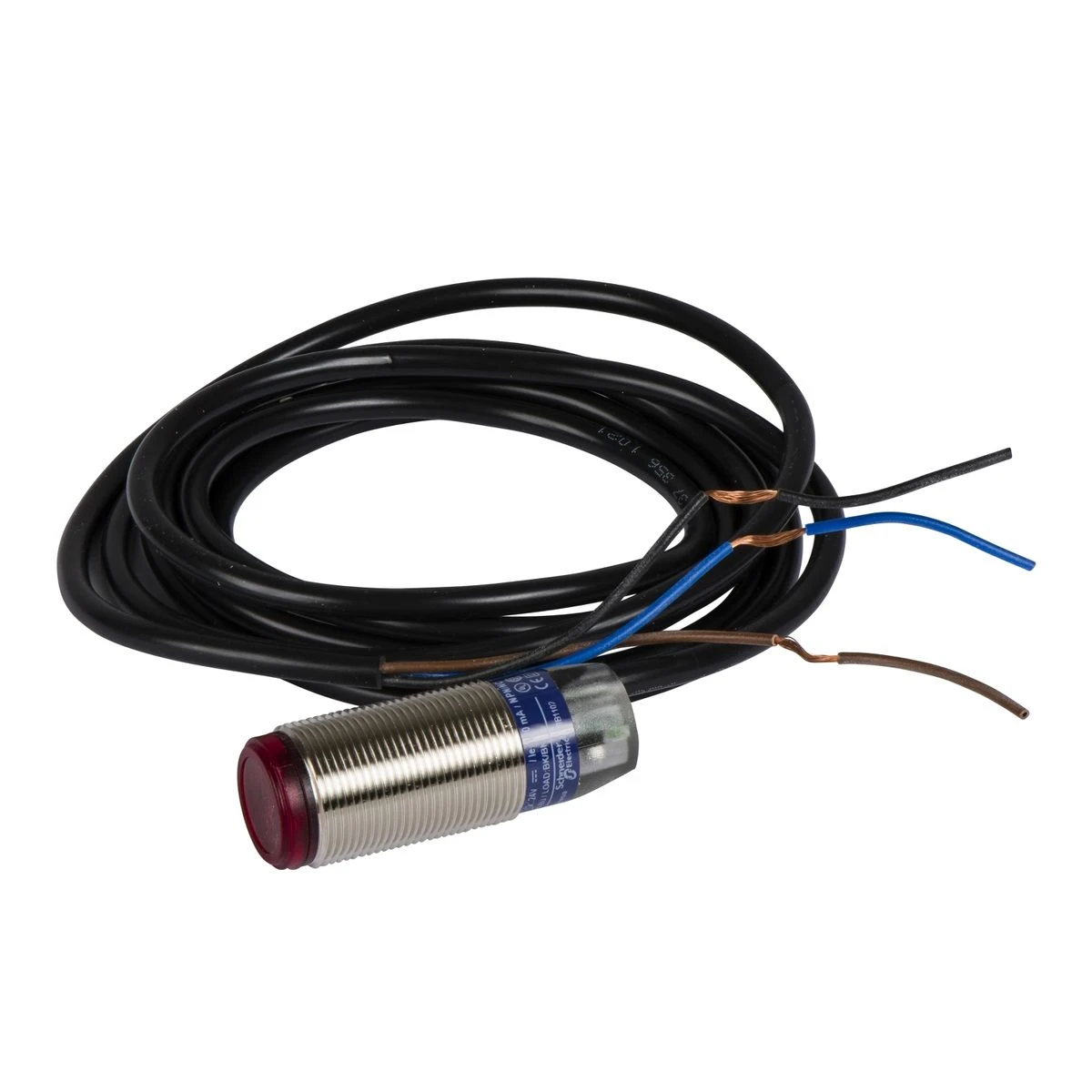

XUB4BNBNL2 - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique

Pending restock
XUB4BNBNL2 - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique - 0
XUB4BNBNL2 - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique - 0
XUB4BNBNL2 - Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique
Text About:
Photoelectric sensors XU, XUB, diffuse, Sn 0.1 m, 12...24 VDC, cable 2 m - Telemecanique
SPECIFICATIONS
Main
product specific application -
cable length 2 m
Series name General purpose single mode
sensor name XUB
detection system Diffuse
electronic sensor type Photo-electric sensor
Complementary
[sn] nominal sensing distance 0.1 m diffuse
length [l] 60 mm
Product certifications CE
UL
CSA
Add on output Without
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption 35 mA no-load
maximum voltage drop <1.5 V (closed state)
diameter 18 mm
Output type Solid state
Discrete output function 1 NC
Enclosure material Nickel plated brass
lens material PMMA
Material Metal
supply voltage limits 10…36 V DC
switching frequency <= 500 Hz
Net weight 0.05 kg
Discrete output type NPN
Maximum delay first up 15 ms
Maximum delay recovery 1 ms
switching capacity in ma <= 100 mA (overload and short-circuit protection)
Maximum delay response 1 ms
Maximum sensing distance 0.15 m diffuse
electrical connection Cable
Line of sight type Axial
Shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up Without sensitivity adjustment
Sensor design Cylindrical M18
Status led 1 LED (yellow) for output state
Wiring technique 3-wire
Type of output signal Discrete
Supply circuit type DC
Wire insulation material PvR
Environment
Ambient air temp for storage/transportation -40…70 °C
Emission Infrared diffuse
ip degree of protection IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529
Range of product Telemecanique Photoelectric sensors XU
ambient air temperature for operation -25…55 °C
vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
