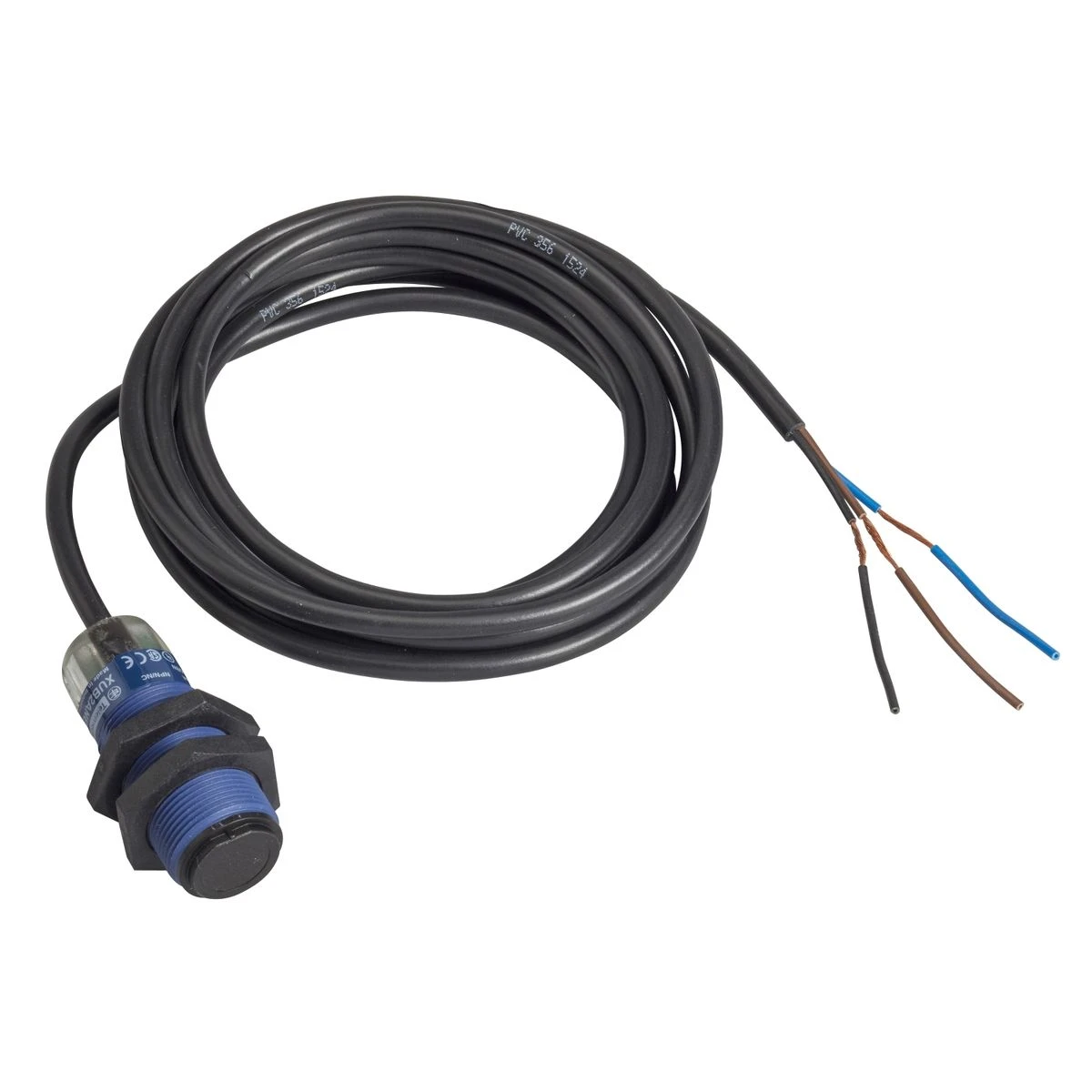

XUB0APSNL5 - Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 5 m - Schneider Electric
Expected in 2-4 weeks
153,89 €
Text About:
Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 5 m - Schneider Electric
SPECIFICATIONS
Main
product specific application
-
cable length
5 m
Series name
General purpose multimode
sensor name
XUB
detection system
Multimode
electronic sensor type
Photo-electric sensor
Complementary
[sn] nominal sensing distance
3 m polarised reflex need reflector XUZC50
20 m thru beam need a transmitter XUB0AKSNL5T
0.12 m diffuse with background suppression
0.3 m diffuse
20 m thru beam need a transmitter XUB0AKSNL5T
0.12 m diffuse with background suppression
0.3 m diffuse
length [l]
64 mm
Product certifications
CE
UL
CSA
UL
CSA
Add on output
Without
[us] rated supply voltage
12...24 V DC with reverse polarity protection
Current consumption
35 mA no-load
maximum voltage drop
<1.5 V (closed state)
diameter
18 mm
Output type
Solid state
Discrete output function
1 NO or 1 NC programmable
Enclosure material
PBT
lens material
PMMA
Material
Plastic
supply voltage limits
10…36 V DC
switching frequency
<= 250 Hz
Discrete output type
PNP
Maximum delay first up
200 ms
Maximum delay recovery
2 ms
switching capacity in ma
<= 100 mA (overload and short-circuit protection)
Maximum delay response
2 ms
Maximum sensing distance
0.12 m diffuse with background suppression
0.4 m diffuse
30 m thru beam
4.5 m polarised reflex
0.4 m diffuse
30 m thru beam
4.5 m polarised reflex
electrical connection
Cable
Line of sight type
Axial
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Setting-up
Self-teaching
Sensor design
Cylindrical M18
Status led
1 LED (green) for supply
1 LED (red) for instability
1 LED (yellow) for output state
1 LED (red) for instability
1 LED (yellow) for output state
Wiring technique
3-wire
Type of output signal
Discrete
Supply circuit type
DC
Wire insulation material
PvR
Environment
Ambient air temp for storage/transportation
-40…70 °C
Emission
Infrared diffuse
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex
Infrared diffuse with background suppression
Infrared thru beam
Red polarised reflex
ip degree of protection
IP65 double insulation conforming to IEC 60529
IP67 double insulation conforming to IEC 60529
IP67 double insulation conforming to IEC 60529
Range of product
Telemecanique Photoelectric sensors XU
ambient air temperature for operation
-25…55 °C
vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
