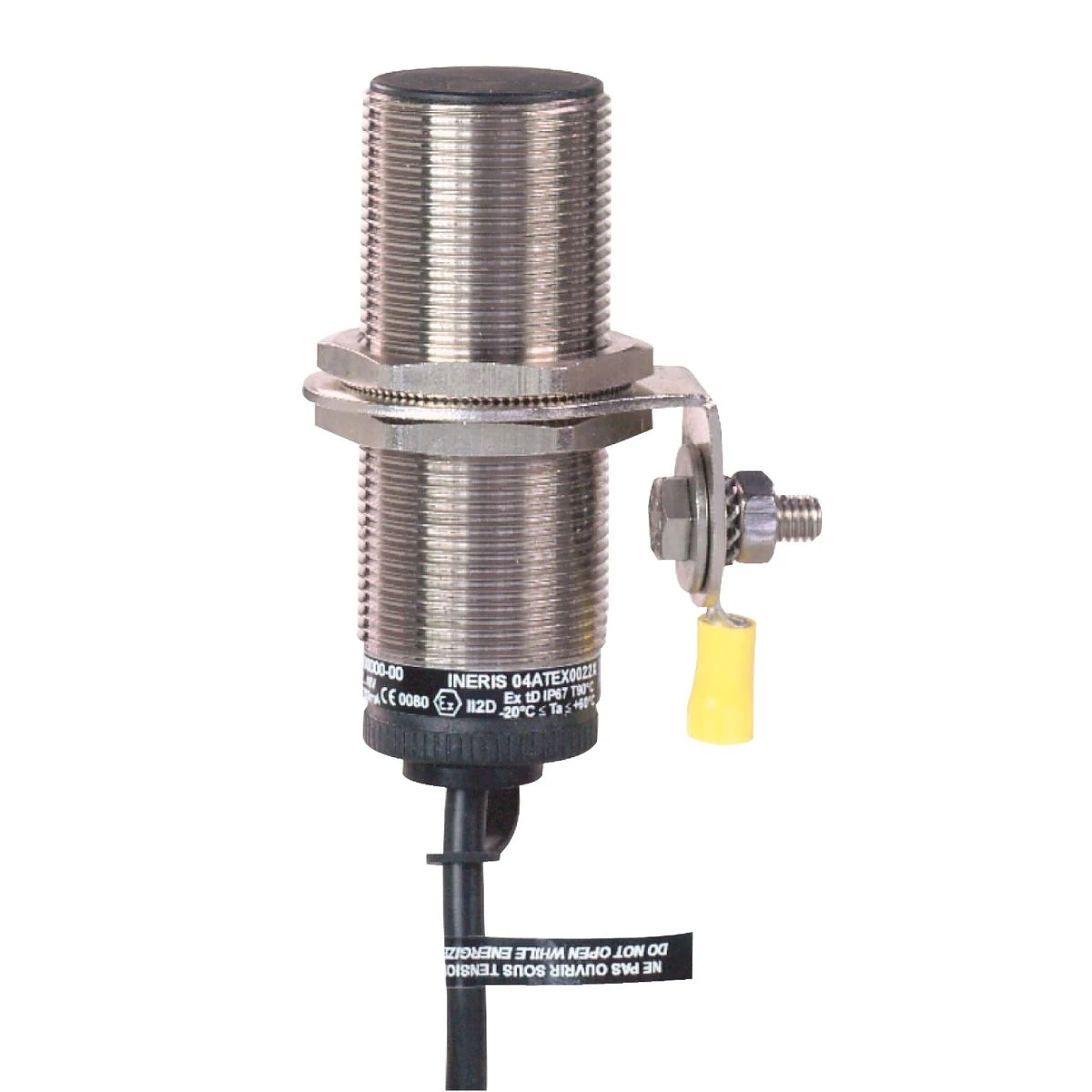

XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - Schneider Electric

Expected in 2-4 weeks
XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - Schneider Electric - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - Schneider Electric - 0
XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - Schneider Electric
811,16 € excl. VAT
1 005,83 € incl. VAT
Text About:
Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - Schneider Electric
1 005,83 €
SPECIFICATIONS
Main
Body type Fixed
cable length 2 m
Series name Application
sensor name XSA
Complementary
[sn] nominal sensing distance 10 mm
cable composition 3 x 0.34 mm²
Adjustable frequency range 6…150 cyc/mn
length [l] 81 mm
Product certifications INERIS 04ATEX0022
IEC-Ex INE 17.0006
[us] rated supply voltage 12...48 V DC with reverse polarity protection
Current consumption 0...15 mA no-load
maximum voltage drop <1.8 V (closed state)
detection face Frontal
marking II2 D-Ex tb IIIC T90°C Db IP67
Device application Rotation monitoring ATEX dust
Discrete output function 1 NC
Enclosure material Nickel plated brass
Detector flush mounting acceptance Flush mountable
Differential travel 3...15% of Fr
Material Metal
supply voltage limits 10…58 V DC
switching frequency <= 100 Hz
Discrete output type PNP
switching capacity in ma <= 200 mA with overload and short-circuit protection
repeat accuracy 3% of Sr
Front material PPS
thread type M30 x 1.5
electrical connection Cable
output circuit type DC
Operating zone 0…8 mm
Sensing range > 8...15 mm
Sensor type Inductive proximity sensor
Run-up delay at power-up 9 s standard
Sensor design Cylindrical M30
Status led Output state: 1 LED (red)
Threaded length 57 mm
Wiring technique 3-wire
Size 30 mm
Type of output signal Discrete
Wire insulation material PvR
Environment
Directives 2014/34/EU - ATEX directive
ip degree of protection IP67 conforming to IEC 60529
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -40…60 °C
Dust zone Zone 21 - 22
Environmental characteristics Hazardous location
standards EN/IEC 60079-31
EN/IEC 60079-0
About this product

The XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, is produced to cater to the obligations of specialized professionals, such as panel manufacturers, wiring specialists, upkeep firms, and OEMs. XSAV11373TFEX delivers superior excellence and merit for designers in the electrical engineering industry. This Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, and other Inductive And Capacitive Sensors XS & XT from Schneider Electric are procurable at the unbeatable price and lead time through BaltElec online store, a dependable reseller catering to engineers in their collection needs.

Clients who have adopted Schneider Electric Inductive And Capacitive Sensors XS & XT have continuously commended the manufacturer’s durability. It has been mentioned that the remarkable capability of XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, extends to a broad spectrum of tasks. Its top-notch features make it ideal solution for different applications, ensuring your industrial, tertiary and automation projects success.

BALTELEC focuses in accommodating industrial and tertiary professionals’ needs. We understand the individual expectations and anticipations of our customers in the market. By cooperating with us, your company acquire access to the premier rates and supply timeline of premium products like XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, from Schneider Electric at an economical price. Authorized buyers take advantage of exclusive discounts and dedicated support.

Don't wait and grab XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, at our dependable and easy-to-use webshop. Don't delay in making this clever move that assures the top quality and addresses the particular necessities of contractors like your company.

If you possess any doubts or concerns about XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, or any other Schneider Electric products, send us a note or refer to our Information center section below. We have brought together answers to routine queries to facilitate you further in making an wise decision about industrial and tertiary electrical components.

Remember, XSAV11373TFEX - Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, from Schneider Electric is dependable, reasonable, and exceptional to other brands in the Inductive And Capacitive Sensors XS & XT category. Make it a part of your apparatus today. Snap up at baltele.eu, your steady distributor for all your Inductive And Capacitive Sensors XS & XT.

In our Baltelec.eu digital store you will come across Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, - XSAV11373TFEX worth 989.61 €, which will be a reliable and cutting-edge solution for your demands. This goods is formulated by the Schneider Electric brand using the modern technologies and satisfies the maximum standards of protection and competence. We offer objects from the Inductive And Capacitive Sensors XS & XT category that blend resilience and workability, which is an outstanding preference for various tasks. Irrespective of whether you demand instruments for small construction or for competent industrial use, Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, will be a steadfast companion in your occupation.

Baltelec tries to make the shopping process as manageable and fast as practicable for our shoppers. We offer detailed depictions and high-quality photos of Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, so that you can make an aware choice. A team of authorities is always ready to help you with any matter in the Inductive And Capacitive Sensors XS & XT section involved to the nomination and use of equipment. We are persuaded that Inductive proximity sensors XS ATEX D, rotation monitoring hazardous area, M30, Sn10mm, 6...150c/mn, will meet your standards and become an indispensable element of your machinery for just 989.61 €.
