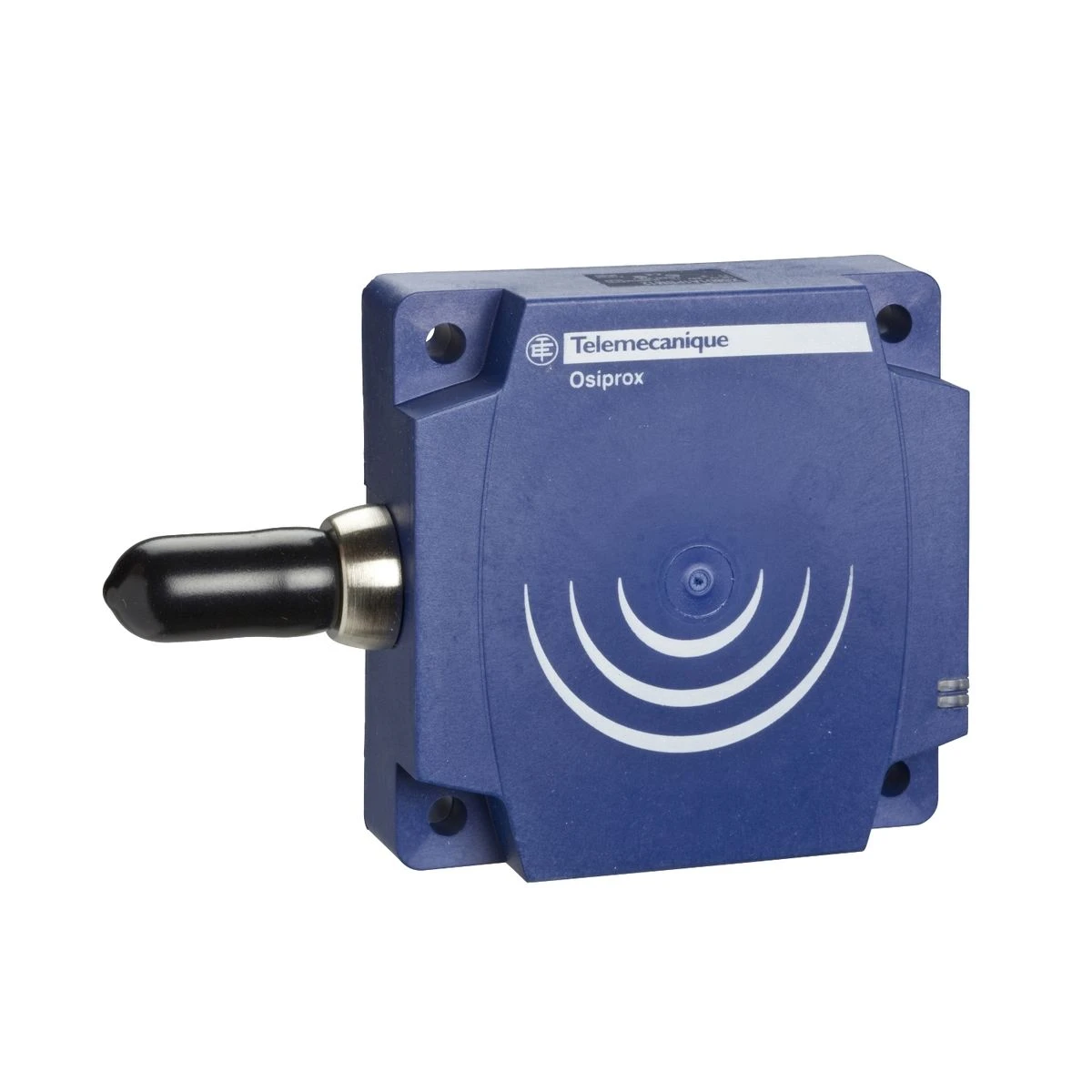

XS8D1A1PAM12DIN - Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12...24 VDC, M12 - Telemecanique

Pending restock

Text About:

Inductive proximity sensors XS, inductive sensor XS8 80x80x26, PBT, Sn60mm, 12...24 VDC, M12 - Telemecanique

SPECIFICATIONS

Main

Body type Fixed clippable onto DIN rail

Series name General purpose

sensor name XS8

Complementary

[sn] nominal sensing distance 40 mm flush mountable
60 mm non flush mountable

Product certifications CSA
UL

Handle front plate colour 80 mm

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption <= 10 mA no-load

maximum residual current 1.5 mA open state

maximum voltage drop <2 V (closed)

detection face Frontal

marking CE

Device application -

Discrete output function 1 NO

Enclosure material PBT

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Plastic

width (w) 80 mm

supply voltage limits 10…36 V DC

switching frequency <= 150 Hz

Discrete output type PNP

Fine adjustment zone 20…40 mm flush mountable
20…60 mm non flush mountable

Maximum delay first up 10 ms

Maximum delay recovery 6 ms

switching capacity in ma <= 200 mA DC with overload and short-circuit protection

depth 40 mm

Maximum delay response 0.3 ms

Front material PBT

electrical connection Male connector M12, 4 pins

output circuit type DC

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Flat form 80 x 80 x 26

Wiring technique 3-wire

Size 40 mm

Type of output signal Discrete

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP67 double insulation conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
