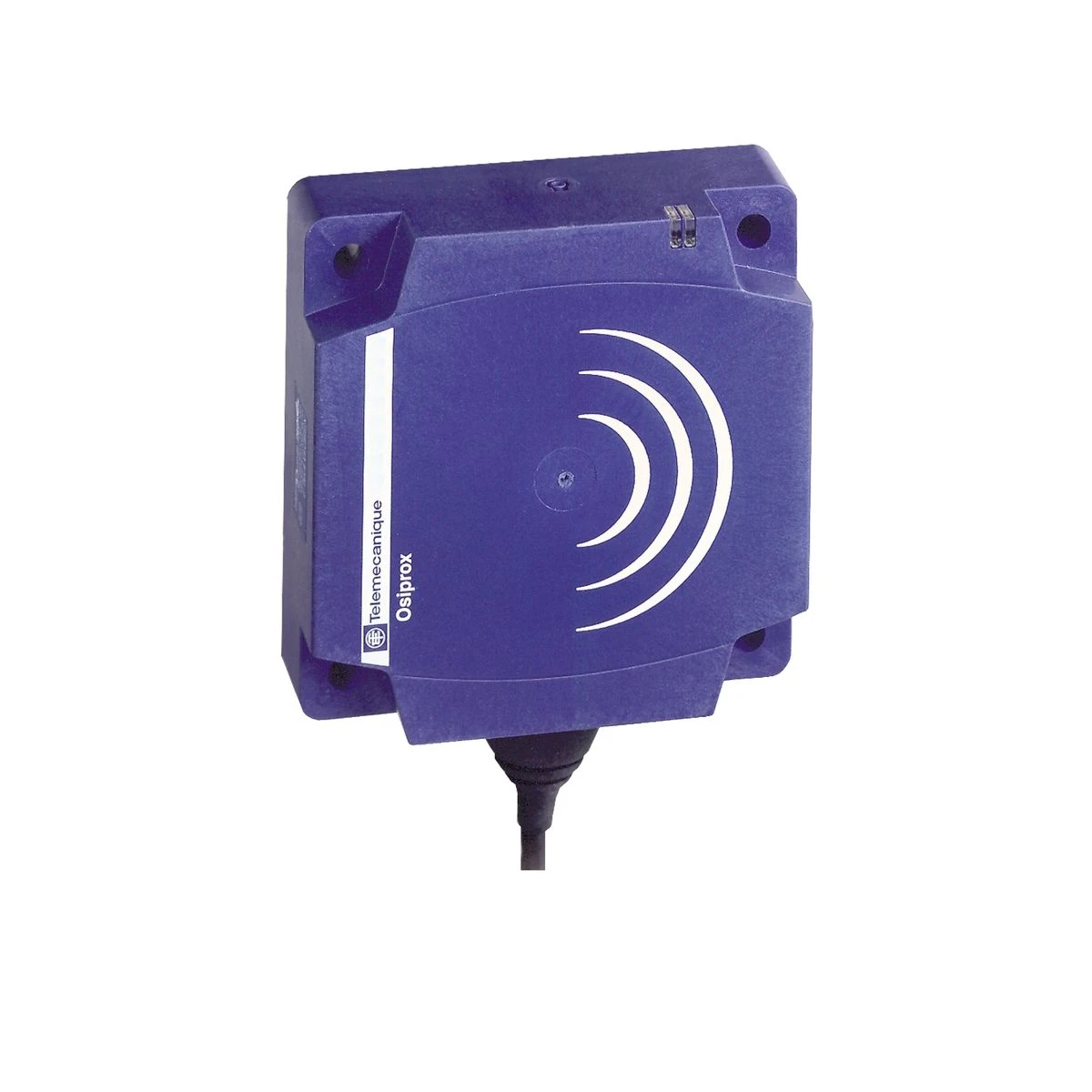

XS7D1A1DBL2 - Inductive proximity sensors XS, inductive sensor XS7 80x80x26, PBT, Sn40mm, 12...24 VDC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

68,84 €

Text About:

Inductive proximity sensors XS, inductive sensor XS7 80x80x26, PBT, Sn40mm, 12...24 VDC, cable 2 m - Schneider Electric

In cart

68,84 €

SPECIFICATIONS

Main

Body type Fixed

cable length 2 m

Series name General purpose

sensor name XS7

Complementary

cable composition 2 x 0.34 mm²

Product certifications C-Tick
UL
Ecolab
CSA

Handle front plate colour 80 mm

[us] rated supply voltage 12...24 V DC with reverse polarity protection

maximum residual current 0.5 mA open state

maximum voltage drop <4 V (closed)

detection face Frontal

marking CE

Device application -

Discrete output function 1 NC

Enclosure material PBT

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Plastic

width (w) 80 mm

supply voltage limits 10…36 V DC

switching frequency <= 100 Hz

Net weight 0.34 kg

Maximum delay first up 10 ms

Maximum delay recovery 10 ms

switching capacity in ma 1.5...100 mA DC with overload and short-circuit protection

depth 26 mm

Maximum delay response 10 ms

Front material PBT

electrical connection Cable

output circuit type DC

Operating zone 0…32 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Flat form 80 x 80 x 26

Status led Output state: 1 LED (yellow)

Wiring technique 2-wire

Size 26 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68 double insulation conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
