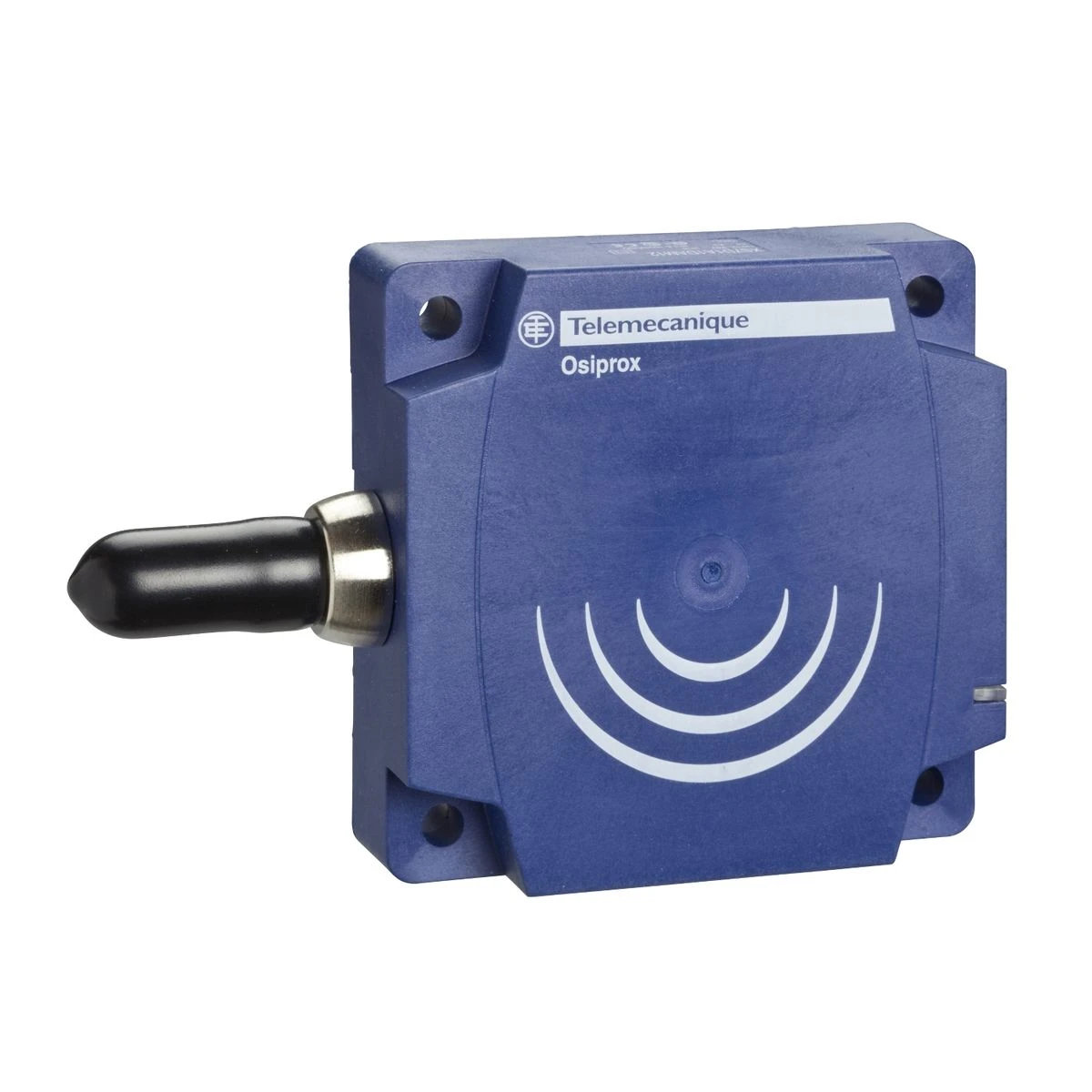

XS7D1A1CAM12DIN - Inductive proximity sensors XS, inductive sensor XS7 80x80x26, PBT, Sn40mm, 12...24 VDC, M12 - Schneider Electric

Expected in 2-4 weeks

79,39 €

Text About:

Inductive proximity sensors XS, inductive sensor XS7 80x80x26, PBT, Sn40mm, 12...24 VDC, M12 - Schneider Electric

In cart

79,39 €

SPECIFICATIONS

Main

Body type Fixed clippable onto DIN rail

Series name General purpose

sensor name XS7

Complementary

Product certifications UL
CSA
C-Tick

Handle front plate colour 80 mm

[us] rated supply voltage 12...24 V DC with reverse polarity protection

maximum residual current 0.5 mA open state

maximum voltage drop <4 V (closed)

detection face Frontal

marking CE

Device application -

Discrete output function 1 NO

Enclosure material PBT

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Plastic

width (w) 80 mm

supply voltage limits 10…36 V DC

switching frequency <= 100 Hz

Maximum delay first up 10 ms

Maximum delay recovery 10 ms

switching capacity in ma 1.5...100 mA DC with overload and short-circuit protection

depth 40 mm

Maximum delay response 10 ms

Front material PBT

electrical connection Male connector M12, 4 pins

output circuit type DC

Operating zone 0…32 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Flat form 80 x 80 x 26

Status led Output state: 1 LED (yellow)

Wiring technique 2-wire

Size 40 mm

Type of output signal Discrete

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP67 double insulation conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
