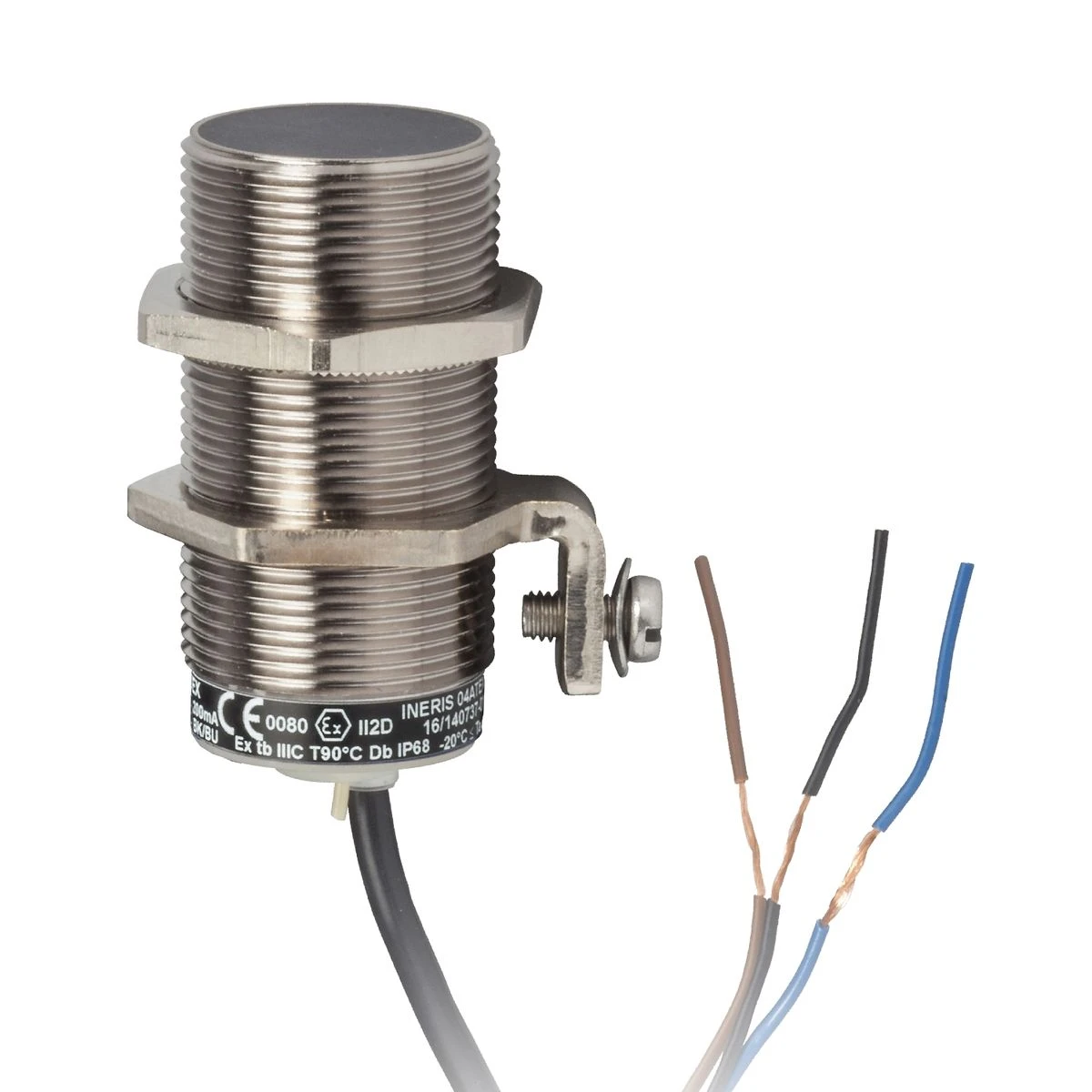

XS630B1PAL10EX - Inductive proximity sensors XS ATEX D, inductive sensor hazardous area, M30, Sn15mm, 12...48 VDC, NO - Schneider Electric

Expected in 2-4 weeks

174,47 € excl. VAT

212,85 € incl. VAT

Text About:

Inductive proximity sensors XS ATEX D, inductive sensor hazardous area, M30, Sn15mm, 12...48 VDC, NO - Schneider Electric

In cart

212,85 €

SPECIFICATIONS

Main

Body type Fixed

cable length 10 m

Series name Application

sensor name XS6

Complementary

[sn] nominal sensing distance 15 mm

cable composition 3 x 0.34 mm²

length [l] 62 mm

Product certifications INERIS 04ATEX0022
IEC-Ex INE 17.0006

[us] rated supply voltage 12...48 V DC with reverse polarity protection

Current consumption <= 10 mA no-load

maximum voltage drop <2 V (closed state)

detection face Frontal

marking II2 D-Ex tb IIIC T90°C Db IP68

Device application ATEX dust

Discrete output function 1 NO

Enclosure material Nickel plated brass

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Metal

supply voltage limits 10…58 V DC

switching frequency <= 500 Hz

Discrete output type PNP

Maximum delay first up 10 ms

Maximum delay recovery 1.4 ms

switching capacity in ma <= 200 mA with overload and short-circuit protection

Maximum delay response 0.6 ms

Front material PPS

thread type M30 x 1.5

electrical connection Cable

output circuit type DC

Operating zone 0…12 mm

Sensing range > 8...15 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M30

Status led Output state: 1 LED (yellow)

Threaded length 52 mm

Wiring technique 3-wire

Size 30 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Directives 2014/34/EU - ATEX directive

ip degree of protection IP68 conforming to IEC 60529
IP69K

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -20…60 °C

Dust zone Zone 21 - 22

Environmental characteristics Hazardous location

standards EN/IEC 60079-31
EN/IEC 60079-0

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
