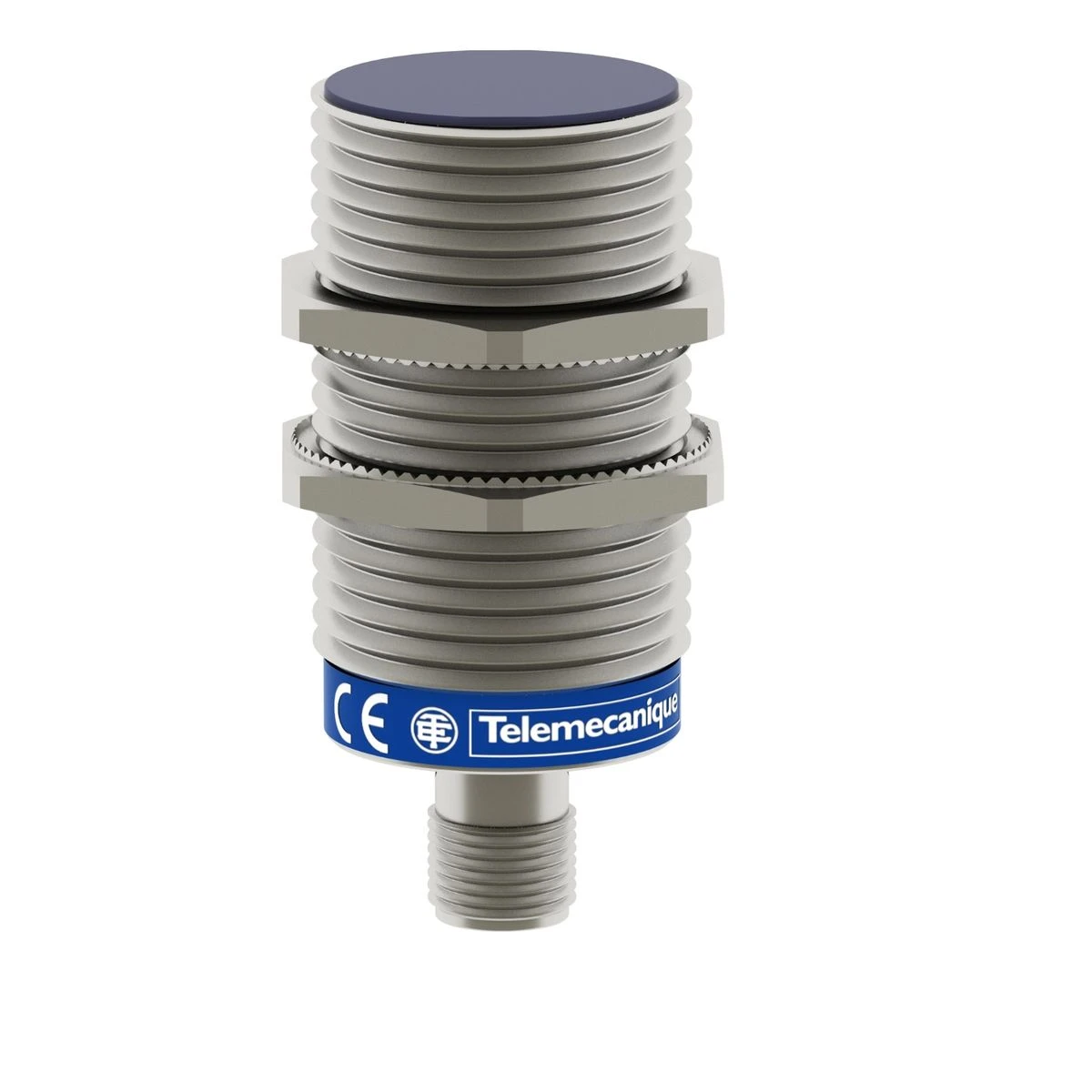

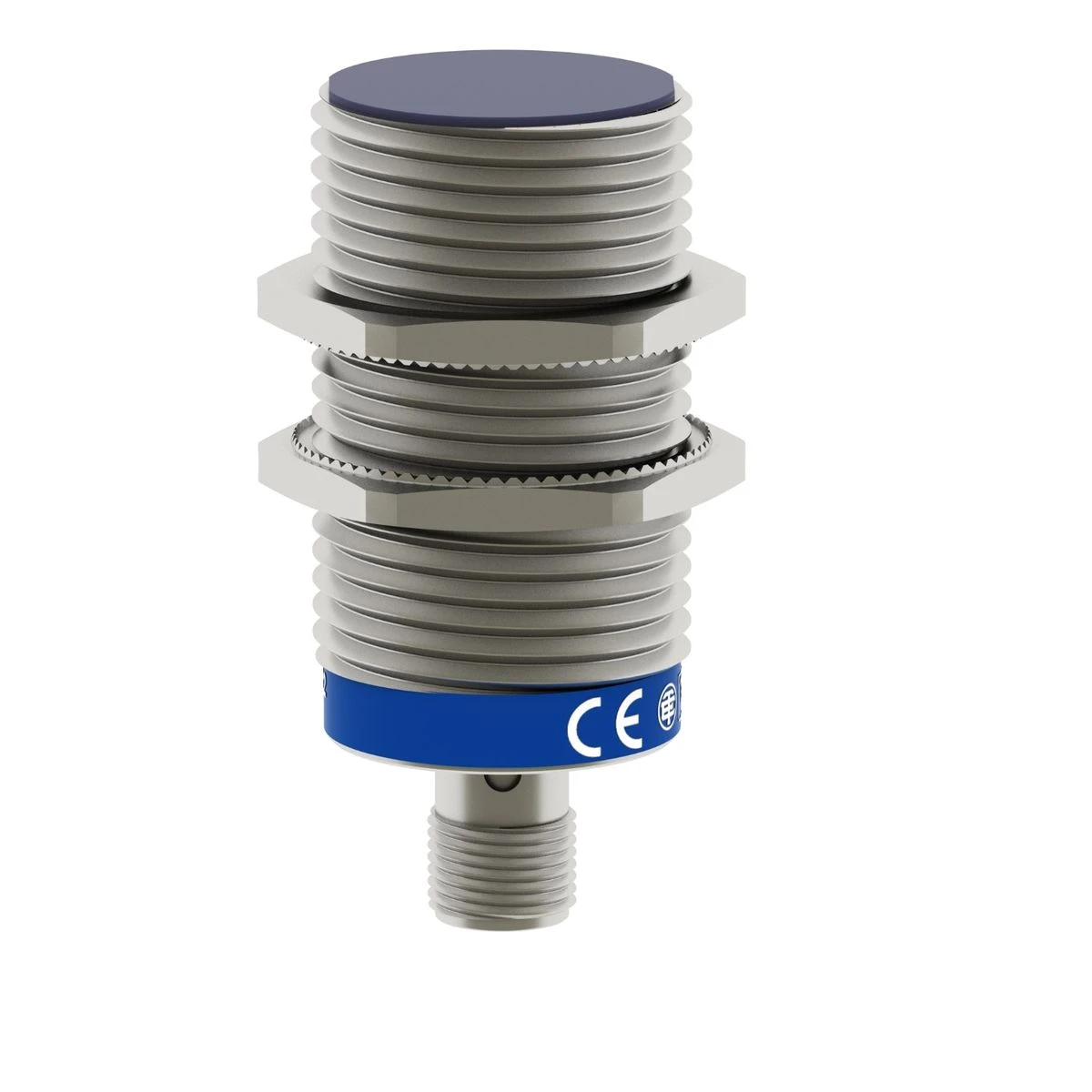

XS630B1NAM12 - Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn15mm, 12...48 VDC, M12 - Telemecanique

Pending restock

XS630B1NAM12 - Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn15mm, 12...48 VDC, M12 - Telemecanique

Text About:

Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn15mm, 12...48 VDC, M12 - Telemecanique

SPECIFICATIONS

Main

Body type Fixed

Series name General purpose

sensor name XS6

Complementary

[sn] nominal sensing distance 15 mm

length [l] 74 mm

Product certifications CSA
UL
E2

[us] rated supply voltage 12...48 V DC with reverse polarity protection

Current consumption <= 10 mA no-load

maximum voltage drop <2 V (closed)

detection face Frontal

marking CE

Device application Mobile equipment

Discrete output function 1 NO

Enclosure material Nickel plated brass

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Metal

supply voltage limits 10…58 V DC

switching frequency <= 500 Hz

Net weight 0.15 kg

Discrete output type NPN

Maximum delay first up 10 ms

Maximum delay recovery 1.4 ms

switching capacity in ma <= 200 mA DC with overload and short-circuit protection

Maximum delay response 0.6 ms

Front material PPS

thread type M30 x 1.5

electrical connection Male connector M12, 4 pins

output circuit type DC

Operating zone 0…12 mm

Sensing range > 8...15 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M30

Status led Output state: 1 LED (yellow)

Threaded length 52 mm

Wiring technique 3-wire

Size 74 mm

Type of output signal Discrete

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP67 conforming to IEC 60529
IP69K conforming to DIN 40050

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
