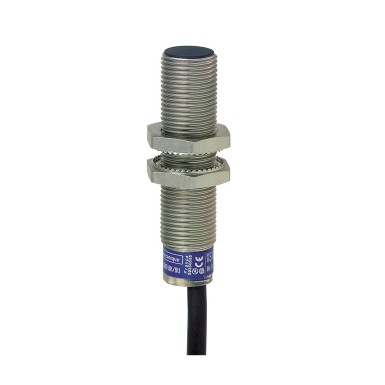

XS612B1NAL2 - Inductive proximity sensors XS, inductive sensor XS6 M12, L54mm, brass, Sn4mm, 12...48 VDC, cable 2 m - Schneider Electric
Expected in 2-4 weeks
EAN: 3389110146264
23,08 €
Text About:
Inductive proximity sensors XS, inductive sensor XS6 M12, L54mm, brass, Sn4mm, 12...48 VDC, cable 2 m - Schneider Electric
SPECIFICATIONS
Main
product range
Détecteurs de proximité inductifs Telemecanique XS
detector mounting capacity
Encastrable
range name
Universel
sensor shape
Cylindrique M12
cable length
2 m
logic output
1 "F"
sensor name
XS6
nominal range
4 mm
Complementary
[un] rated nominal voltage
12...48 V CC avec protection contre l'inversion de polarité
application
Équipement mobile
cable composition
3 x 0,34 mm²
power consumption
<= 10 mA sans charge
length [l]
54 mm
area of operation
0…3,2 mm
thread length
42 mm
case material
Laiton plaqué nickel
dimension
54 mm
maximum voltage drop
<2 V (fermé)
detection face
Frontal
matter
Métal
product weight
0,075 kg
marking
CE
led status
État sortie: 1 LED (jaune)
connection mode
À 3 fils
crankcase type
Fixe
isolation
PvR
supply voltage limits
10…58 V CC
switching frequency
<= 2500 Hz
output signal type
Numérique
differential course
1…15% du sr
front panel material
PPS
switching capacity in ma
<= 200 mA CC avec protection contre les surcharges et courts-circuits
maximum recovery delay
0,2 ms
scope
> 2,5…4 mm
maximum response delay
0,2 ms
delay to maximum availability
10 ms
thread type
M12 x 1
electrical connection
Sur plage
output circuit type
CC
type of sensor
Détecteur de proximité inductif
logic output type
NPN
Environment
ip degree of protection
Double isolation IP68 se conformer à CEI 60529
IP69K se conformer à DIN 40050
IP69K se conformer à DIN 40050
product certificates
E2
CSA
UL
CSA
UL
operating ambient temperature
-25…70 °C
storage room temperature
-40…85 °C
mechanical shock resistance
50 gn pour 11 ms se conformer à CEI 60068-2-27
vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) se conformer à CEI 60068-2-6
