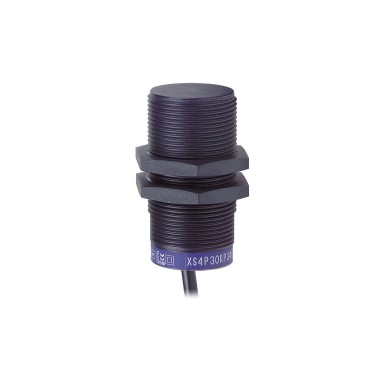

XS4P30PA370 - Inductive proximity sensors XS, inductive sensor XS4 M30, L62mm, PPS, Sn15mm, 12...48 VDC, cable 2 m - Schneider Electric

Expected in 2-4 weeks EAN: 3389110927085

EAN: 3389110927085

35,98 € excl. VAT

43,90 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS4 M30, L62mm, PPS, Sn15mm, 12...48 VDC, cable 2 m - Schneider Electric

In cart

43,90 €

SPECIFICATIONS

Main

product range Détecteurs de proximité inductifs Telemecanique XS

detector mounting capacity Non encastrable

range name Universel

sensor shape Cylindrique M30

cable length 2 m

logic output 1 "F"

sensor name XS4

nominal range 15 mm

Complementary

[un] rated nominal voltage 12...48 V CC avec protection contre l'inversion de polarité

cable composition 3 x 0,34 mm²

power consumption 0…10 mA sans charge

length [l] 62 mm

area of operation 0…12 mm

Handle front plate colour 30 mm

thread length 52 mm

case material PPS

dimension 62 mm

maximum voltage drop <2 V (fermé)

detection face Frontal

matter Plastique

marking CE

led status État sortie: 1 LED (jaune)

connection mode À 3 fils

crankcase type Fixe

isolation PvR

supply voltage limits 10…58 V CC

switching frequency <= 1000 Hz

output signal type Numérique

differential course 1…15% du sr

front panel material PPS

switching capacity in ma <= 200 mA CC avec protection contre les surcharges et courts-circuits

maximum recovery delay 0,7 ms

maximum response delay 0,3 ms

delay to maximum availability 10 ms

thread type M30 x 1,5

electrical connection Sur plage

output circuit type CC

type of sensor Détecteur de proximité inductif

logic output type PNP

Environment

ip degree of protection Double isolation IP68 se conformer à CEI 60529

product certificates UL
CSA
CCC
Ecolab

operating ambient air temperature -25…70 °C

storage room temperature -40…85 °C

mechanical shock resistance 50 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) se conformer à CEI 60068-2-6
