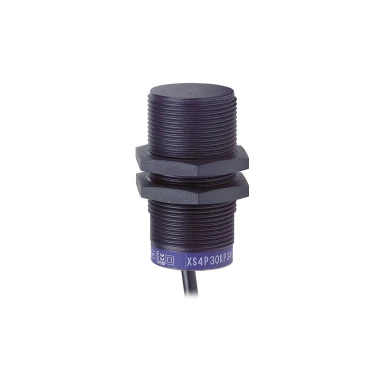

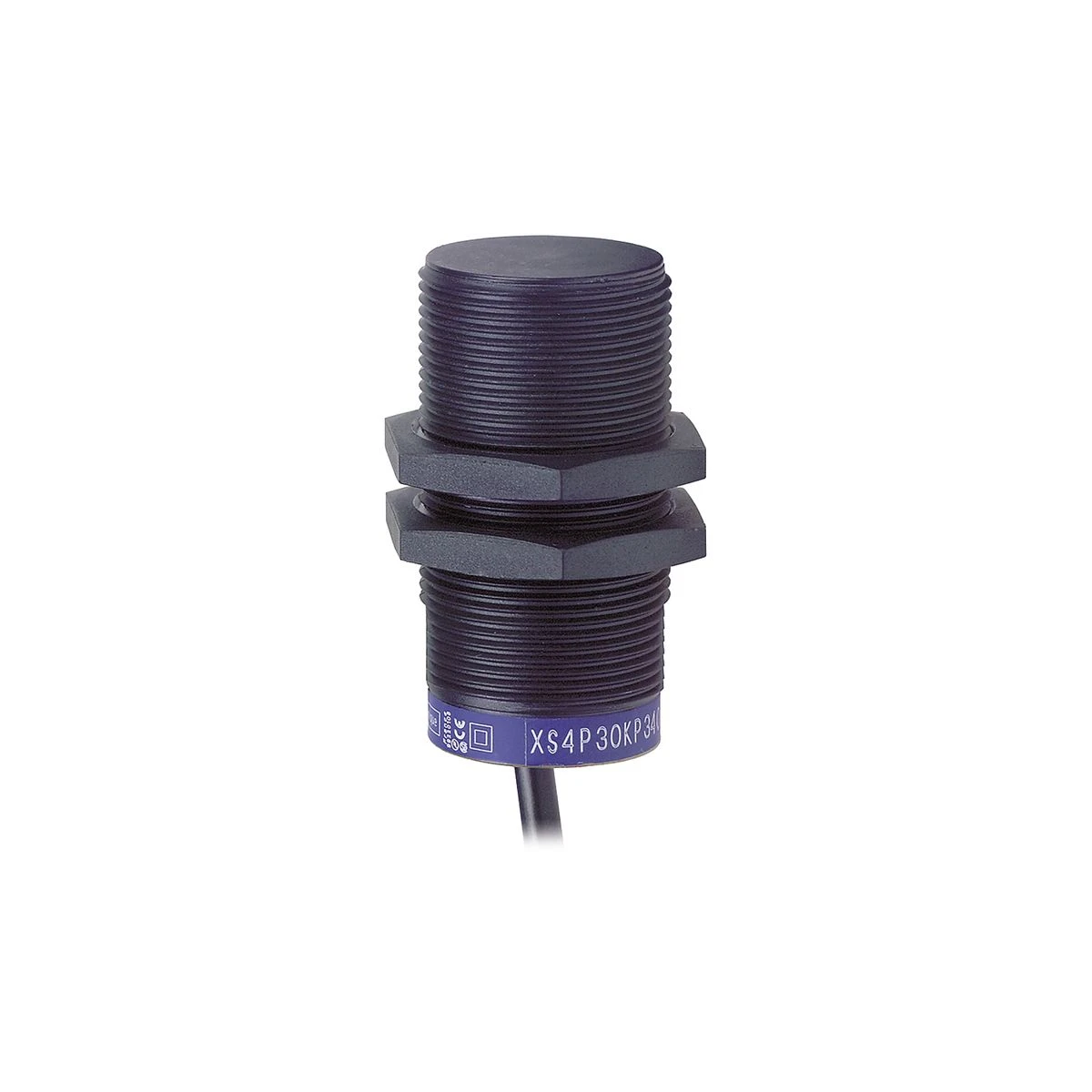

XS4P30MA230 - Inductive proximity sensors XS, inductive sensor XS4 M30, L62mm, PPS, Sn15mm, 24...240VAC/DC, cable 2 m - Schneider Electric

Expected in 2-4 weeks EAN: 3389110913026

EAN: 3389110913026

64,06 € excl. VAT

78,16 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS4 M30, L62mm, PPS, Sn15mm, 24...240VAC/DC, cable 2 m - Schneider Electric

In cart

78,16 €

SPECIFICATIONS

Main

product range Détecteurs de proximité inductifs Telemecanique XS

detector mounting capacity Non encastrable

range name Universel

sensor shape Cylindrique M30

cable length 2 m

logic output 1 "F"

sensor name XS4

nominal range 15 mm

Complementary

[un] rated nominal voltage 24…240 V CA/CC 50/60 Hz

cable composition 2 x 0,34 mm²

length [l] 62 mm

area of operation 0…12 mm

Handle front plate colour 30 mm

thread length 52 mm

case material PPS

dimension 62 mm

maximum residual current 0,6 mA état ouvert

maximum voltage drop <5,5 V (fermé)

detection face Frontal

matter Plastique

marking CE

led status État sortie: 1 LED (jaune)

connection mode 2 fils

crankcase type Fixe

isolation PvR

supply voltage limits 20…264 V CA/CC

switching frequency <= 1000 Hz CC
<= 25 Hz CA

output signal type Numérique

differential course 1…15% du sr

front panel material PPS

switching capacity in ma 5…200 mA CC
5…300 mA CA

maximum recovery delay 0,4 ms

maximum response delay 0,2 ms

delay to maximum availability 40 ms

thread type M30 x 1,5

electrical connection Sur plage

output circuit type CA/CC

type of sensor Détecteur de proximité inductif

Environment

ip degree of protection Double isolation IP68 se conformer à CEI 60529

product certificates CCC
Ecolab
UL
CSA

operating ambient temperature -25…70 °C

storage room temperature -40…85 °C

mechanical shock resistance 50 gn pour 11 ms se conformer à CEI 60068-2-27

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) se conformer à CEI 60068-2-6
