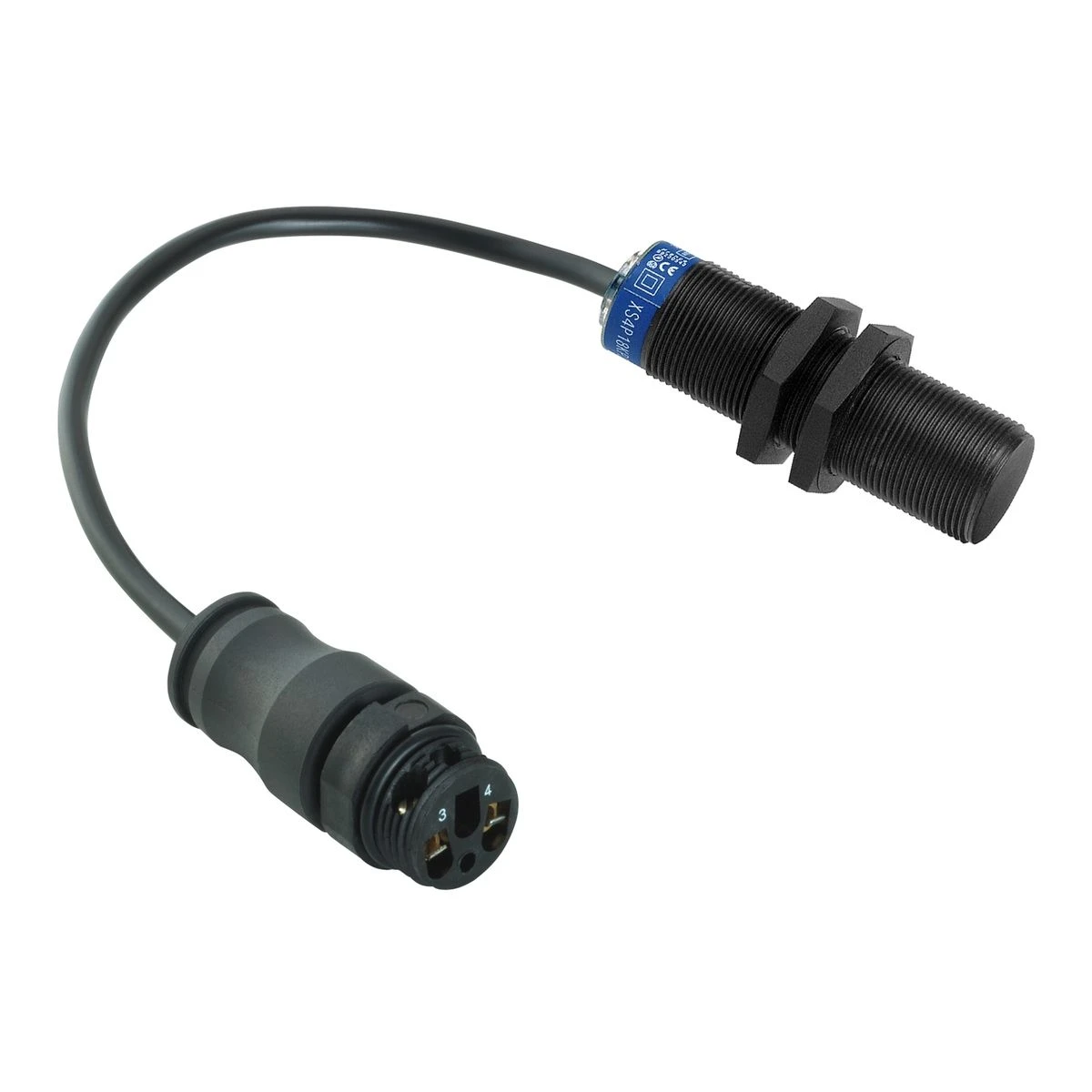

XS4P18MA230L01B - Inductive proximity sensors XS, inductive sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, term. 0.15 m - Schneider Electric

Expected in 2-4 weeks

114,31 €

Text About:

Inductive proximity sensors XS, inductive sensor XS4 M18, L62mm, PPS, Sn8mm, 24...240VAC/DC, term. 0.15 m - Schneider Electric

In cart

114,31 €

SPECIFICATIONS

Main

Body type Fixed

cable length 0.15 m

Series name General purpose

sensor name XS4

Complementary

[sn] nominal sensing distance 8 mm

cable composition 2 x 0.34 mm²

length [l] 62 mm

Product certifications CCC
UL
CSA

Handle front plate colour 22 mm

[us] rated supply voltage 24...240 V AC/DC 50/60 Hz

maximum residual current 0.6 mA open state

maximum voltage drop <5.5 V (closed)

detection face Frontal

marking CE

Discrete output function 1 NO

Enclosure material PPS

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Plastic

supply voltage limits 20…264 V AC/DC

switching frequency <= 2000 Hz DC
<= 25 Hz AC

Net weight 0.05 kg

Maximum delay first up 40 ms

Maximum delay recovery 0.2 ms

switching capacity in ma 5...200 mA DC
5...300 mA AC

Maximum delay response 0.2 ms

Front material PPS

thread type M18 x 1

electrical connection Remote male connector screw-clamp terminals

output circuit type AC/DC

Operating zone 0…6.4 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M18

Threaded length 52 mm

Wiring technique 2-wire

Size 62 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
