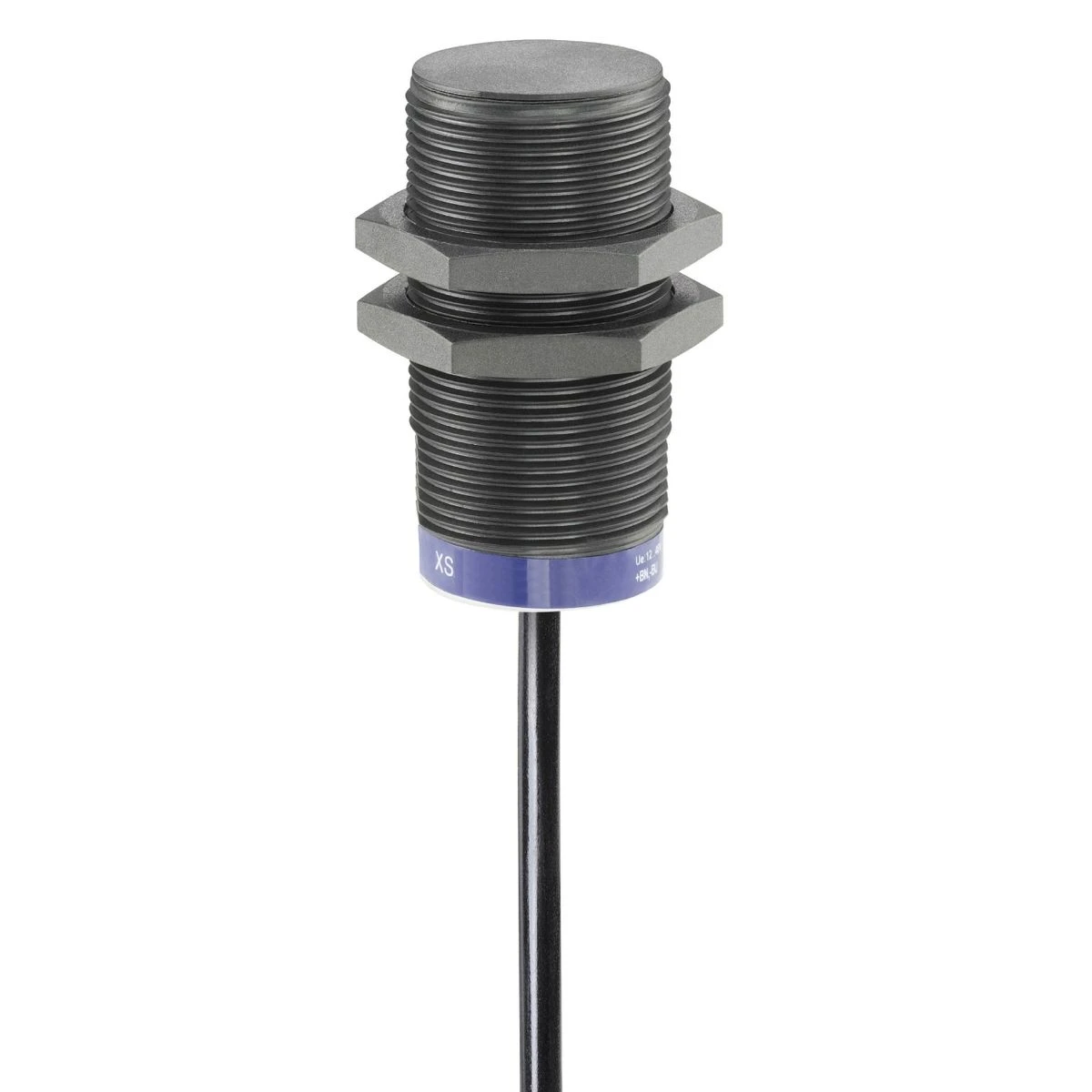

XS4P18AB110L1 - Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 24...48 VDC, cable 5 m - Schneider Electric

Expected in 2-4 weeks

113,06 €

Text About:

Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 24...48 VDC, cable 5 m - Schneider Electric

In cart

113,06 €

SPECIFICATIONS

Main

Body type Fixed

cable length 5 m

Series name Application

sensor name XS4

Complementary

[sn] nominal sensing distance 8 mm

cable composition 3 x 0.34 mm²

length [l] 41 mm

Product certifications CSA
CCC
UL

Analogue output range 0...10 V

[us] rated supply voltage 24...48 V DC

Current consumption 4 mA no-load

detection face Frontal

marking CE

Enclosure material PBT

Detector flush mounting acceptance Non flush mountable

Material Plastic

supply voltage limits 15…58 V DC

switching frequency <= 500 Hz

Electrical circuit type Analog output

repeat accuracy <= 3% of Sr

Front material PPS

Maximum output current drift 10 %

thread type M18 x 1

electrical connection Cable

output circuit type DC

linearity error +/- 2 mA

Operating zone 0.8…8 mm

Sensor type Inductive proximity sensor

Sensor design Cylindrical M18

Threaded length 26 mm

Wiring technique 3-wire

Size 41 mm

Type of output signal Analogue

Wire insulation material PvR

Environment

ip degree of protection IP67 conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C
