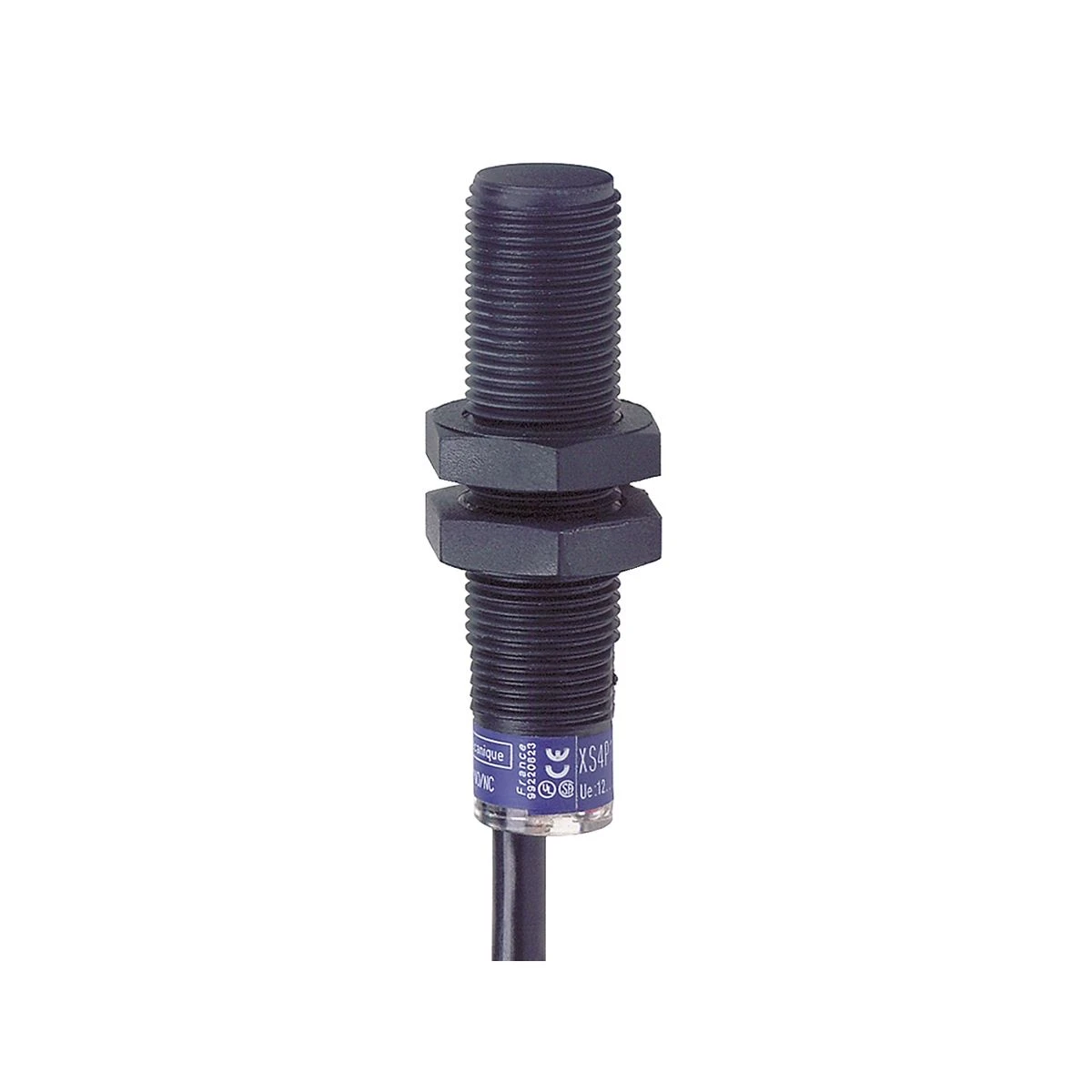

XS4P12NA370 - Inductive proximity sensors XS, inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 12...48 VDC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

54,33 € excl. VAT

66,28 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS4 M12, L52mm, PPS, Sn4mm, 12...48 VDC, cable 2 m - Schneider Electric

In cart

66,28 €

SPECIFICATIONS

Main

Body type Fixed

cable length 2 m

Series name General purpose

sensor name XS4

Complementary

[sn] nominal sensing distance 4 mm

cable composition 3 x 0.34 mm²

length [l] 52 mm

Product certifications UL
Ecolab
CSA
CCC

Handle front plate colour 12 mm

[us] rated supply voltage 12...48 V DC with reverse polarity protection

Current consumption 0...10 mA no-load

maximum voltage drop <2 V (closed)

detection face Frontal

marking CE

Discrete output function 1 NO

Enclosure material PPS

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Plastic

supply voltage limits 10…58 V DC

switching frequency <= 5000 Hz

Net weight 0.065 kg

Discrete output type NPN

Maximum delay first up 10 ms

Maximum delay recovery 0.1 ms

switching capacity in ma <= 200 mA DC with overload and short-circuit protection

Maximum delay response 0.1 ms

Front material PPS

thread type M12 x 1

electrical connection Cable

output circuit type DC

Operating zone 0…3.2 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M12

Status led Output state: 1 LED (yellow)

Threaded length 42 mm

Wiring technique 3-wire

Size 52 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68 double insulation conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
