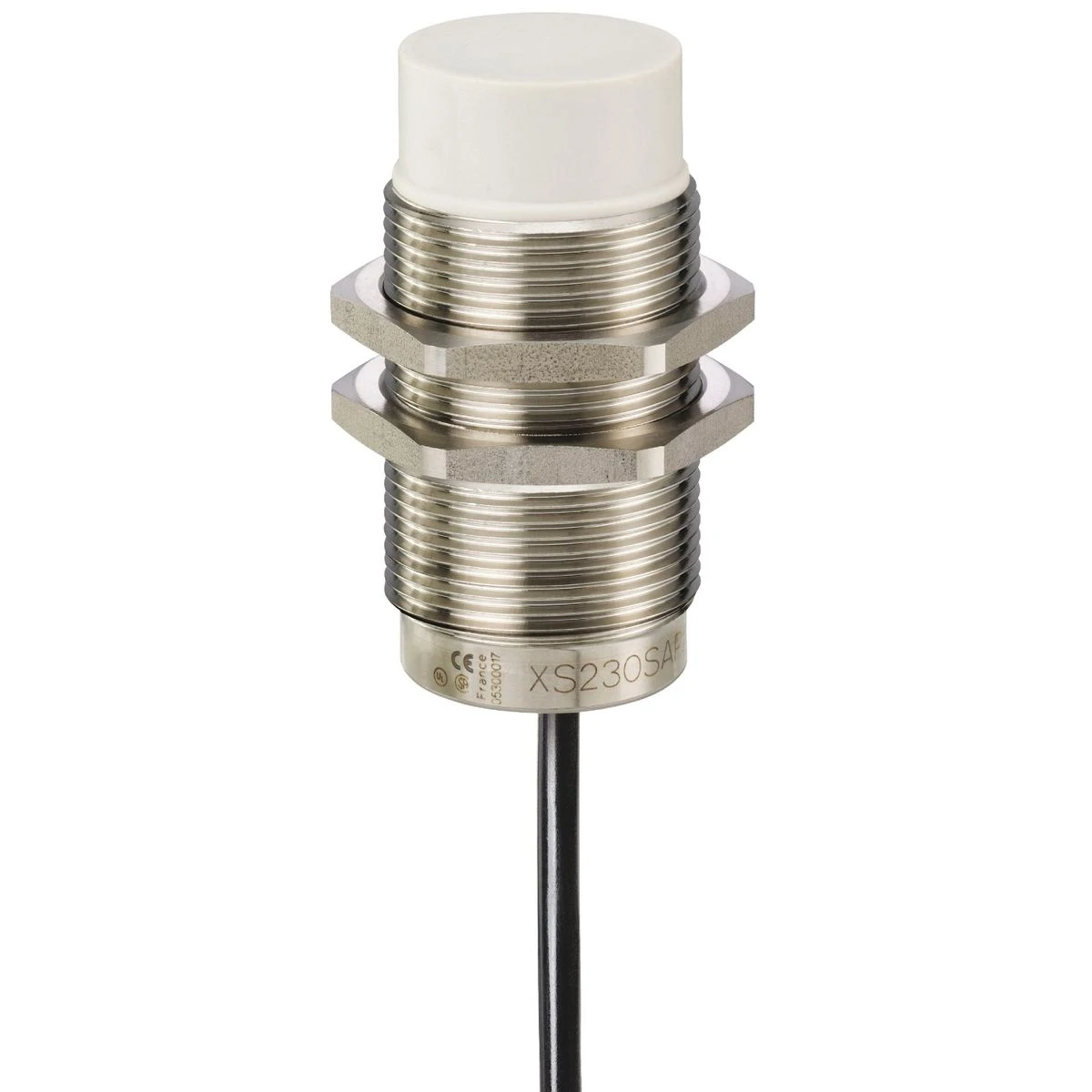

XS230SAMAL10 - Inductive proximity sensors XS, inductive sensor XS2 M30, L63mm, stainless, Sn22mm, 24...240VAC/DC, L10m - Schneider Electric

Expected in 2-4 weeks

153,23 € excl. VAT

186,94 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS2 M30, L63mm, stainless, Sn22mm, 24...240VAC/DC, L10m - Schneider Electric

In cart

186,94 €

SPECIFICATIONS

Main

Body type Fixed

cable length 10 m

Series name Application

sensor name XS2

Complementary

[sn] nominal sensing distance 22 mm

cable composition 2 x 0.34 mm²

length [l] 63 mm

Product certifications CSA
UL
CCC

[us] rated supply voltage 24...240 V AC 50/60 Hz
24...240 V DC

market segment Pharmaceutical

maximum residual current 0.8 mA open state

maximum voltage drop <5.5 V (closed)

detection face Frontal

marking CE

Device application Food and beverage

Discrete output function 1 NO

Enclosure material Stainless steel 316 L

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Stainless steel

supply voltage limits 20…264 V AC/DC

switching frequency <= 25 Hz AC
<= 300 Hz DC

Net weight 0.525 kg

Maximum delay first up 30 ms

Maximum delay recovery 2 ms

switching capacity in ma 5...200 mA DC
5...300 mA AC

Maximum delay response 0.5 ms

Front material PPS

thread type M30 x 1.5

electrical connection Cable

output circuit type AC/DC

Operating zone 0…17.6 mm

Sensing range > 15...40 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M30

Status led Output state: 1 LED (yellow)

Threaded length 41 mm

Wiring technique 2-wire

Size 63 mm

Type of output signal Discrete

Wire insulation material PVC

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…85 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
