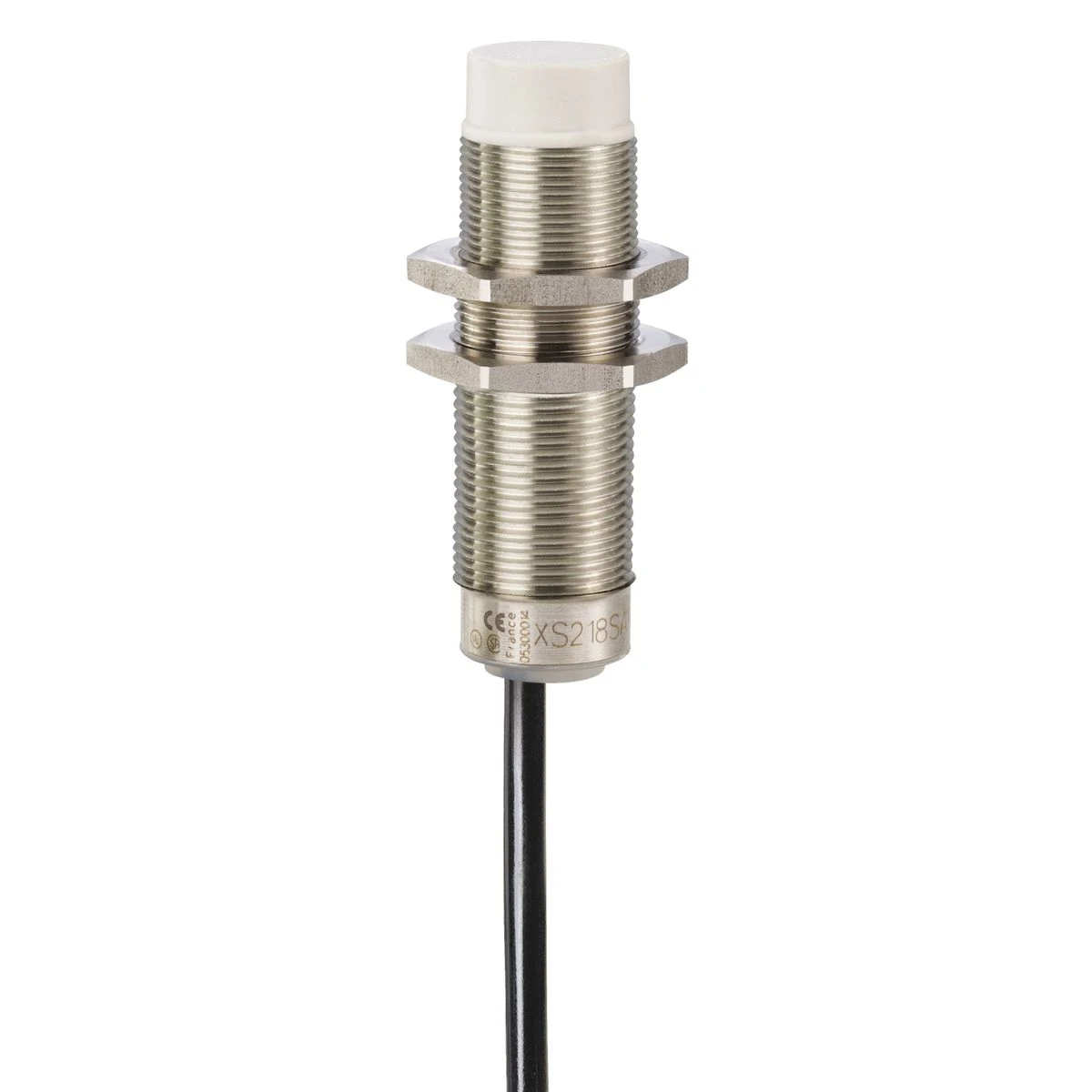

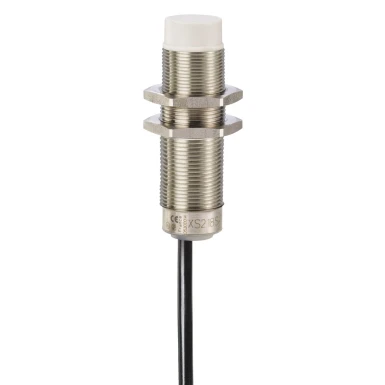

XS218SAMAL2 - Inductive proximity sensors XS, inductive sensor XS2 M18, L60mm, stainless, Sn12mm, 24...240VAC/DC, cable 2 m - Schneider Electric

Expected in 2-4 weeks

118,53 € excl. VAT

144,61 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS2 M18, L60mm, stainless, Sn12mm, 24...240VAC/DC, cable 2 m - Schneider Electric

In cart

144,61 €

SPECIFICATIONS

Main

Body type Fixed

cable length 2 m

Series name Application

sensor name XS2

Complementary

[sn] nominal sensing distance 12 mm

cable composition 2 x 0.34 mm²

length [l] 60 mm

Product certifications CSA
UL
CCC

[us] rated supply voltage 24...240 V AC 50/60 Hz
24...240 V DC

market segment Pharmaceutical

maximum residual current 0.8 mA open state

maximum voltage drop <5.5 V (closed)

detection face Frontal

marking CE

Device application Food and beverage

Discrete output function 1 NO

Enclosure material Stainless steel 316 L

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Stainless steel

supply voltage limits 20…264 V AC/DC

switching frequency <= 1000 Hz DC
<= 25 Hz AC

Net weight 0.12 kg

Maximum delay first up 30 ms

Maximum delay recovery 0.5 ms

switching capacity in ma 5...200 mA DC
5...300 mA AC

Maximum delay response 0.5 ms

Front material PPS

thread type M18 x 1

electrical connection Cable

output circuit type AC/DC

Operating zone 0…9.6 mm

Sensing range > 8...15 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M18

Status led Output state: 1 LED (yellow)

Threaded length 40 mm

Wiring technique 2-wire

Size 60 mm

Type of output signal Discrete

Wire insulation material PVC

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…85 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
