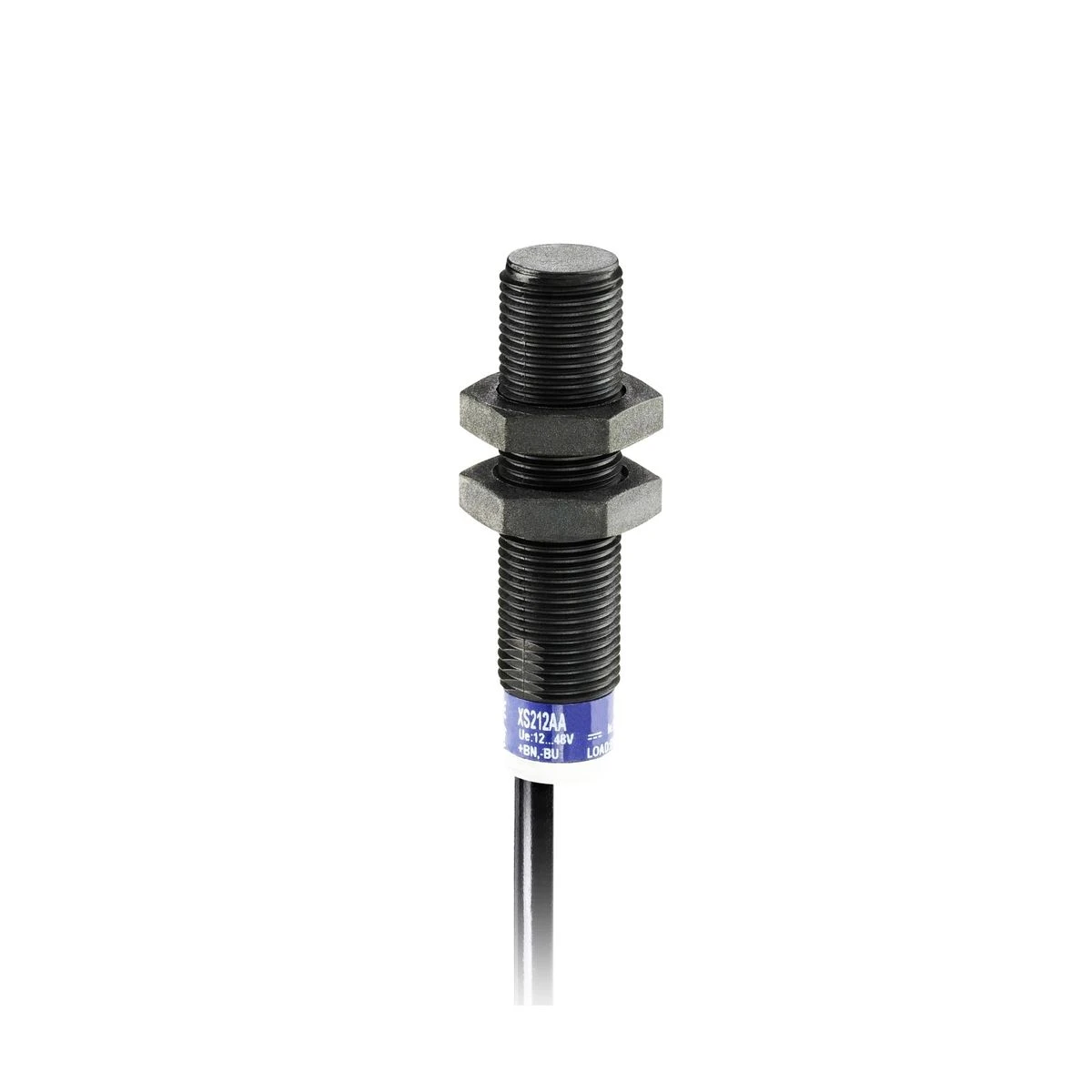

XS212AAPAL5 - Inductive proximity sensors XS, inductive sensor XS2 M12, L50mm, PPS, Sn7mm, 12...48 VDC, cable 5 m - Schneider Electric

Expected in 2-4 weeks

94,04 € excl. VAT

114,73 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS2 M12, L50mm, PPS, Sn7mm, 12...48 VDC, cable 5 m - Schneider Electric

In cart

114,73 €

SPECIFICATIONS

Main

Body type Fixed

cable length 5 m

Series name Application

sensor name XS2

Complementary

[sn] nominal sensing distance 7 mm

cable composition 3 x 0.34 mm²

length [l] 50 mm

Product certifications UL
CSA
CCC

[us] rated supply voltage 12...48 V DC with reverse polarity protection

Current consumption <= 10 mA no-load

market segment Pharmaceutical

maximum voltage drop <2 V (closed)

detection face Frontal

marking CE

Device application Food and beverage

Discrete output function 1 NO

Enclosure material PPS

Detector flush mounting acceptance Non flush mountable

Differential travel 1...15% of Sr

Material Plastic

supply voltage limits 10…58 V DC

switching frequency <= 2500 Hz

Net weight 0.185 kg

Discrete output type PNP

Maximum delay first up 10 ms

Maximum delay recovery 0.2 ms

switching capacity in ma <= 200 mA with overload and short-circuit protection

Maximum delay response 0.2 ms

Front material PPS

thread type M12 x 1

electrical connection Cable

output circuit type DC

Operating zone 0…5.6 mm

Sensing range > 4...8 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M12

Status led Output state: 1 LED (yellow)

Threaded length 42 mm

Wiring technique 3-wire

Size 50 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP68 double insulation conforming to IEC 60529
IP69K conforming to DIN 40050

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…85 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
