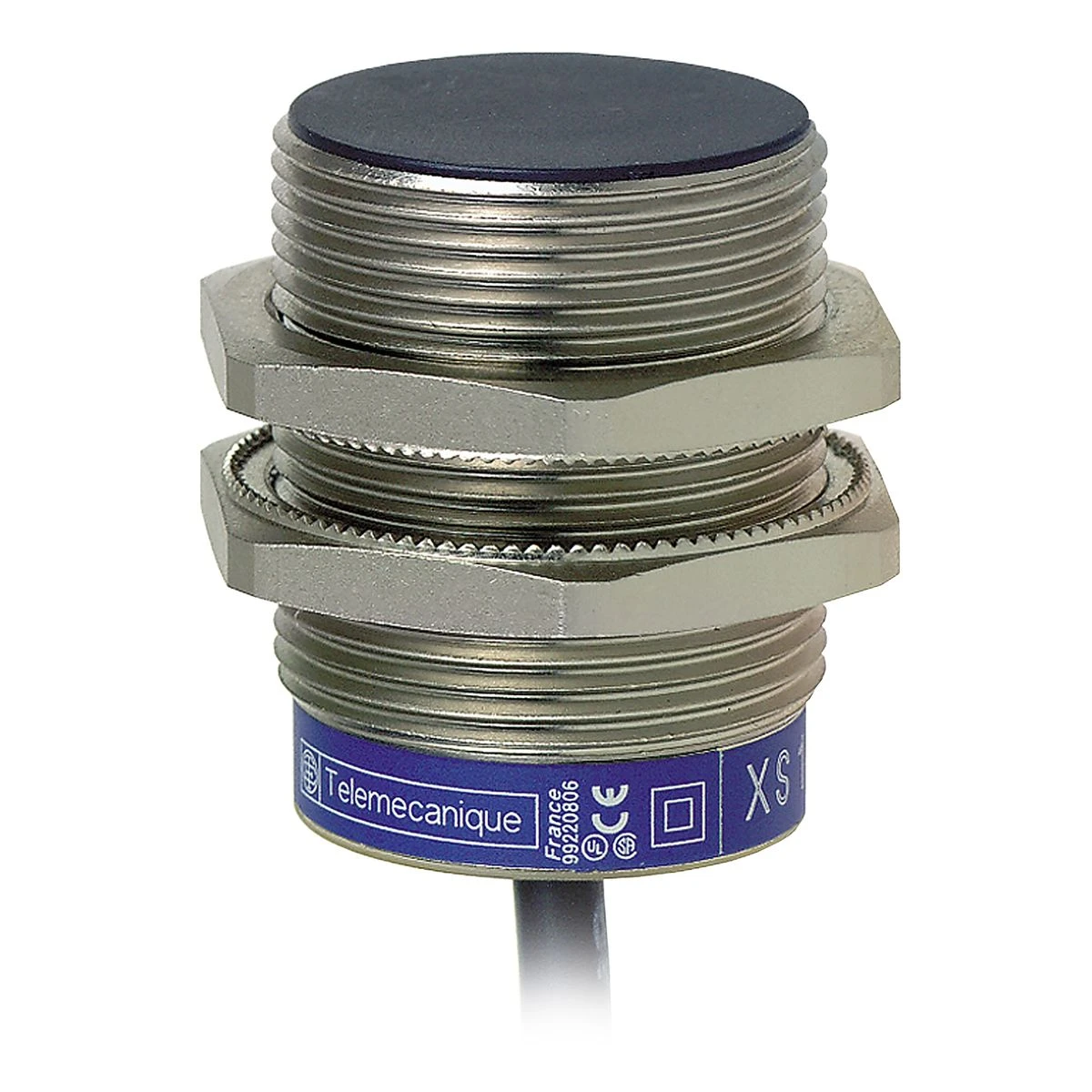

XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - Schneider Electric

Expected in 2-4 weeks
XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - Schneider Electric - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - Schneider Electric - 0
XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - Schneider Electric
168,71 € excl. VAT
209,21 € incl. VAT
Text About:
Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - Schneider Electric
209,21 €
SPECIFICATIONS
Main
Body type Fixed
service life 20 year(s)
cable length 5 m
Series name General purpose
sensor name XS1
Complementary
[sn] nominal sensing distance 10 mm
cable composition 4 x 0.22 mm²
length [l] 44 mm
Product certifications UL
E2
TÜV
CSA
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption 0...10 mA no-load
maximum voltage drop <2 V (closed)
detection face Frontal
marking CE
Device application Mobile equipment
Discrete output function 1 NO + 1 NC
Enclosure material Nickel plated brass
Detector flush mounting acceptance Flush mountable
safety reliability data MTTFd = 1810 years
PFHd = 62.9E-9 1/h
SFF = 92 %
DC = 74 % with appropriate safety controller
Differential travel 1...15% of Sr
Material Metal
supply voltage limits 9…36 V DC
switching frequency <= 1000 Hz
Net weight 0.28 kg
0.16 kg
Discrete output type PNP
Maximum delay first up 5 ms
Maximum delay recovery 0.7 ms
switching capacity in ma <= 200 mA with overload and short-circuit protection
Maximum delay response 0.3 ms
Front material PPS
thread type M30 x 1.5
electrical connection Cable
output circuit type DC
Operating zone 0…8 mm
Sensor type Inductive proximity sensor
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Safety level SIL 2 conforming to EN/IEC 61508
PL = d conforming to EN/ISO 13849-1
SILCL 2 conforming to IEC 62061
Sensor design Cylindrical M30
Status led Output state: 1 LED (yellow)
Threaded length 32 mm
Wiring technique 4-wire
Size 44 mm
Type of output signal Discrete
Wire insulation material PvR
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP68 conforming to IEC 60529
IP65
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -25…70 °C
standards IEC 62061
EN/ISO 13849-1
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m is formulated to satisfy the necessities of trade buyers, such as system integrators, wiring specialists, facility upkeep providers, and original manufacturers. XS1N30PC410L1 offers extraordinary quality and gain for professionals in the electrical engineering industry. This Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m and other Inductive And Capacitive Sensors XS & XT from Schneider Electric can be bought at the optimal price and fulfillment period through BaltElec website, a credible supplier meeting the needs of engineers in their provision needs.

Clients who have secured Schneider Electric Inductive And Capacitive Sensors XS & XT have frequently appreciated the brand's sturdiness. It has been indicated that the superior productivity of XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m extends to a collection of scenarios. Its supreme features make it great selection for various requirements. Your developed solution will excel in quality, energy-efficiency and price.

BALTELEC dedicates in addressing industrial and tertiary professionals’ needs. We know the customized standards and anticipations of our clients in the field. By collaborating with Baltelec team, our customers receive access to the best pricing and inventory of superior products like XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m from Schneider Electric at a competitive price. Our registered accounts take advantage of added discounts and dedicated support.

Start immediately and secure XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m at our risk-free and hassle-free internet shop. Don't delay in making this thoughtful choice that assures the utmost quality and addresses the defined expectations of traders like your firm.

If you encounter any concerns or concerns about XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m or any other Schneider Electric products, contact us or refer to our Frequently Asked Questions section below. We have gathered answers to common uncertainties to benefit you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, XS1N30PC410L1 - Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m from Schneider Electric is sure, thrifty, and high-quality to other brands in the Inductive And Capacitive Sensors XS & XT category. Feel free to make it a part of your infrastructure right now. Buy at Baltelec e-shop, your dependable vendor for all your Inductive And Capacitive Sensors XS & XT.

In our Baltelec.eu virtual store you will encounter Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m - XS1N30PC410L1 worth 205.83 €, which will be a safe and new solution for your needs. This product is developed by the Schneider Electric brand using the advanced technologies and adheres to the optimal standards of well-being and efficacy. We give articles from the Inductive And Capacitive Sensors XS & XT category that fuse endurance and workability, which is an top-notch decision for various functions. Despite of whether you desire apparatus for small manufacturing or for proficient industrial use, Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m will be a trustworthy aide in your job.

Baltelec endeavors to make the securing process as accessible and fast as accomplishable for our users. We offer detailed outlines and high-quality photos of Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m so that you can make an knowledgeable choice. A team of maestros is always ready to help you with any inquiries in the Inductive And Capacitive Sensors XS & XT section relevant to the selection and use of items. We are assured that Inductive sensor XS1 M30, L41mm, brass, Sn10mm, 12..24VDC, cable 5m will meet your hopes and become an significant element of your device for just 205.83 €.
