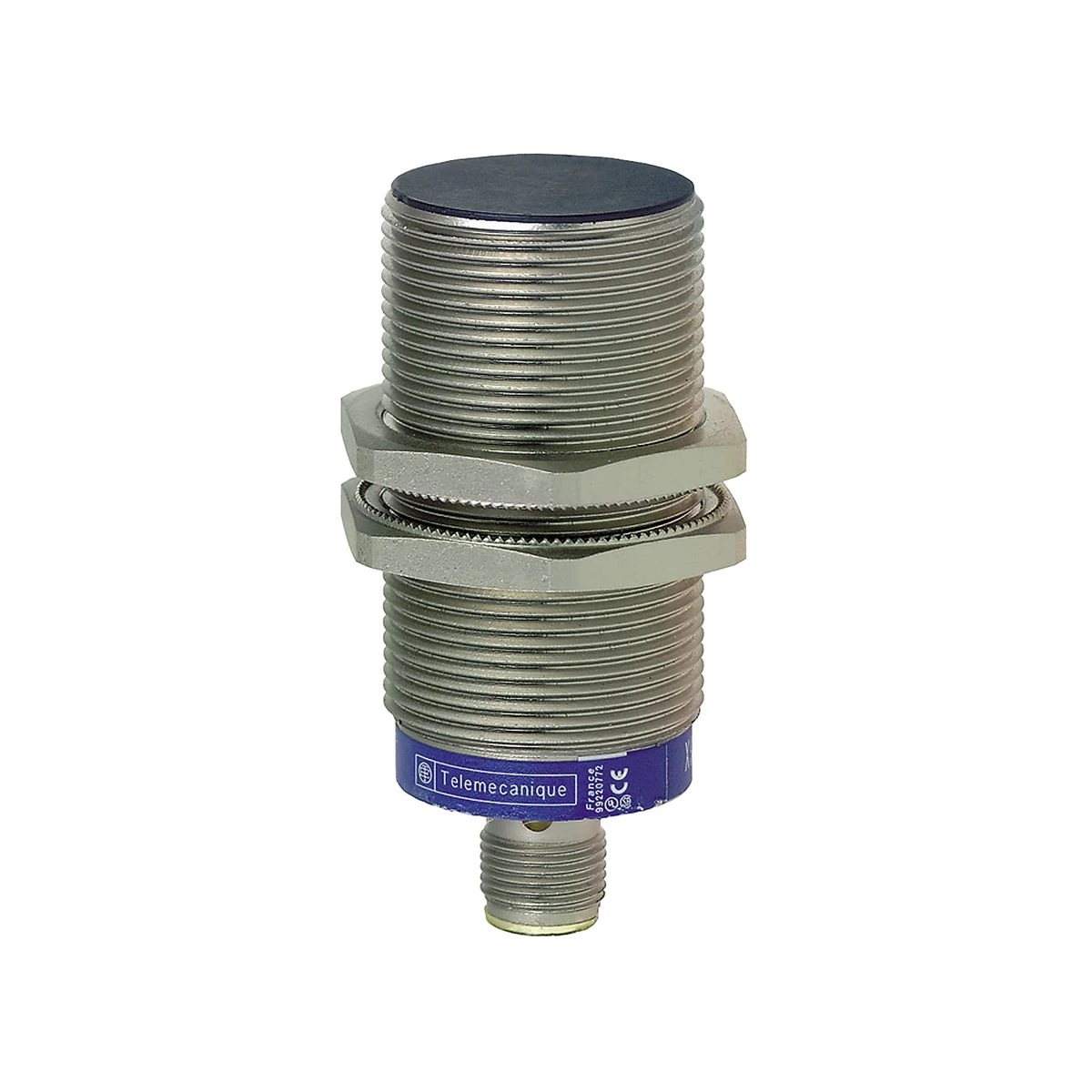

XS1M30MB250K - Inductive proximity sensors XS, inductive sensor XS1 M30, L72mm, brass, Sn10mm, 24...240VAC/DC, 1/2" - Schneider Electric

Expected in 2-4 weeks

108,03 € excl. VAT

131,80 € incl. VAT

Text About:

Inductive proximity sensors XS, inductive sensor XS1 M30, L72mm, brass, Sn10mm, 24...240VAC/DC, 1/2" - Schneider Electric

In cart

131,80 €

SPECIFICATIONS

Main

Body type Fixed

Wiring configuration 2-wire

Series name General purpose

sensor name XS1

Complementary

[sn] nominal sensing distance 10 mm

length [l] 72 mm

Product certifications CSA
CCC
UL

[us] rated supply voltage 24...210 V DC
24...240 V AC 50/60 Hz

maximum residual current 1.5 mA open state

maximum voltage drop <5.5 V (closed state)

detection face Frontal

marking CE

Device application 2-wire DC short-circuit protection

Discrete output function 1 NC

Enclosure material Nickel plated brass

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Metal

supply voltage limits 20…264 V AC/DC

switching frequency <= 2000 Hz DC
<= 25 Hz AC

Net weight 0.145 kg

Maximum delay first up 70 ms

Maximum delay recovery 5 ms

switching capacity in ma 5...300 mA AC with overload and short-circuit protection
5...200 mA DC with overload and short-circuit protection

Maximum delay response 2 ms

Front material PPS

thread type M30 x 1.5

electrical connection Male connector 1/2"20 UNF, 3 pins

output circuit type AC/DC

Operating zone 0…8 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-7

Sensor design Cylindrical M30

Status led Output state: 1 LED (yellow)
Supply on: 1 LED (green)

Threaded length 51 mm

Wiring technique 2-wire

Size 72 mm

Type of output signal Discrete

Protection type Short-circuit protection multi voltage

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP67 conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
