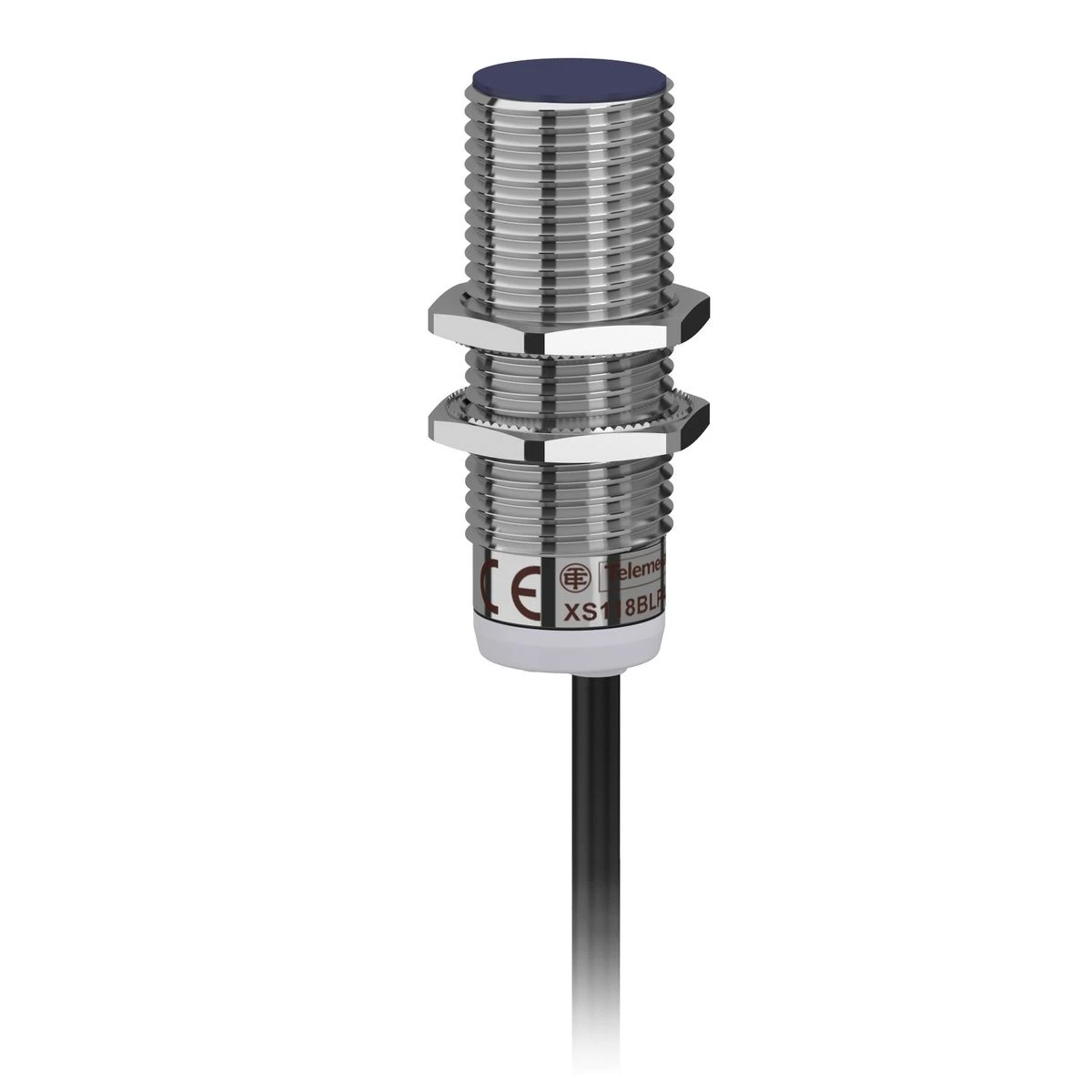

XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - Schneider Electric

Expected in 2-4 weeks
XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - Schneider Electric - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - Schneider Electric - 0
XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - Schneider Electric
26,20 € excl. VAT
32,48 € incl. VAT
Text About:
Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - Schneider Electric
32,48 €
SPECIFICATIONS
Main
Body type Fixed
cable length 5 m
Series name General purpose
sensor name XS1
Complementary
iso thread M18 x 1
[sn] nominal sensing distance 5 mm
cable composition 3 x 0.14 mm²
length [l] 53 mm
Product certifications UL
CSA
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption <= 10 mA no-load
maximum voltage drop <2 V (closed)
detection face Frontal
marking CE
Discrete output function 1 NO
Enclosure material Nickel plated brass
Detector flush mounting acceptance Flush mountable
Differential travel 1...15% of Sr
Material Metal
supply voltage limits 10…36 V DC
switching frequency <= 1200 Hz
Net weight 0.225 kg
Discrete output type PNP
Maximum delay first up 15 ms
Maximum delay recovery 0.3 ms
switching capacity in ma <= 200 mA with overload and short-circuit protection
Maximum delay response 0.1 ms
Front material PBT
electrical connection Cable
output circuit type DC
Operating zone 0…4 mm
Sensor type Inductive proximity sensor
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Cylindrical M18
Status led Output state: 1 LED (yellow)
Threaded length 41 mm
Wiring technique 3-wire
Size 53 mm
Type of output signal Discrete
Wire insulation material PVC
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP67 conforming to IEC 60529
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -25…70 °C
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m is devised to respond to the necessities of industry specialists, such as panel builders, electrical fitters, upkeep firms, and OEMs. XS118BLPAL5 affords unmatched excellence and merit for planners in the energy management industry. This Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m and other Inductive And Capacitive Sensors XS & XT from Schneider Electric are in stock the best price and supply period through BALTELEC website, a distinguished purveyor supplying engineers in their procurement needs.

Professionals who have bought Schneider Electric Inductive And Capacitive Sensors XS & XT have continuously commended the manufacturer’s stability. It has been mentioned that the notable energy-efficiency of XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m extends to a spectrum of purposes. Its first-rate elements make it right choice for multiple purposes, assuring the success of your industrial, tertiary, and automation ventures.

Our team commits in fulfilling industrial and tertiary professionals’ needs. We recognize the individual criteria and requirements of our consumers in the industry. By joining forces with BaltElec, your enterprise receive access to the optimal price and lead time of superior products like XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m from Schneider Electric at a reasonable price. Registered users appreciate exclusive discounts and priority service.

Move quickly and order XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m at our reliable and simple internet shop. Don't delay in making this smart move that validates the utmost quality and matches the particular requests of customers like your firm.

If you encounter any issues or concerns about XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m or any other Schneider Electric products, email us or refer to our FAQ section section below. We have consolidated answers to regular inquiries to help you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, XS118BLPAL5 - Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m from Schneider Electric is dependable, wallet-friendly, and exceptional to other brands in the Inductive And Capacitive Sensors XS & XT category. Make it a part of your inventory straight away. Procure at Baltelec e-shop, your dependable vendor for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will come across Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m - XS118BLPAL5 worth 31.96 €, which will be a faithful and innovative solution for your requirements. This merchandise is engineered by the Schneider Electric brand using the most recent technologies and complies with the premier standards of well-being and productivity. We give goods from the Inductive And Capacitive Sensors XS & XT category that merge toughness and workability, which is an excellent option for various objectives. Not minding of whether you desire hardware for small fabrication or for expert industrial exertion, Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m will be a reliable aid in your job.

Baltelec endeavors to make the attaining process as smooth and fast as viable for our patrons. We offer detailed explanations and high-quality snapshots of Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m so that you can make an conscious choice. A team of connoisseurs is always ready to help you with any inquiries in the Inductive And Capacitive Sensors XS & XT section pertaining to the choosing and use of goods. We are affirmed that Inductive sensor XS1 M18, L53mm, brass, Sn5mm, 12..24VDC, cable 5m will meet your expectations and become an necessary element of your inventory for just 31.96 €.
