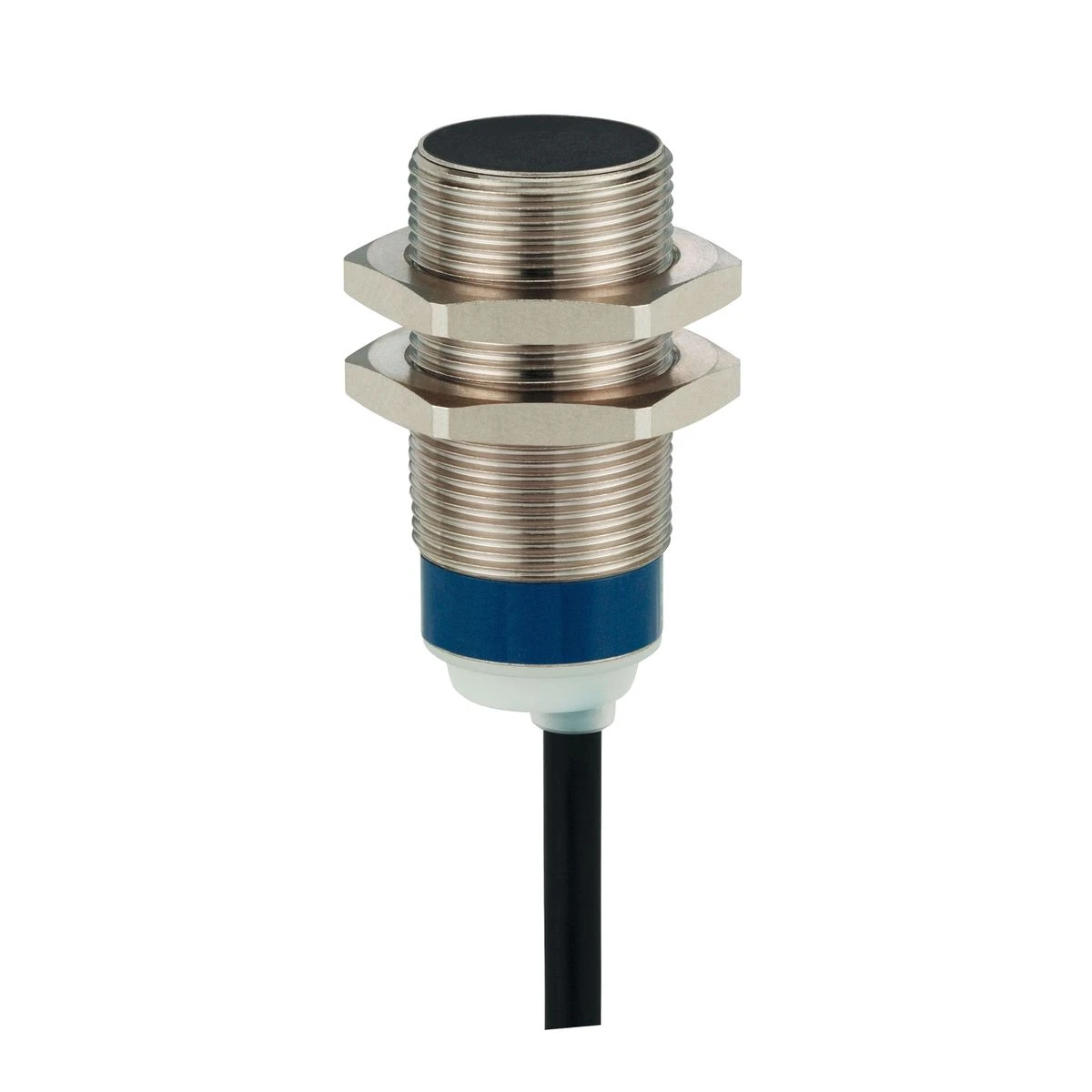

XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - Schneider Electric

Expected in 2-4 weeks
XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - Schneider Electric - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - Schneider Electric - 0
XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - Schneider Electric
55,11 € excl. VAT
68,34 € incl. VAT
Text About:
Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - Schneider Electric
68,34 €
SPECIFICATIONS
Main
Body type Fixed
cable length 5 m
Series name General purpose
sensor name XS1
Complementary
[sn] nominal sensing distance 8 mm
cable composition 3 x 0.34 mm²
length [l] 40 mm
Product certifications E2
UL
CSA
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption <= 10 mA no-load
maximum voltage drop <2 V (closed)
detection face Frontal
marking CE
Device application Mobile equipment
Discrete output function 1 NO
Enclosure material Nickel plated brass
Detector flush mounting acceptance Flush mountable
Differential travel 1...15% of Sr
Material Metal
supply voltage limits 10…36 V DC
switching frequency <= 1000 Hz
Discrete output type PNP
Maximum delay first up 10 ms
Maximum delay recovery 0.7 ms
switching capacity in ma <= 200 mA with overload and short-circuit protection
Maximum delay response 0.3 ms
Front material PPS
thread type M18 x 1
electrical connection Cable
output circuit type DC
Operating zone 0…6.4 mm
Sensor type Inductive proximity sensor
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Cylindrical M18
Status led Output state: 1 LED (yellow)
Threaded length 28 mm
Wiring technique 3-wire
Size 40 mm
Type of output signal Discrete
Wire insulation material PvR
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -25…70 °C
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m is developed to satisfy the wants of professional purchasers, such as installers, electrical installers, support service firms, and manufacturing originators. XS118B3PAL5 offers unmatched excellence and utility for specialists in the electromechanical industry. This Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m and other Inductive And Capacitive Sensors XS & XT from Schneider Electric are in stock at the most competitive price and shipping time through BALTELEC, a well-known reseller attending to consultants in their sourcing needs.

Technicians who have used Schneider Electric Inductive And Capacitive Sensors XS & XT have frequently complimented the creator's soundness. It has been emphasized that the exceptional energy-efficiency of XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m extends to a variety of operations. Its elite traits make it right choice for diverse needs, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our team commits in providing for industrial and tertiary professionals’ needs. We understand the individual specifications and expectations of our buyers in the domain. By working with our professionals, our customers receive access to the best charges and supply timeline of top-tier products like XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m from Schneider Electric at an attractive price. Account holders get more savings and first-class attention.

Make a move and acquire XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m at our risk-free and streamlined digital marketplace. Don't delay in making this clever selection that warrants the best quality and fulfills the unique demands of vendors like your outfit.

Should there be any doubts or concerns about XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m or any other Schneider Electric products, call us or refer to our Frequently Asked Questions section below. We have compiled answers to usual concerns to back you further in making an smart decision about industrial and tertiary electrical components.

Remember, XS118B3PAL5 - Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m from Schneider Electric is unfailing, reasonable, and exceptional to other manufacturers in the Inductive And Capacitive Sensors XS & XT category. Make it a part of your network at once. Shop with confidence at baltele.eu, your respected merchant for all your Inductive And Capacitive Sensors XS & XT.

In our Baltelec.eu internet store you will encounter Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m - XS118B3PAL5 worth 67.24 €, which will be a safe and contemporary solution for your wants. This article is fabricated by the Schneider Electric brand using the latest technologies and conforms to the pinnacle standards of reliability and capability. We give objects from the Inductive And Capacitive Sensors XS & XT category that amalgamate strength and effectiveness, which is an top-notch option for various uses. Independent of whether you demand devices for small assembly or for expert industrial operation, Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m will be a constant aid in your task.

Baltelec works to make the attaining process as comfortable and fast as achievable for our shoppers. We offer detailed reports and high-quality photographs of Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m so that you can make an conscious choice. A team of maestros is always ready to help you with any matter in the Inductive And Capacitive Sensors XS & XT section involved to the picking and use of goods. We are guaranteed that Inductive sensor XS1 M18, L40mm, brass, Sn8mm, 12..24VDC, cable 5 m will meet your hopes and become an vital element of your setup for just 67.24 €.
