XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - Schneider Electric

Upon request only
XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - Schneider Electric - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - Schneider Electric - 0
XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - Schneider Electric
Text About:

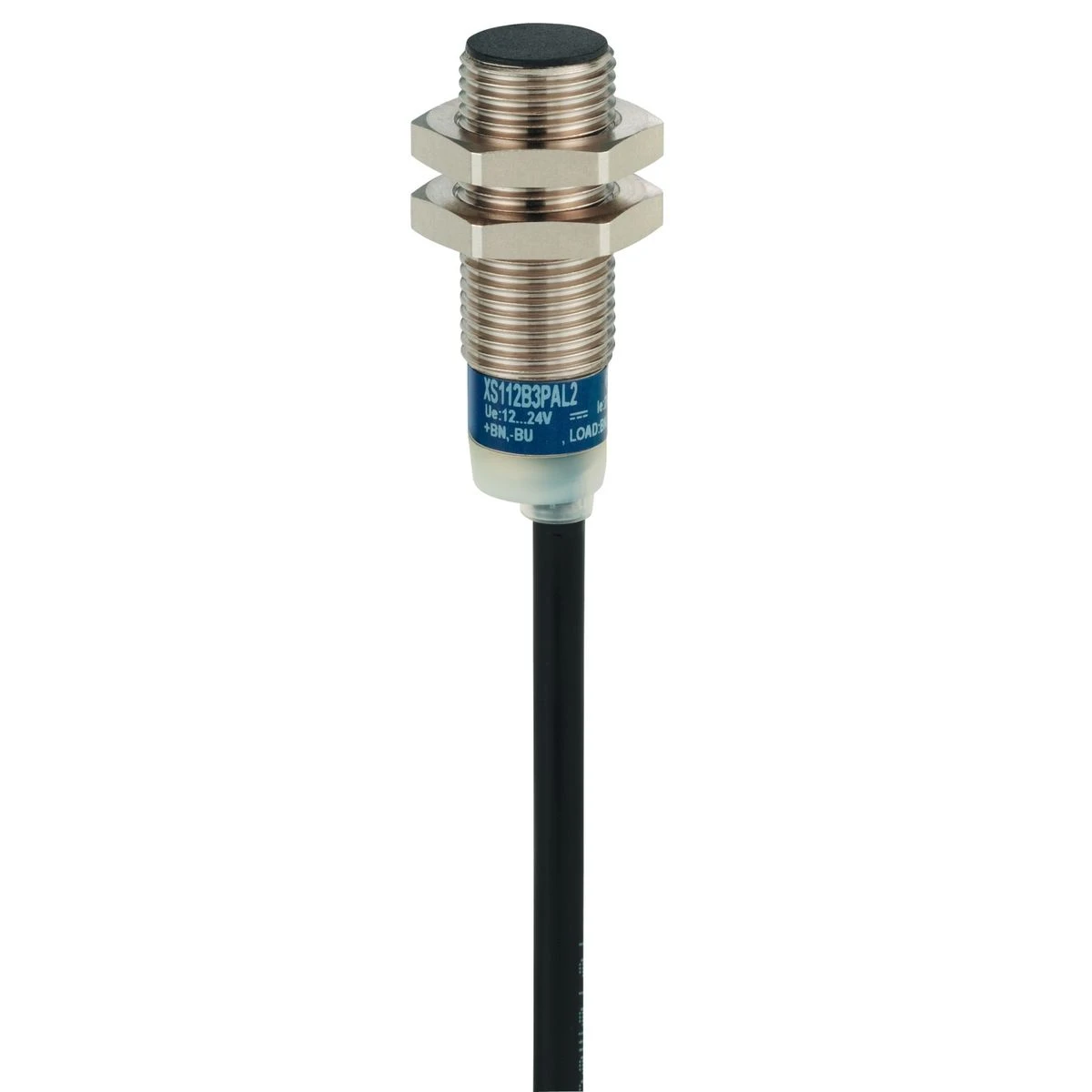

Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - Schneider Electric
SPECIFICATIONS
Main
Body type Fixed
Series name General purpose
sensor name XS1
Complementary
iso thread M12 x 1
[sn] nominal sensing distance 4 mm
length [l] 37 mm
Product certifications CSA
UL
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption <= 10 mA no-load
maximum voltage drop <2 V (closed)
detection face Frontal
marking CE
Discrete output function 1 NO
Enclosure material Nickel plated brass
Detector flush mounting acceptance Flush mountable
Differential travel 1...15% of Sr
Material Metal
supply voltage limits 10…36 V DC
switching frequency <= 2500 Hz
Discrete output type PNP
Maximum delay first up 10 ms
Maximum delay recovery 0.2 ms
switching capacity in ma <= 200 mA with overload and short-circuit protection
Maximum delay response 0.2 ms
Front material PPS
electrical connection Male connector M12, 4 pins
output circuit type DC
Operating zone 0…3.2 mm
Sensor type Inductive proximity sensor
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Cylindrical M12
Status led Output state: 1 LED (yellow)
Threaded length 25 mm
Wiring technique 3-wire
Size 37 mm
Type of output signal Discrete
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP67 conforming to IEC 60529
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -25…70 °C
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m is developed to serve the wants of industry specialists, such as installers, electricians, upkeep firms, and Industry suppliers. XS112B3PAL08M12 offers remarkable durability and asset for specialists in the power management industry. This Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m and other Inductive And Capacitive Sensors XS & XT from Schneider Electric are in stock at the most competitive price and delivery schedule through BaltElec online store, a reputable vendor supplying tradesmen in their procurement needs.

Technicians who have secured Schneider Electric Inductive And Capacitive Sensors XS & XT have commonly approved the brand's soundness. It has been outlined that the excellent competence of XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m extends to a variety of functions. Its superior attributes make it appropriate for diverse needs, securing success in your industrial, tertiary, and automation endeavors.

BALTELEC centers in accommodating industrial and tertiary professionals’ needs. We know the special expectations and anticipations of our partners in the industry. By aligning with BALTELEC, you acquire access to the leading price and lead time of high-quality products like XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m from Schneider Electric at an affordable price. Our registered accounts benefit from extra discounts and priority service.

Move quickly and secure XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m at our safe and easy-to-use online store. Don't delay in making this smart selection that guarantees the finest quality and addresses the customized criteria of purchasers like your team.

If there are any inquiries or concerns about XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m or any other Schneider Electric products, contact us or refer to our FAQ section section below. We have collected answers to habitual matters to help you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, XS112B3PAL08M12 - Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m from Schneider Electric is credible, value-priced, and outstanding to its competitors in the Inductive And Capacitive Sensors XS & XT category. Feel free to make it a part of your electrical system promptly. Order at Baltelec e-shop, your reliable source for all your Schneider Electric.

In our Baltelec.eu e-commerce store you will encounter Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m - XS112B3PAL08M12 worth 100.29 €, which will be a safe and fashionable solution for your wishes. This object is created by the Schneider Electric brand using the state-of-the-art technologies and complies with the peak standards of defense and capability. We give things from the Inductive And Capacitive Sensors XS & XT category that amalgamate lastingness and effectiveness, which is an excellent selection for various tasks. Regardless of whether you seek equipment for small creation or for adept industrial application, Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m will be a sure helper in your assignment.

Baltelec works to make the purchasing process as simple and fast as realizable for our clients. We offer detailed depictions and high-quality photographs of Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m so that you can make an advised choice. A team of pros is always ready to help you with any doubts in the Inductive And Capacitive Sensors XS & XT section associated to the choosing and use of goods. We are convinced that Inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, M12 0.8m will meet your criteria and become an imperative element of your inventory for just 100.29 €.
