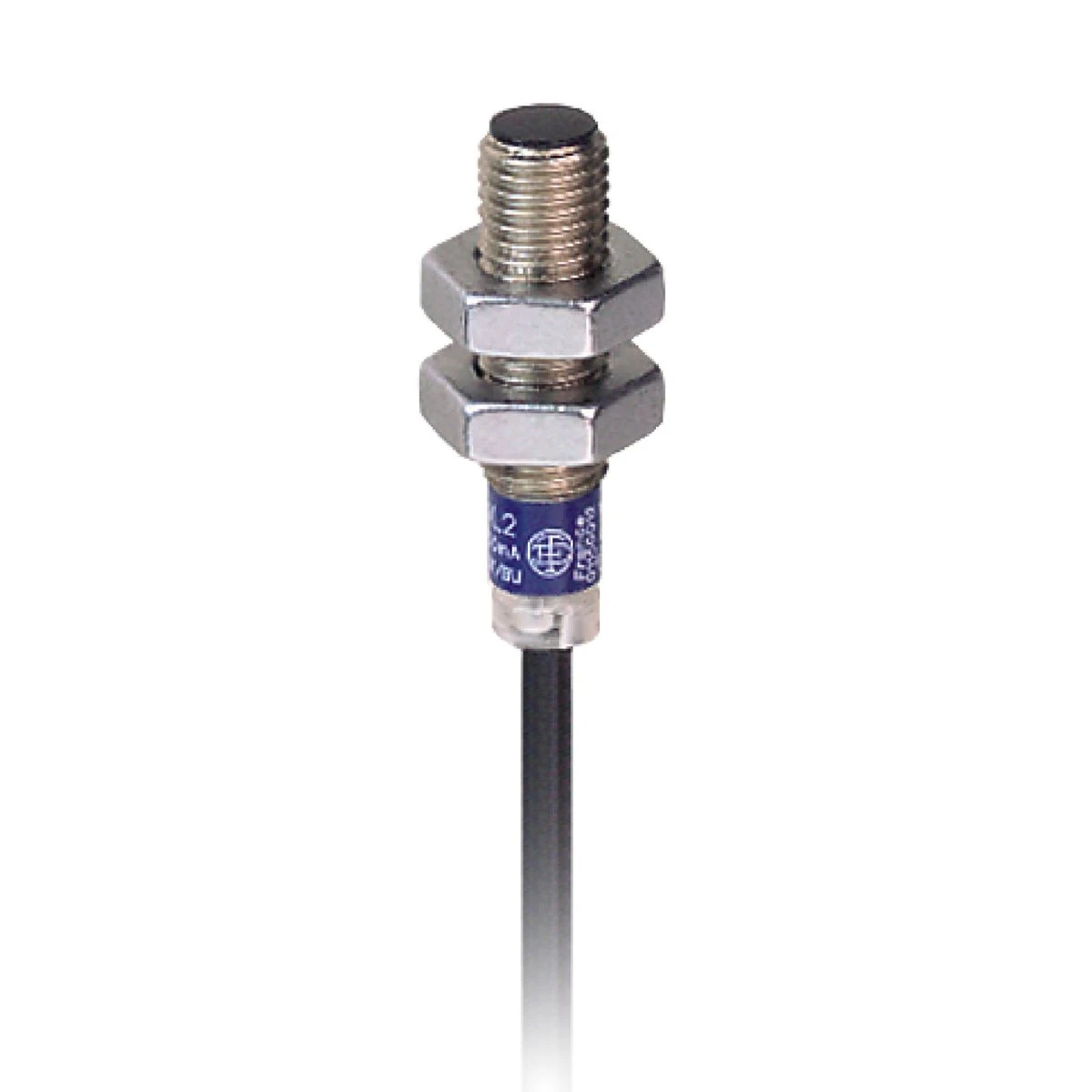

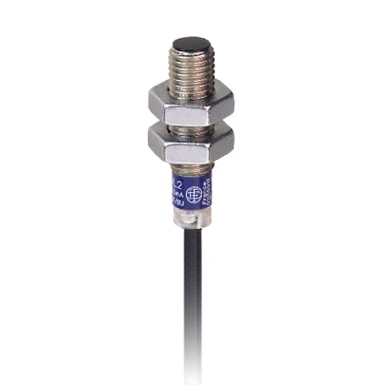

XS108B3NBL2 - Inductive sensor XS1 M8, L33mm, brass, Sn2.5mm, 12..24VDC, cable 2m - Schneider Electric

Expected in 2-4 weeks

61,59 € excl. VAT

75,14 € incl. VAT

Text About:

Inductive sensor XS1 M8, L33mm, brass, Sn2.5mm, 12..24VDC, cable 2m - Schneider Electric

In cart

75,14 €

SPECIFICATIONS

Main

Body type Fixed

cable length 2 m

Series name General purpose

sensor name XS1

Complementary

[sn] nominal sensing distance 2.5 mm

cable composition 3 x 0.11 mm²

length [l] 33 mm

Product certifications CSA
UL

[us] rated supply voltage 12...24 V DC with reverse polarity protection

Current consumption <= 10 mA no-load

maximum voltage drop <2 V (closed)

detection face Frontal

marking CE

Discrete output function 1 NC

Enclosure material Stainless steel 303

Detector flush mounting acceptance Flush mountable

Differential travel 1...15% of Sr

Material Metal

supply voltage limits 10…36 V DC

switching frequency <= 2500 Hz

Net weight 0.07 kg

Discrete output type NPN

Maximum delay first up 10 ms

Maximum delay recovery 0.2 ms

switching capacity in ma <= 200 mA with overload and short-circuit protection

Maximum delay response 0.2 ms

Front material PPS

thread type M8 x 1

electrical connection Cable

output circuit type DC

Operating zone 0…2 mm

Sensor type Inductive proximity sensor

Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27

Sensor design Cylindrical M8

Status led Output state: 1 LED (yellow)

Threaded length 25 mm

Wiring technique 3-wire

Size 33 mm

Type of output signal Discrete

Wire insulation material PvR

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529

Range of product Telemecanique Inductive proximity sensors XS

ambient air temperature for operation -25…70 °C

vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
