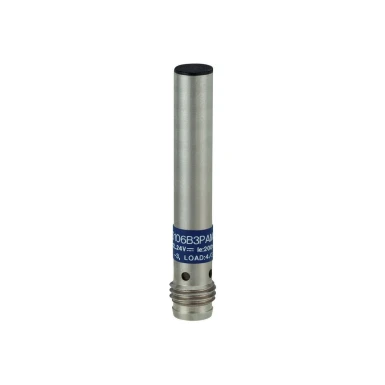

XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - Schneider Electric

Upon request only
XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - Schneider Electric - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - Schneider Electric - 0
XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - Schneider Electric
Text About:
Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - Schneider Electric
SPECIFICATIONS
Main
Body type Fixed
Series name General purpose
sensor name XS1
Complementary
[sn] nominal sensing distance 2.5 mm
length [l] 42 mm
Product certifications CSA
UL
[us] rated supply voltage 12...24 V DC with reverse polarity protection
Current consumption <= 10 mA no-load
maximum voltage drop <2 V (closed)
detection face Frontal
marking CE
Discrete output function 1 NC
Enclosure material Stainless steel 303
Detector flush mounting acceptance Flush mountable
Differential travel 1...15% of Sr
Material Metal
supply voltage limits 10…36 V DC
switching frequency <= 2500 Hz
Discrete output type NPN
Maximum delay first up 10 ms
Maximum delay recovery 0.2 ms
switching capacity in ma <= 200 mA with overload and short-circuit protection
Maximum delay response 0.2 ms
Front material PPS
electrical connection Male connector M8, 3 pins
output circuit type DC
Operating zone 0…2 mm
Sensor type Inductive proximity sensor
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Cylindrical Ø 6.5 mm plain
Status led Output state: 1 LED (yellow)
Wiring technique 3-wire
Size 42 mm
Type of output signal Discrete
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP65 conforming to IEC 60529
IP67 conforming to IEC 60529
Range of product Telemecanique Inductive proximity sensors XS
ambient air temperature for operation -25…70 °C
vibration resistance 25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
About this product

The XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 is fashioned to meet the needs of trade buyers, such as switchgear manufacturers, electric engineers, management services, and Industry suppliers. XS106B3NBM8 delivers first-rate excellence and beneficence for specialists in the electrotechnical industry. This Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 and other Inductive And Capacitive Sensors XS & XT from Schneider Electric are on offer at the most favorable cost and distribution time through BALTELEC, a respected retailer supplying engineers in their supply needs.

Users who have chosen Schneider Electric Inductive And Capacitive Sensors XS & XT have commonly lauded the creator's solidity. It has been mentioned that the impressive capability of XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 extends to a wide range of tasks. Its ideal characteristics make it great selection to suit a variety of needs, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our professionals concentrates in accommodating industrial and tertiary professionals’ needs. We get the specific specifications and desires of our buyers in the market. By working with us, your company secure access to the optimal pricing and delivery schedule of first-rate products like XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 from Schneider Electric at a value-for-money price. Registered customers benefit from more savings and first-class attention.

Move quickly and get XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 at our risk-free and simple webshop. Don't delay in making this clever move that promises the best quality and addresses the customized prerequisites of customers like your outfit.

Should you have any inquiries or concerns about XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 or any other Schneider Electric products, connect with us or refer to our FAQs section below. We have put together answers to regular concerns to aid you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 from Schneider Electric is credible, cost-effective, and outstanding to other manufacturers in the Inductive And Capacitive Sensors XS & XT category. Feel free to make it a part of your network instantly. Acquire at Baltelec webstore, your consistent provider for all your professional electrical equipment and automation needs.

In our Baltelec.eu internet store you will discover Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 - XS106B3NBM8 worth 80.36 €, which will be a safe and modern solution for your necessities. This object is produced by the Schneider Electric brand using the latest technologies and adheres to the leading standards of security and productivity. We extend objects from the Inductive And Capacitive Sensors XS & XT category that mix strength and practicality, which is an premium election for various operations. Despite of whether you want machinery for small assembly or for experienced industrial application, Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 will be a reliable adjunct in your work.

Baltelec labors to make the obtaining process as manageable and fast as possible for our clients. We offer detailed depictions and high-quality depictions of Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 so that you can make an briefed choice. A team of professionals is always ready to help you with any issues in the Inductive And Capacitive Sensors XS & XT section connected to the nomination and use of commodities. We are trusting that Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 will meet your standards and become an vital element of your device for just 80.36 €.

FAQ about XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8:

  • Why should I order Schneider Electric XS106B3NBM8 from BaltElec?

    When buying Schneider Electric Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 from Baltelec online store, you will receive authentic quality Schneider Electric Inductive And Capacitive Sensors XS & XT products at the most advantageous pricing and delivery schedule. Moreover, our partnersget additional savings and priority service.

  • Schneider Electric Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 is suitable for my project?

    To ensure that XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 is suitable for your drawings, we offer detailed information regarding product's specs, technical characteristics, and in some cases 3D models as well. You can access this data on the product page of the item model. If you require more guidance, our customer service team stands ready to aid you in making an well-informed choice.

  • Which guarantee coverage is provided for XS106B3NBM8?

    Baltelec.eu team is committed to the quality of the products we distribute. The standard warranty coverage for Schneider Electric Inductive And Capacitive Sensors XS & XT including Schneider Electric XS106B3NBM8 is 1 year. However, it depends depending on the specific product, category, and might be longer. You can locate specific warranty information on the XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 dedicated page or by getting in touch with our customer service team.

  • Can you provide worldwide shipping for XS106B3NBM8 as well as other Schneider Electric items?

    Yes. Besides serving Estonia, Latvia, Lithuania and other European Union countries, we provide worldwide shipping for Schneider Electric Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8. However that shipping options, fees, and delivery schedule may vary depending on the destination. In the case of complex acquisitions, please consult BaltElec sales staff.

  • Do Schneider Electric MBC provided by BaltElec adhere to international norms for security and quality?

    Completely. All Schneider Electric items provided at Baltelec.eu web store conform to international standards such as IEC 60898-1 and carry the CE certification. Such standards assure that the items fulfill rigorous security, technological, reliability, and performance requirements.

  • Can Baltelec.eu provide guidance on incorporating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?

    Yes!  Baltelec.eu understands the importance of renewable energy integration within community. Our group of professionals can support you in choosing the right Schneider Electric products, to incorporate them into your renewable energy projects}. We can provide recommendations on combining solar power systems, wind energy converters, and other eco-friendly options to maximize energy generation and effectiveness.

  • Are there eco-friendly options offered within the Inductive And Capacitive Sensors XS & XT category to encourage energy conservation efforts?

    Definitely!Yes! Baltelec.eu online store provides numerous green solutions within the Inductive And Capacitive Sensors XS & XT category that are in line with green energy initiatives. Our brand's Schneider Electric products, including the XS106B3NBM8 - Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8, are engineered with environmental friendliness in mind. By incorporating these products into your electrical system, you can optimize energy usage and reduce environmental impact. Additionally, we provide competitive pricing for our energy-efficient Schneider Electric products,, making them an cost-effective choice for supporting sustainability.

  • Are Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8 sold by BaltElec original?

    Indeed, we exclusively provide genuine Schneider Electric products, including but not limited to Inductive sensor XS1 ?6.5, L42.5mm, brass, Sn2.5mm, 12..24VDC, M8. We source our products only through authorized distribution channels to ensure their genuineness and excellent performance.
