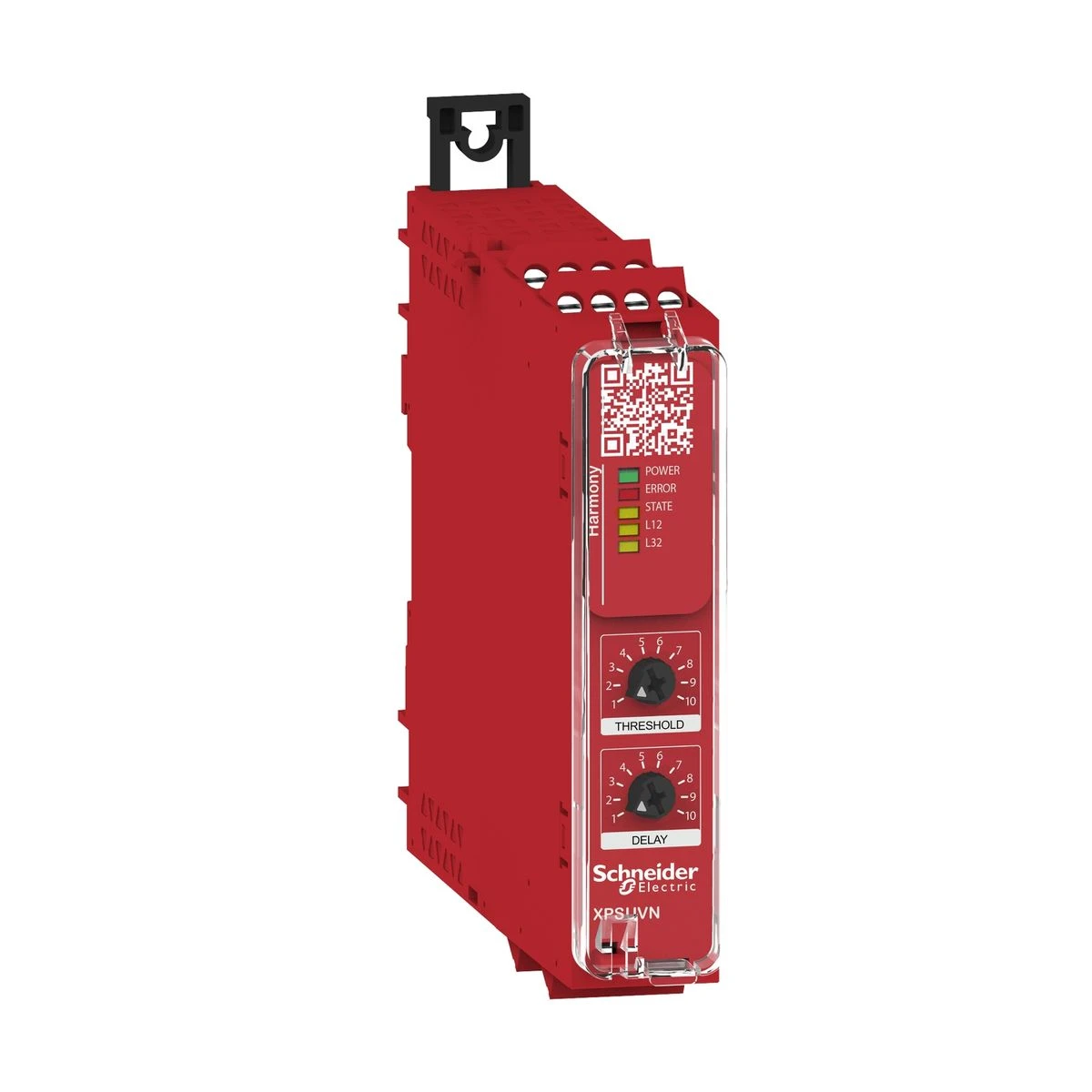

XPSUVN11AP - Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw - Schneider Electric

Expected in 2-4 weeks

XPSUVN11AP - Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw - Schneider Electric

464,80 € excl. VAT

567,06 € incl. VAT

Text About:

Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw - Schneider Electric

In cart

567,06 €

SPECIFICATIONS

Main

Safety module application For zero speed detection

Safety module name XPSUVN

[ui] rated insulation voltage 690 V phase to phase (pollution degree 2) conforming to EN/IEC 60947-1
400 V phase to earth (pollution degree 2) conforming to EN/IEC 60947-1

number of additional circuits 2 solid state outputs

Complementary

[ie] rated operational current 5 A AC-1 for normally open relay contact
3 A AC-15 for normally open relay contact
5 A DC-1 for normally open relay contact
3 A DC-13 for normally open relay contact

[ith] conventional thermal current 6 A for NO relay output circuit

Product certifications TÜV
cULus

Handle front plate colour 100 mm

Product or component type Safety module

[uimp] rated impulse withstand voltage 4 kV overvoltage category II conforming to EN/IEC 60947-1

[us] rated supply voltage 24 V AC - 15...10 %
24 V DC - 20...20 %

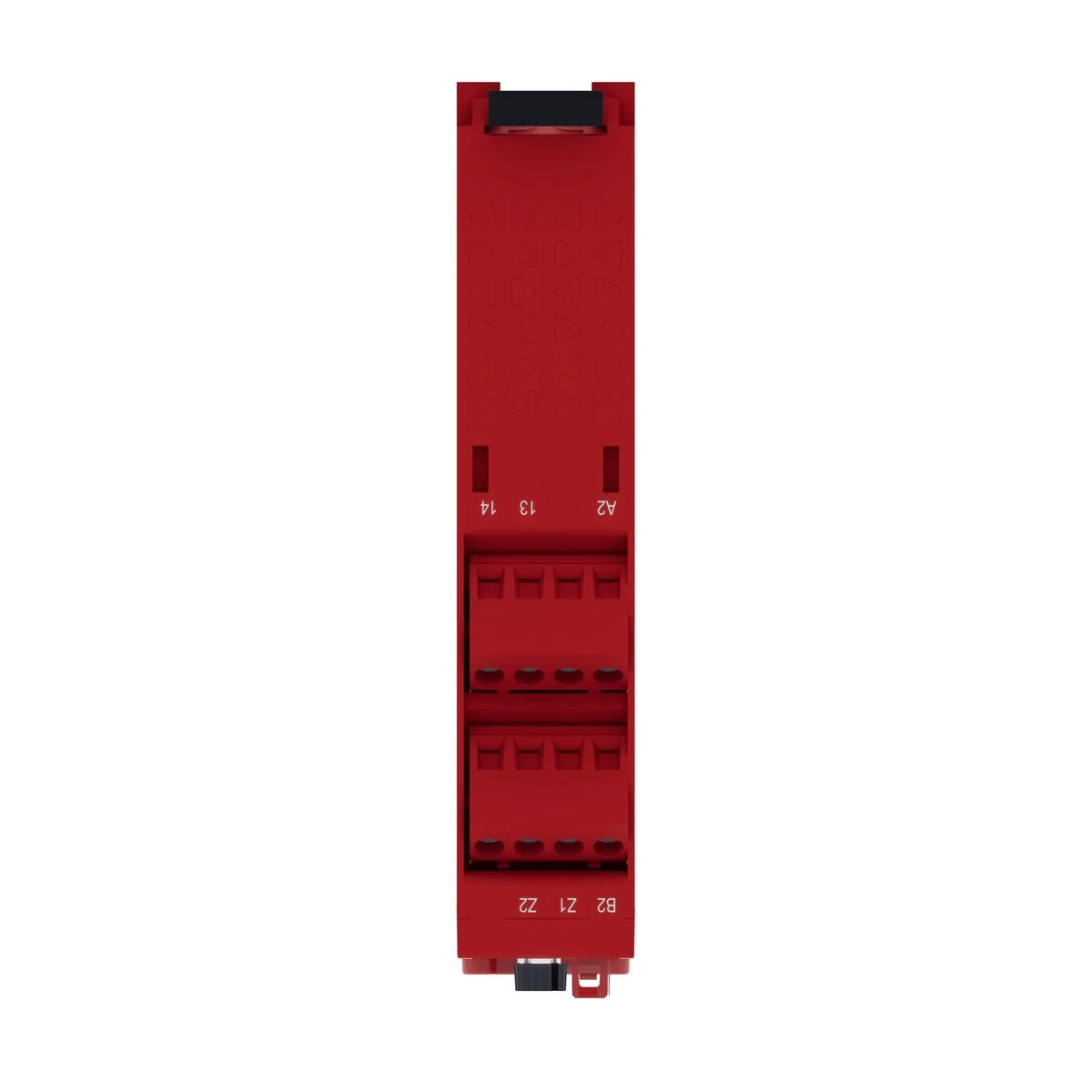

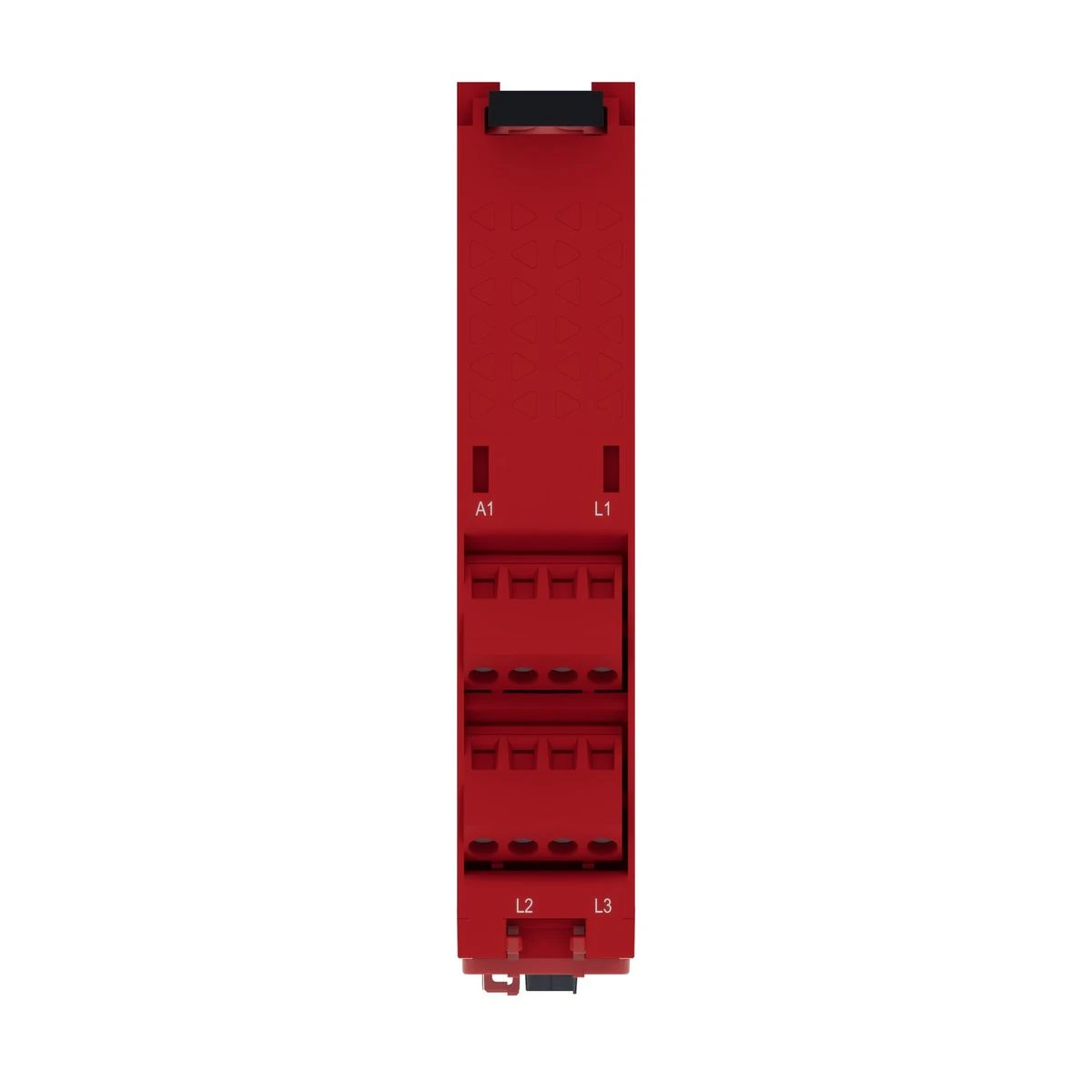

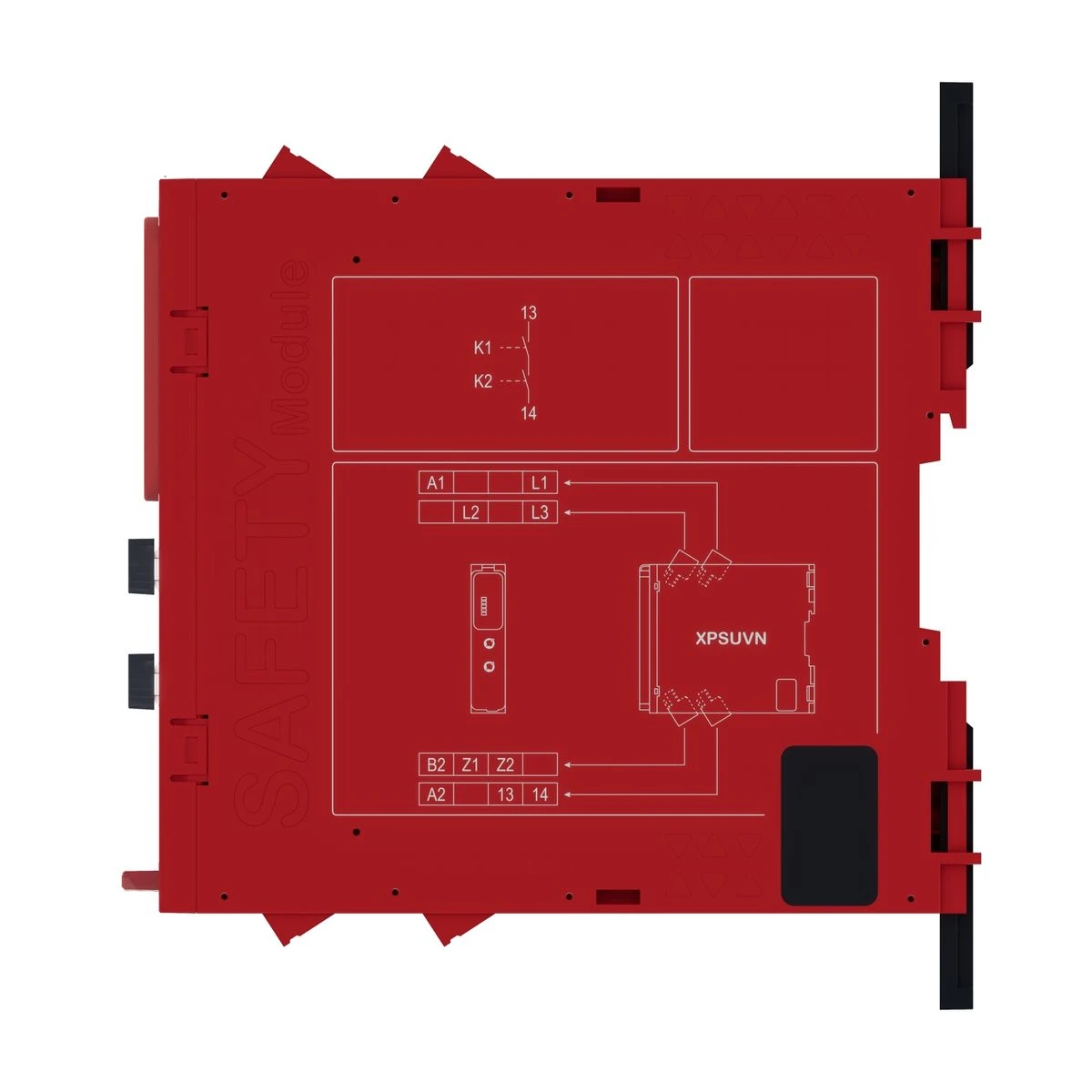

Connections - terminals Removable screw terminal block solid or flexible cable: 0.2...2.5 mm²
Removable screw terminal block flexible with ferrule cable: 0.25...2.5 mm² single conductor
Removable screw terminal block solid or flexible cable: 0.2...1.5 mm² twin conductor
Removable screw terminal block flexible with ferrule cable: 2 x 0.25...1 mm² without cable end, with bezel
Removable screw terminal block flexible with ferrule cable: 2 x 0.5...1.5 mm² with cable end, with bezel

Associated fuse rating 6 A gG for relay output conforming to IEC 60947-1

minimum output current 10 mA for relay output

Output type Relay, 1 NO circuit(s), volt-free

Function of module Monitoring 3-phase motor
Monitoring 3-phase motor with star-delta starting
Monitoring 3-phase motor with variable number of poles
Monitoring 3-phase motor with variable number of poles and star-delta starting
Monitoring dc motor
Monitoring servo motor
Monitoring 3-phase motor supplied by variable speed drive
Monitoring 3-phase motor supplied by servo drive
Controlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST

safety reliability data MTTFd > 30 years conforming to ISO 13849-1
Dcavg = 98.9 % conforming to ISO 13849-1
PFHd = 2.39E-9 1/h conforming to ISO 13849-1
HFT = 1 conforming to IEC 62061
PFHd = 2.39E-9 1/h conforming to IEC 62061
SFF > 99% conforming to IEC 62061
HFT = 1 conforming to IEC 61508-1
PFHd = 2.39E-9 1/h conforming to IEC 61508-1
SFF > 99% conforming to IEC 61508-1
Type = B conforming to IEC 61508-1

width (w) 22.5 mm

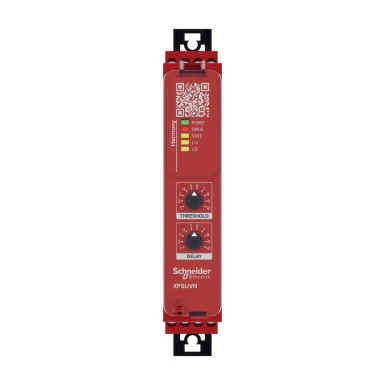

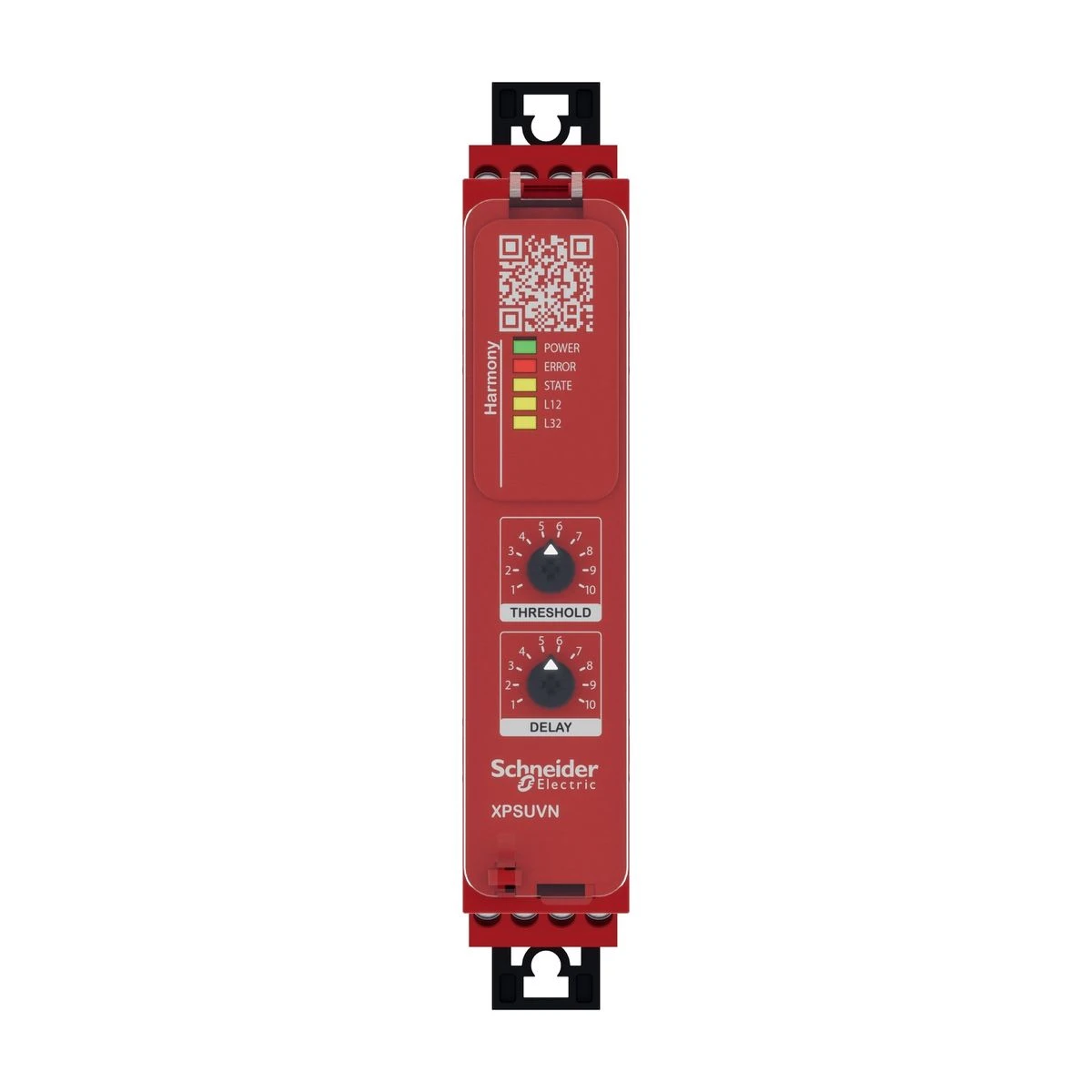

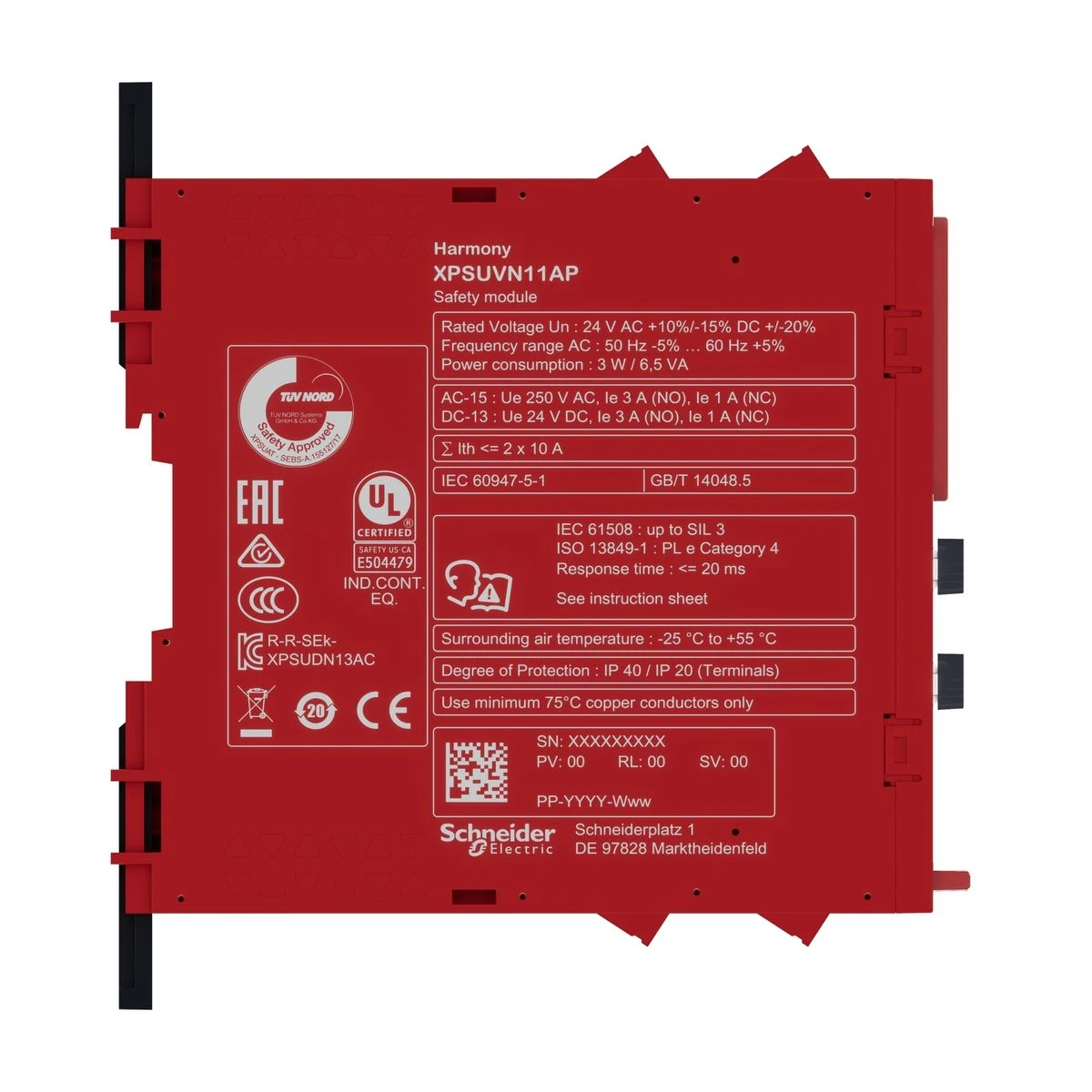

Local signalling LED green with power marking for power ON
LED red with error marking for error
LED yellow with state marking for status
LED yellow with L12 marking for input line comparison
LED yellow with L32 marking for input line comparison

Input detection threshold 50 mV
65 mV
85 mV
110 mV
140 mV
180 mV
230 mV
300 mV
400 mV
500 mV

Net weight 0.2 kg

Mounting support 35 mm symmetrical DIN rail

depth 120 mm

minimum output voltage 5 V for relay output

Power consumption in va 5.5 VA

Power consumption in w 2.0 W

input voltage 690 V

Safety level Can reach PL e/category 3 for normally open relay contact conforming to ISO 13849-1
Can reach SILCL 3 for normally open relay contact conforming to IEC 62061
Can reach SIL 3 for normally open relay contact conforming to IEC 61508

Time delay 0.5 s
1 s
2 s
3 s
5 s
8 s
12 s
20 s
35 s
60 s

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP20 (terminals) conforming to EN/IEC 60529
IP40 (housing) conforming to EN/IEC 60529
IP54 (mounting area) conforming to EN/IEC 60529

Range of product Harmony Safety Automation

ambient air temperature for operation -25…55 °C

standards IEC 60947-5-1
IEC 61508-1 functional safety standard
IEC 61508-2 functional safety standard
IEC 61508-3 functional safety standard
IEC 61508-4 functional safety standard
IEC 61508-5 functional safety standard
IEC 61508-6 functional safety standard
IEC 61508-7 functional safety standard
ISO 13849-1 functional safety standard
IEC 62061 functional safety standard

relative humidity 5…95 % non-condensing
