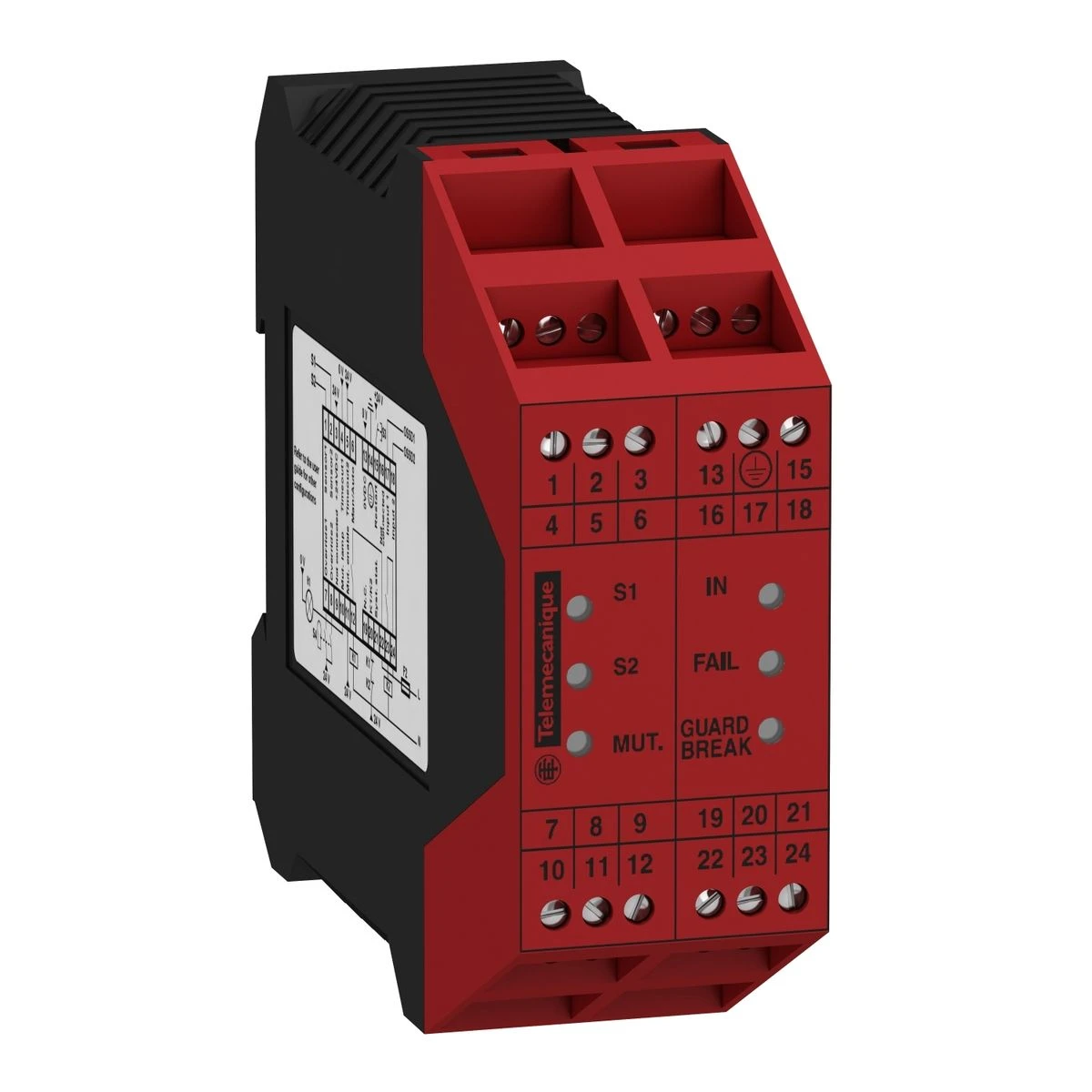

XPSLCMUT1160 - Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4 - Schneider Electric
Expected in 2-4 weeks
441,88 €
Text About:
Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4 - Schneider Electric
SPECIFICATIONS
Main
Safety module application
For the muting function of type 2 and type 4 safety light curtains monitored
Safety module name
XPSLCM
[ui] rated insulation voltage
300 V conforming to EN 50178
number of additional circuits
1 solid state PNP (NO), 100 mA for status on 24 V
1 solid state PNP (NO), 20.8…208 mA for lamp on 24 V
1 solid state PNP (NO), 20.8…208 mA for lamp on 24 V
Complementary
Product certifications
TÜV
cULus
cULus
Handle front plate colour
99 mm
Product or component type
Preventa safety module
[uimp] rated impulse withstand voltage
4 kV overvoltage category II conforming to EN 50178
[us] rated supply voltage
24 V DC - 20...20 %
Connections - terminals
Screw terminal
marking
CE
Output type
2 relay, 2 A at 24 V
Function of module
Muting
safety reliability data
PFHd = 6.42E-9...5.03E-8 1/h conforming to EN/IEC 62061
B10d = 800000 conforming to EN/ISO 13849-1
MTTFd = 26...100 years conforming to EN/ISO 13849-1
DC = 96.2...98.9 % conforming to EN/ISO 13849-1
B10d = 800000 conforming to EN/ISO 13849-1
MTTFd = 26...100 years conforming to EN/ISO 13849-1
DC = 96.2...98.9 % conforming to EN/ISO 13849-1
width (w)
35 mm
Local signalling
6 LEDs
Net weight
0.15 kg
Maximum number of controlled devices
1
Maximum response time on input open
20 ms
Maximum sensor supply current
10 mA
Mounting support
35 mm symmetrical DIN rail
depth
114.5 mm
Muting maximum duration
30 s or unlimited
Number of inputs
2 (per muting function)
Power consumption in w
5 W
Sensor power supply
24 V
Input compatibility
Through beam photoelectric sensor dark-on operate(PNP)
Polarised reflex photoelectric sensor
Reflex photoelectric sensor
Polarised reflex photoelectric sensor
Reflex photoelectric sensor
Synchronisation time between inputs
4 s of muting
Safety level
Can reach PL = e with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach category 4 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach SILCL 3 with the appropriate control system and correctly wired conforming to EN/IEC 62061
Can reach category 4 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1
Can reach SILCL 3 with the appropriate control system and correctly wired conforming to EN/IEC 62061
Environment
Ambient air temp for storage/transportation
-25…70 °C
ip degree of protection
IP2X conforming to IEC 60529
Range of product
Telemecanique Safety light curtains XUSL
ambient air temperature for operation
0…55 °C
standards
EN/ISO 13849-1
EN/IEC 62061
EN/IEC 62061
