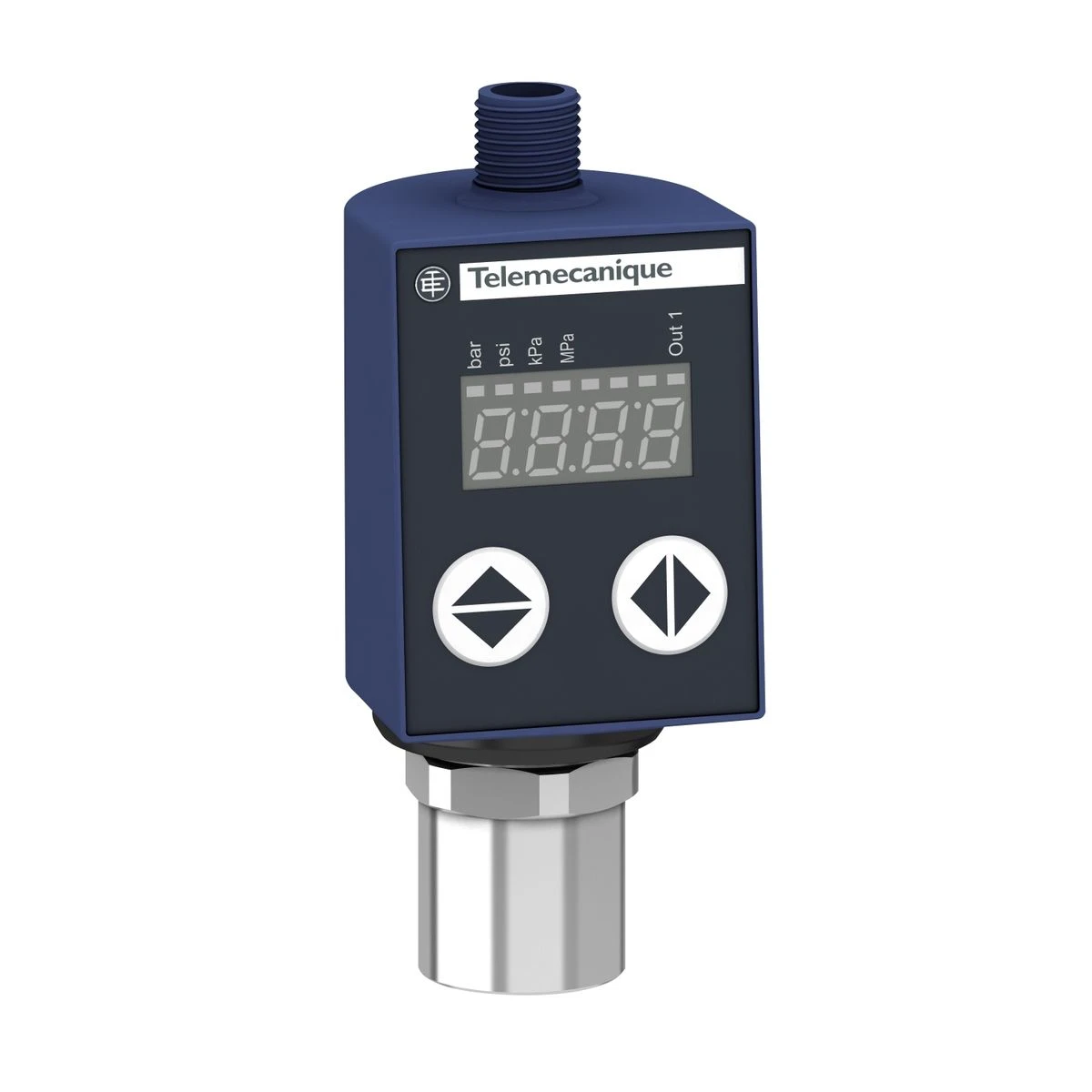

XMLR010G1P26 - Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, PNP, M12 - Schneider Electric

Expected in 2-4 weeks

343,78 € excl. VAT

419,41 € incl. VAT

Text About:

Electronic pressure sensors, Pressure sensors XM, XMLR 10 bar, 1/4" 18 NPT, 24 VDC, 4...20 mA, PNP, M12 - Schneider Electric

In cart

419,41 €

SPECIFICATIONS

Main

Device short name XMLR

Fluid connection type 1/4" - 18 NPT (female)

controlled fluid Fresh water (0…80 °C)
Air (-20…80 °C)
Hydraulic oil (-20…80 °C)
Refrigeration fluid (-20…80 °C)

Pressure switch type of operation Pressure transmitter with 1 switching output

pressure rating 999.74 kPa
10 bar

pressure sensor type Pressure transmitter

Complementary

maximum switching current 250 mA

Product certifications EAC
cULus

Adjustable range of switching point on falling pressure 0.5…9.7 bar
0.05…0.97 MPa
49.99…972.16 kPa

Handle front plate colour 100 mm

Product or component type Electronic pressure sensors

[uimp] rated impulse withstand voltage 0.5 kV DC

[us] rated supply voltage 24 V DC SELV (voltage limits: 17…33 V)

Adjustable range of switching point on rising pressure 79.98…999.74 kPa
0.8…10 bar
0.08…1 MPa

Analogue output function 4...20 mA

Current consumption <= 50 mA

maximum voltage drop 2 V

marking CE

Contacts type and composition NO/NC programmable

Drift of the sensitivity +/- 0.03 % of measuring range/°C

Drift of the zero point +/- 0.1 % of measuring range/°C

width (w) 41 mm

Destruction pressure 3998.96 kPa
40 bar
4 MPa

Local signalling 1 LED (yellow) for light ON when switch is actuated

Display accuracy <= 1 % of the measuring range

Net weight 0.212 kg

Discrete output type Solid state PNP, NO/NC programmable

Display response time type Fast 50 ms
Normal 200 ms
Slow 600 ms

Maximum delay first up 300 ms

Operating position Any position, but disposals can falsified the measurement in case of upside down mounting

Display type 4 digits 7 segments

depth 42 mm

mechanical durability 10000000 cycles

repeat accuracy <= 0.2 % of the measuring range

Front material Polyester

Housing material 316L stainless steel
Polyacrylamide

Materials in contact with fluid 316L stainless steel
Ceramic
Fluorocarbon FKM (Viton)

electrical connection Male connector M12, 4 pins

Maximum permissible accidental pressure 4 MPa
3998.96 kPa
40 bar

Hysteresis on analogue output <= 0.2 % of the measuring range

Linearity error on analogue output <= 0.5 % of the measuring range

Measurement accuracy on switching output <= 0.6 % of the measuring range

Shock resistance 50 gn conforming to EN/IEC 60068-2-27

Response time on output <= 10 ms for analog output
<= 5 ms for discrete output

Minimum differential travel 29.99 kPa
30 kPa
0.3 bar

Overall accuracy <= 1 % of the measuring range

Scale type Fixed differential

Type of output signal Analogue + discrete

Protection type Overvoltage protection
Overload protection
Reverse polarity
Short-circuit protection

Switching output time delay 0...50 s in steps of 1 second

Environment

Ambient air temp for storage/transportation -40…80 °C

ip degree of protection IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529

Range of product Telemecanique Pressure sensors XM

ambient air temperature for operation -20…80 °C

electromagnetic compatibility Susceptibility to electromagnetic fields: 10 V/m 80...2000 MHz conforming to EN/IEC 61000-4-3
Immunity to conducted RF disturbances: 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
Surge immunity test: 1 kV conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test: 2 kV conforming to EN/IEC 61000-4-4
Electrostatic discharge immunity test: 8 kV air, 4 kV contact conforming to EN/IEC 61000-4-2

standards EN/IEC 61326-2-3
UL 61010-1

vibration resistance 20 gn (f= 10…2000 Hz) conforming to EN/IEC 60068-2-6
