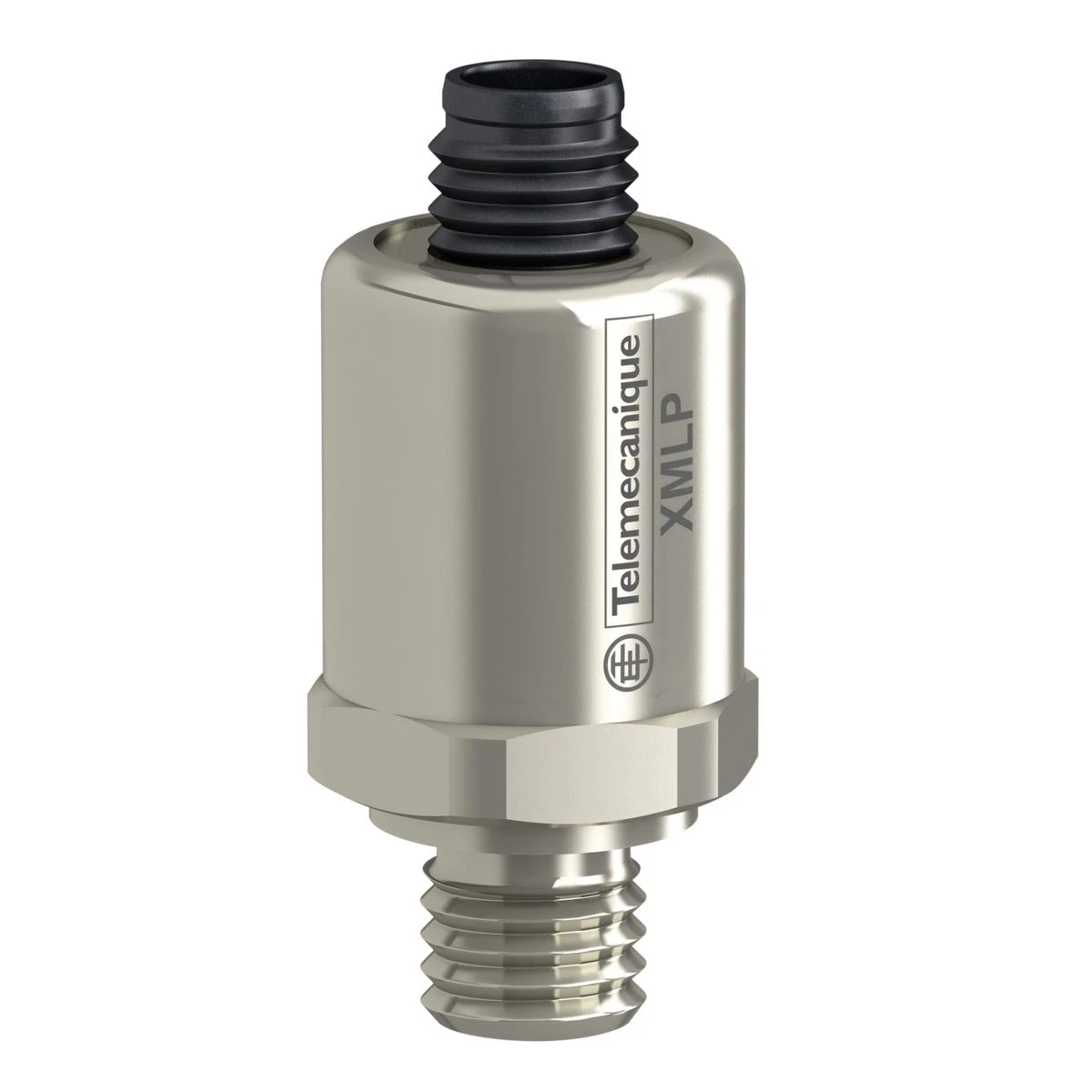

XMLPM00GD21F - Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -1 bar, 4...20 mA, G1/4 A male, FPM, M12 - Schneider Electric

Expected in 2-4 weeks

157,04 € excl. VAT

191,59 € incl. VAT

Text About:

Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -1 bar, 4...20 mA, G1/4 A male, FPM, M12 - Schneider Electric

In cart

191,59 €

SPECIFICATIONS

Main

Fluid connection type G 1/4A (male) conforming to DIN 3852-E

controlled fluid Fresh water (0…125 °C)
Air (-15…125 °C)
Gas (-15…125 °C)
Hydraulic oil (-15…125 °C)

Type of packing Individual

pressure sensor name XMLP

pressure rating -1…0 bar

pressure sensor type Pressure transmitter

Complementary

length [l] 32.3 mm

local display Without

Product certifications cULus
EAC
RCM
CE

Product or component type Electronic pressure sensors

[uimp] rated impulse withstand voltage 0.5 kV

[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7…33 V)

Analogue output function 4...20 mA, 2-wire

Current consumption < 23 mA

diameter 26 mm

Quantity per set Set of 1

Drift of the sensitivity +/- 0.02 % of measuring range/°K

Drift of the zero point +/- 0.02 % of measuring range/°K

pressure setting range -1…0 bar

Destruction pressure 5 bar

Electrical circuit type Control circuit

Net weight 0.075 kg

measurement accuracy +/- 0.5 % of the measuring range

Operating position Any position

Long term stability +/- 0.25 % of the measuring range

mechanical durability 10000000 cycles

Materials in contact with fluid Ceramic
Fluorocarbon FPM
Stainless steel AISI 316L

electrical connection 1 male connector M12 4 pins

Maximum permissible accidental pressure 3 bar

Resolution 0.1 % of the measuring range

Shock resistance 100 gn for 11 ms conforming to EN/IEC 60068-2-27

Response time on output <= 2 ms 10...90 % of full scale

Type of output signal Analogue

Protection type Load short-circuit
Reverse polarity

Environment

Ambient air temp for storage/transportation -50…100 °C

ip degree of protection IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
IP69K conforming to DIN 40050

Range of product Telemecanique Pressure sensors XM

ambient air temperature for operation -30…85 °C

electromagnetic compatibility Susceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...1000 MHz
Radiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.15...80 MHz
Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact
1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 1 kV 42 Ohm
Immunity to magnetic fields conforming to EN/IEC 61000-4-8 100 A/m 50 Hz
Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 4 kV

standards EN/IEC 61326-2-3
NSF ANSI 61

vibration resistance 20 gn (f = 10…2000 Hz) conforming to EN/IEC 60068-2-6
