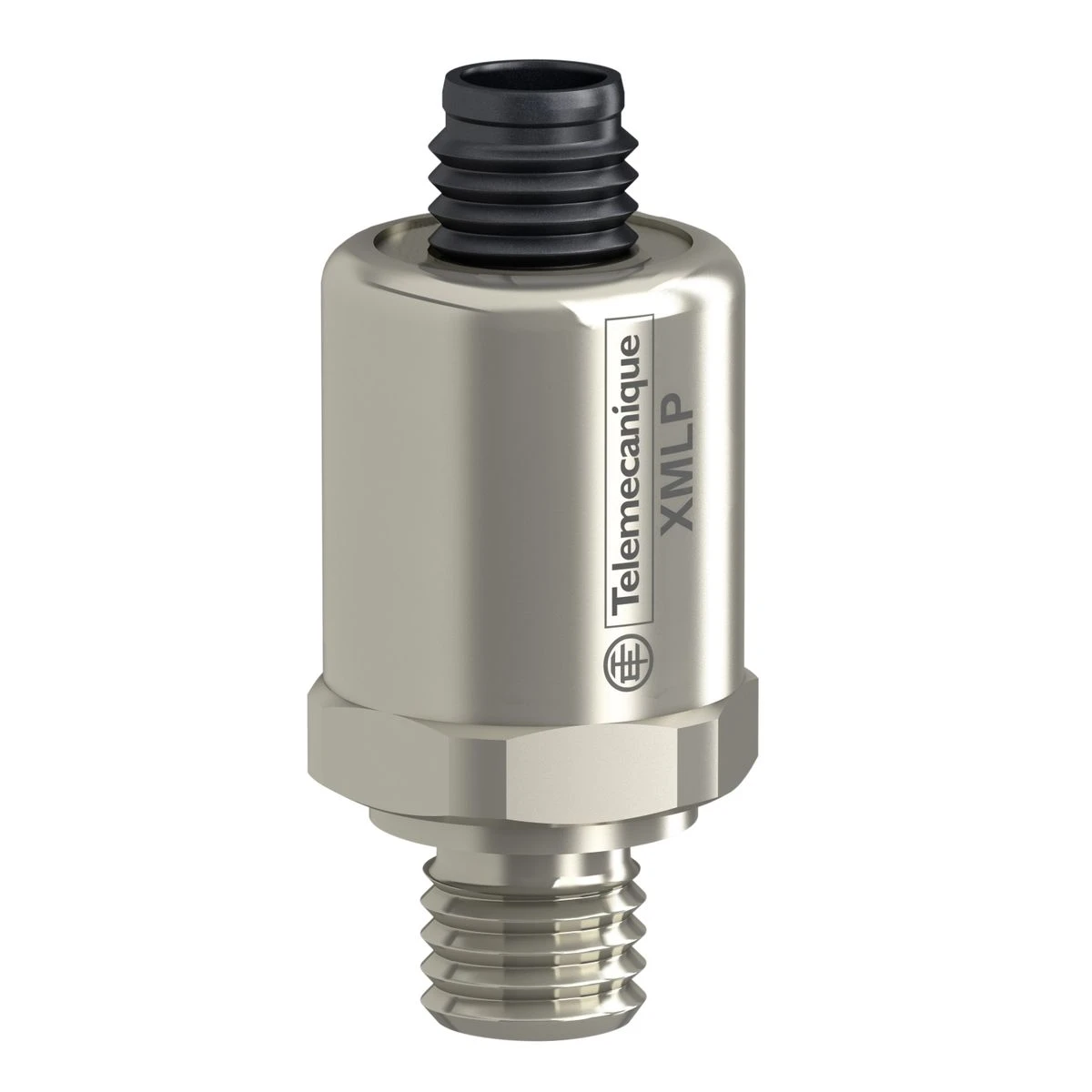

XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - Schneider Electric

Expected in 2-4 weeks
XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - Schneider Electric - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - Schneider Electric - 0
XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - Schneider Electric
124,60 € excl. VAT
154,51 € incl. VAT
Text About:
Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - Schneider Electric
154,51 €
SPECIFICATIONS
Main
Fluid connection type G 1/4A (male) conforming to DIN 3852-E
controlled fluid Air (-30…135 °C)
Fresh water (0…135 °C)
Hydraulic oil (-30…135 °C)
Gas (-30…135 °C)
Refrigeration fluid (-30…135 °C)
Type of packing Individual
pressure sensor name XMLP
pressure rating 400 bar
pressure sensor type Pressure transmitter
Complementary
length [l] 38.1 mm
local display Without
Product certifications RCM
EAC
cULus
CE
Product or component type Electronic pressure sensors
[uimp] rated impulse withstand voltage 0.5 kV
[us] rated supply voltage 24 V DC SELV (voltage limits: 12…33 V)
Analogue output function 0...10 V, 3-wire
Current consumption < 7 mA
diameter 26 mm
Quantity per set Set of 1
Drift of the sensitivity +/- 0.02 % of measuring range/°K
Drift of the zero point +/- 0.02 % of measuring range/°K
pressure setting range 0…400 bar
Destruction pressure 2400 bar
Electrical circuit type Control circuit
Net weight 0.094 kg
measurement accuracy +/- 0.5 % of the measuring range
Operating position Any position
mechanical durability 10000000 cycles
Materials in contact with fluid Stainless steel AISI 316L
Fluorocarbon FPM
electrical connection 1 male connector M12 4 pins
Maximum permissible accidental pressure 1200 bar
Resolution 0.1 % of the measuring range
Shock resistance 100 gn for 11 ms conforming to EN/IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Load short-circuit
Reverse polarity
Environment
Ambient air temp for storage/transportation -50…100 °C
ip degree of protection IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
IP69K conforming to EN/IEC 60529
Range of product Telemecanique Pressure sensors XM
ambient air temperature for operation -30…85 °C
electromagnetic compatibility Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 2 kV
Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact
1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 1 kV 42 Ohm
Immunity to magnetic fields conforming to EN/IEC 61000-4-8 100 A/m 50 Hz
Susceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...3000 MHz
Radiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.01...80 MHz
standards NSF ANSI 61
EN/IEC 61326-2-3
vibration resistance 20 gn (f = 15…2000 Hz) conforming to EN/IEC 60068-2-6
protective treatment TC
About this product

The XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 is developed to respond to the requirements of technical experts, such as system integrators, electrical fitters, support service firms, and OEMs. XMLP400BD71F offers superb excellence and utility for professionals in the electrical engineering industry. This Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 and other Pressure Sensors XM from Schneider Electric are on offer at the lowest cost and shipping time through BALTELEC online store, a dependable retailer assisting industry experts in their buying needs.

Consumers who have procured Schneider Electric Pressure Sensors XM have continuously appreciated the maker's sturdiness. It has been highlighted that the impressive competence of XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 extends to a spectrum of purposes. Its high-end specifications make it right choice for various requirements, securing success in your industrial, tertiary, and automation endeavors.

Our team focuses in fulfilling industrial and tertiary professionals’ needs. We grasp the individual expectations and anticipations of our clients in the sector. By partnering with our team, your organization receive access to the best rates and lead time of high-quality products like XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 from Schneider Electric at an attractive price. Our registered accounts take pleasure in additional savings and priority service.

Do not hesitate and purchase XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 at our well-established and accessible virtual storefront. Don't delay in making this astute move that ensures the supreme quality and covers the targeted criteria of clients like your company.

Should you have any inquiries or concerns about XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 or any other Schneider Electric products, connect with us or refer to our FAQ section section below. We have curated answers to habitual matters to support you further in making an smart decision about industrial and tertiary electrical components.

Remember, XMLP400BD71F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 from Schneider Electric is safe, thrifty, and premier to market challengers in the Pressure Sensors XM category. Make it a part of your infrastructure at once. Get at BaltElec, your respected merchant for all your professional electrical equipment and automation needs.

In our Baltelec.eu e-commerce store you will find Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 - XMLP400BD71F worth 152.02 €, which will be a safe and new solution for your demands. This article is produced by the Schneider Electric brand using the current technologies and follows the leading standards of security and efficacy. We give articles from the Pressure Sensors XM category that amalgamate lastingness and workability, which is an superb preference for various purposes. Independent of whether you need apparatus for small production or for specialized industrial purpose, Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 will be a trustworthy adjunct in your job.

Baltelec works to make the shopping process as simple and fast as practicable for our customers. We offer detailed reports and high-quality pictures of Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 so that you can make an informed choice. A team of connoisseurs is always ready to help you with any wonder in the Pressure Sensors XM section pertaining to the opting and use of products. We are persuaded that Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 0...10 V, M12, set of 1 will meet your criteria and become an vital element of your equipment for just 152.02 €.
