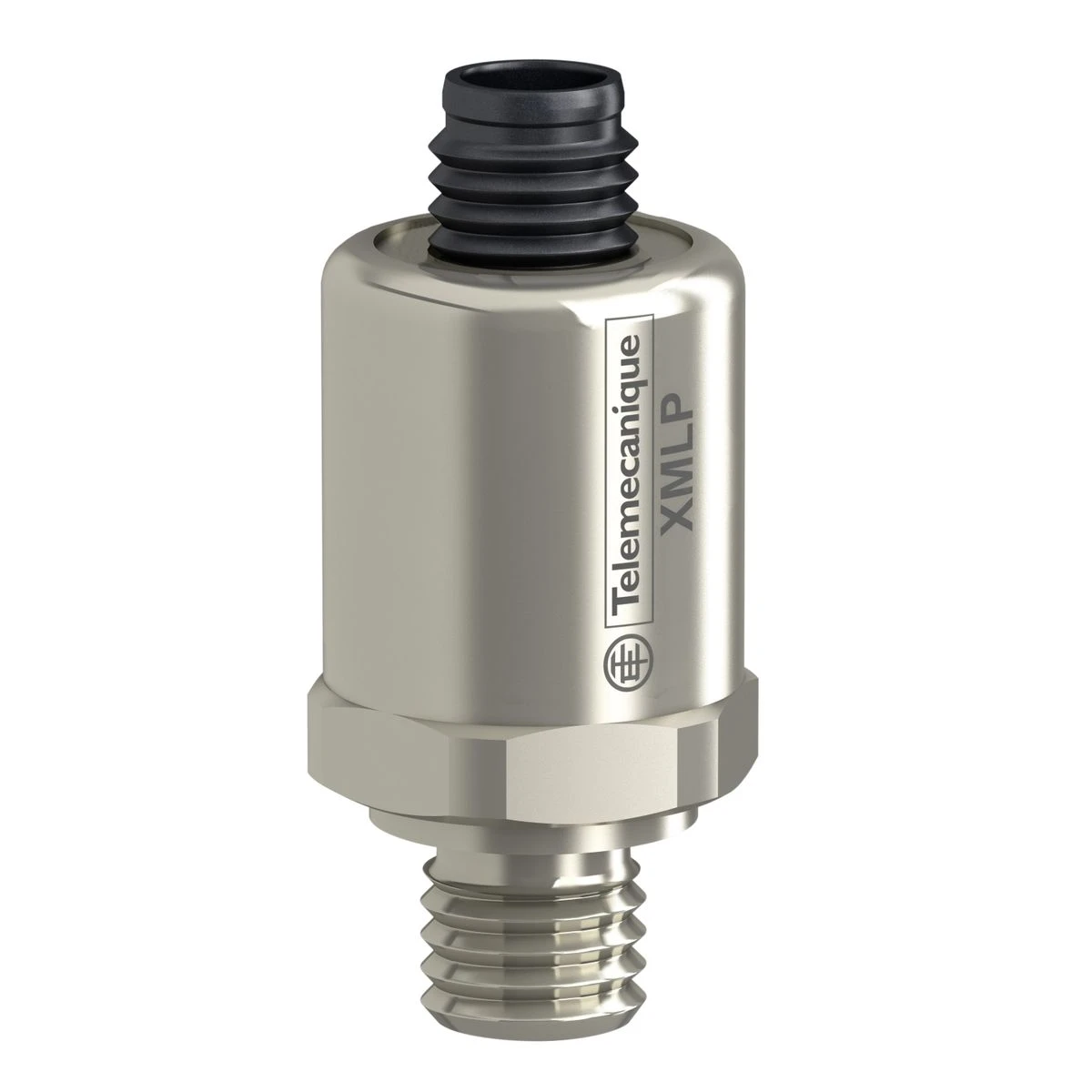

XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - Schneider Electric

Expected in 2-4 weeks
XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - Schneider Electric - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - Schneider Electric - 0
XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - Schneider Electric
125,17 € excl. VAT
155,21 € incl. VAT
Text About:
Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - Schneider Electric
155,21 €
SPECIFICATIONS
Main
Fluid connection type G 1/4A (male) conforming to DIN 3852-E
controlled fluid Air (-30…135 °C)
Fresh water (0…135 °C)
Hydraulic oil (-30…135 °C)
Gas (-30…135 °C)
Refrigeration fluid (-30…135 °C)
Type of packing Individual
pressure sensor name XMLP
pressure rating 400 bar
pressure sensor type Pressure transmitter
Complementary
length [l] 38.1 mm
local display Without
Product certifications cULus
CE
EAC
RCM
Product or component type Electronic pressure sensors
[uimp] rated impulse withstand voltage 0.5 kV
[us] rated supply voltage 12...24 V DC SELV (voltage limits: 7…33 V)
Analogue output function 4...20 mA, 2-wire
Current consumption < 23 mA
diameter 26 mm
Quantity per set Set of 1
Drift of the sensitivity +/- 0.02 % of measuring range/°K
Drift of the zero point +/- 0.02 % of measuring range/°K
pressure setting range 0…400 bar
Destruction pressure 2400 bar
Electrical circuit type Control circuit
Net weight 0.094 kg
measurement accuracy +/- 0.5 % of the measuring range
Operating position Any position
mechanical durability 10000000 cycles
Materials in contact with fluid Fluorocarbon FPM
Stainless steel AISI 316L
electrical connection 1 male connector M12 4 pins
Maximum permissible accidental pressure 1200 bar
Resolution 0.1 % of the measuring range
Shock resistance 100 gn for 11 ms conforming to EN/IEC 60068-2-27
Response time on output <= 2 ms 10...90 % of full scale
Type of output signal Analogue
Protection type Reverse polarity
Load short-circuit
Environment
Ambient air temp for storage/transportation -50…100 °C
ip degree of protection IP65 conforming to EN/IEC 60529
IP67 conforming to EN/IEC 60529
IP69K conforming to EN/IEC 60529
Range of product Telemecanique Pressure sensors XM
ambient air temperature for operation -30…85 °C
electromagnetic compatibility Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 8 kV air, 4 kV contact
1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 1 kV 42 Ohm
Immunity to magnetic fields conforming to EN/IEC 61000-4-8 100 A/m 50 Hz
Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 4 kV
Susceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 10 V/m 80...3000 MHz
Radiated RF fields conforming to EN/IEC 61000-4-6 10 V 0.01...80 MHz
standards EN/IEC 61326-2-3
NSF ANSI 61
vibration resistance 20 gn (f = 15…2000 Hz) conforming to EN/IEC 60068-2-6
protective treatment TC
About this product

The XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 is formulated to address the demands of professional purchasers, such as switchboard fabricators, electric engineers, support service firms, and Industry suppliers. XMLP400BD21F grants exceptional durability and profit for consultants in the automation and control industry. This Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 and other Pressure Sensors XM from Schneider Electric can be obtained at the optimal price and distribution time through BALTELEC, a credible supplier serving specialists in their buying needs.

Clients who have adopted Schneider Electric Pressure Sensors XM have commonly complimented the manufacturer’s soundness. It has been noted that the notable functionality of XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 extends to a assortment of applications. Its exceptional qualities make it great solution for different applications, promoting success in your industrial, tertiary, and automation efforts.

BaltElec focuses in meeting industrial and tertiary professionals’ needs. We grasp the particular demands and anticipations of our stakeholders in the industry. By collaborating with our specialists, your business receive access to the leading pricing and inventory of excellent products like XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 from Schneider Electric at a value-for-money price. Professional buyers with Baltelec account benefit from special savings and first-class attention.

Take action and procure XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 at our safe and accessible website. Don't delay in making this smart action that certifies the utmost quality and addresses the targeted specifications of traders like your firm.

If you encounter any uncertainties or concerns about XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 or any other Schneider Electric products, connect with us or refer to our Support section section below. We have gathered answers to frequent doubts to guide you further in making an smart decision about industrial and tertiary electrical components.

Remember, XMLP400BD21F - Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 from Schneider Electric is sure, inexpensive, and first-rate to its counterparts in the Pressure Sensors XM category. Don't hesitate to make it a part of your infrastructure instantly. Acquire at BALTELEC, your faithful dealer for all your Pressure Sensors XM.

In our Baltelec.eu electronic store you will detect Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 - XMLP400BD21F worth 152.71 €, which will be a safe and state-of-the-art solution for your necessities. This commodity is constructed by the Schneider Electric brand using the newest technologies and adheres to the highest standards of defense and workmanship. We deliver articles from the Pressure Sensors XM category that associate longevity and effectiveness, which is an first-rate selection for various uses. Regardless of whether you necessitate hardware for small generation or for skilled industrial application, Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 will be a faithful companion in your job.

Baltelec strives to make the obtaining process as accessible and fast as accomplishable for our patrons. We offer detailed explanations and high-quality illustrations of Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 so that you can make an educated choice. A team of maestros is always ready to help you with any wonder in the Pressure Sensors XM section associated to the selection and use of products. We are guaranteed that Electronic pressure sensors, Pressure sensors XM, transmitter, XMLP, 400 bar, G1/4 A male, 4...20 mA, M12, set of 1 will meet your standards and become an key element of your inventory for just 152.71 €.
